COMMERCIAL SYSTEMS ENGINEERING REFERENCE MANUAL: EMS3000CP
1. PRODUCT IDENTIFICATION

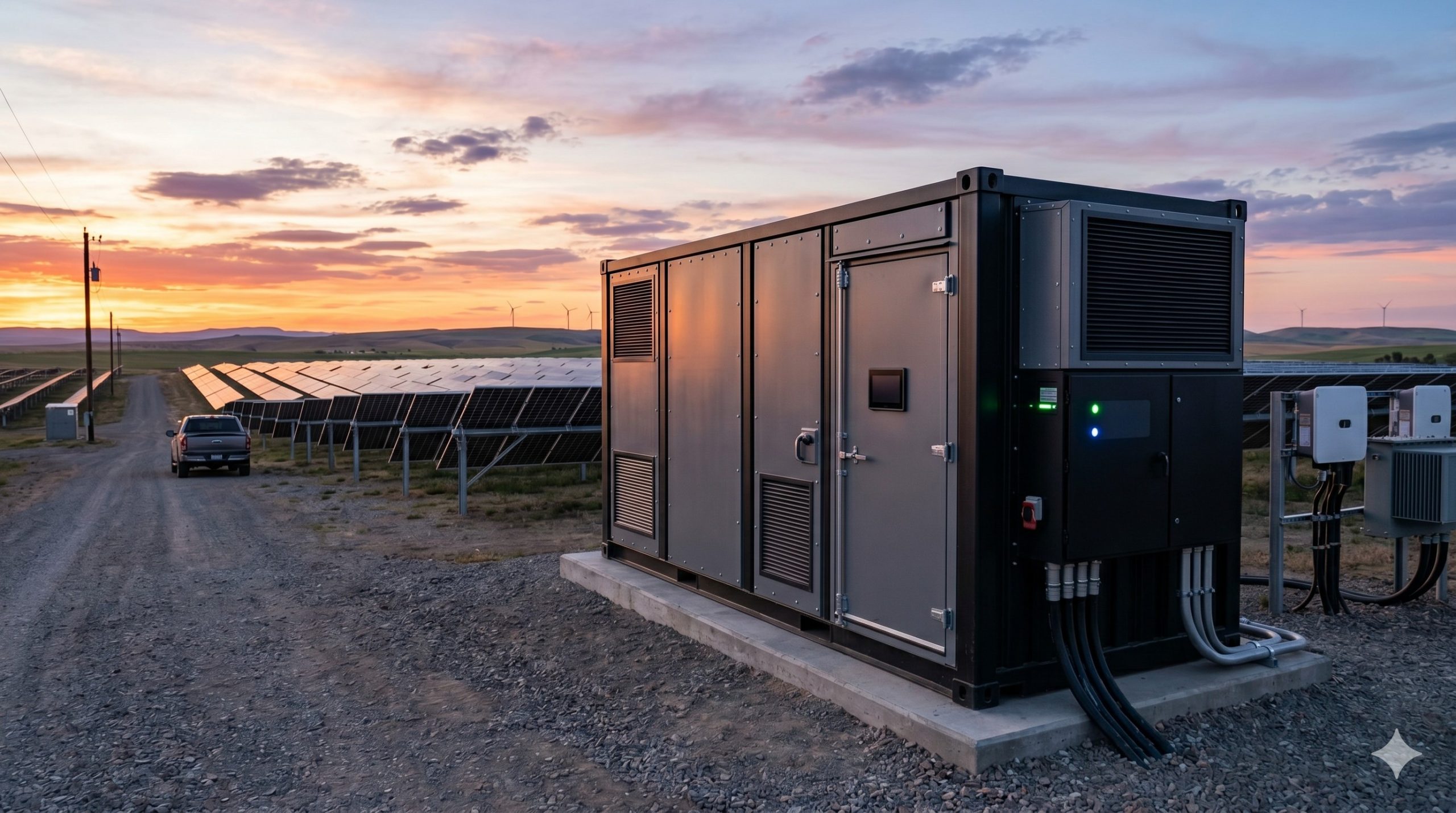

The EMS3000CP is a utility-grade, modular Commercial & Industrial (C&I) Energy Storage System engineered for high-cycle arbitrage, peak shaving, and backup power in demanding grid-tied and micro-grid environments. Designed for system integrators and facility engineers, this platform delivers Tier-1 LFP safety, liquid cooling precision, and a compact, outdoor-ready form factor.
2. INTERNAL BESS TOPOLOGY
The EMS3000CP utilizes a three-layer hierarchical architecture:
– DC Side: High-voltage battery rack with integrated Tier-1 LFP cells (up to 4000 cycles @ 90% DoD).
– Power Conversion: Bi-directional modular PCS (up to 100 kW per chassis) with seamless grid-forming capability.
– Control Layer: Embedded EMS with active cell balancing, SoC/SoH algorithms, and cloud-ready communications (Modbus TCP, CAN, IEC 61850).
3. THERMAL PROTECTION MECHANISMS

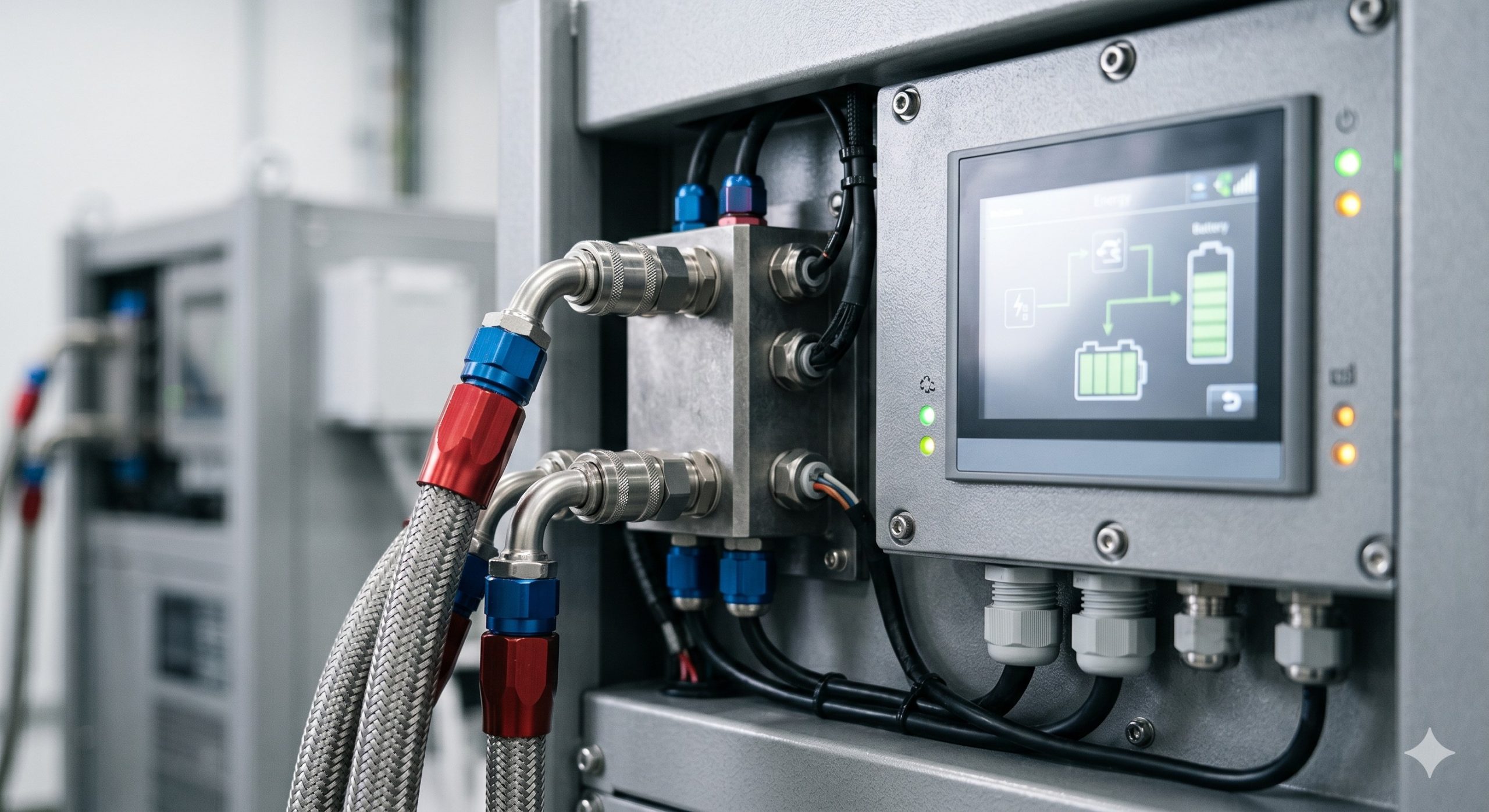

The integrated liquid cooling system maintains cell delta-T ≤ 3°C across all modules, enabling stable operation from -30°C to +55°C ambient. A multi-level thermal runaway suppression circuit (aerosol + gas detection) provides proactive fail-safe protection, compliant with NFPA 855.
4. OPERATIONAL ADVANTAGES
– Round-trip efficiency: ≥ 92% (DC/AC, at 0.5C).
– Response time: < 20 ms for islanding detection and seamless switchover.
- Parallel scalability: up to 10 cabinets (3.72 MWh) via shared DC busbar.
SPECIFICATION MATRIX
| Parameter | Specification |
|---|---|
| Nominal Capacity | 215 kWh / 372 kWh per cabinet (LFP) |
| Cooling Method | Smart Liquid Cooling (delta-T ≤ 3°C) |
| Cell Chemistry | Tier-1 LFP (LiFePO4) |
| Max System Voltage | 1500 V DC |
| Round-trip Efficiency | ≥ 92% (0.5C) |
| Operating Temp. Range | -30°C to +55°C (derated above 50°C) |
| Protection Rating | IP55 (cabinet), IP20 (internal racks) |
| Safety Certifications | UL 9540, IEC 62619, UN 38.3 |
5. REGULATORY COMPLIANCE
Fully certified to UL 9540, UL 1973, IEC 62619, IEC 62477, and CE / UN 38.3 for transport. The EMS3000CP includes cyber-secure remote monitoring via encrypted cloud gateway (GDPR & NERC CIP ready).
DEPLOYMENT & COMMISSIONING NOTES
– Outdoor IP55 / NEMA 3R enclosure.
– On-board surge protection (Type I & II).
– Recommended 1m front clearance for service access.
– Standard 3-year full warranty, extendable to 10 years on throughput (up to 8 MWh per rack).
