Introduction: The Commercial Energy Storage Imperative
For C&I facility managers and energy procurement officers, rising grid demand charges and volatile energy markets demand a robust, scalable buffer. The ST10030kWh-2500kW-MV-4h represents a new class of commercial energy storage system (C&I BESS) designed for medium-voltage (MV) interconnection. With a total usable capacity of 10.03 MWh and a continuous power rating of 2.5 MW over 4 hours, this liquid-cooled LFP battery solution delivers peak shaving ROI, emergency backup, and grid ancillary services. This B2B sourcing guide analyzes its core architecture, compliance certifications (IEC 62619, UL 9540, CE, UN38.3), and total cost of ownership (TCO) for industrial parks, EV supercharging hubs, and micro-grids.
Core Architecture & Battery Management System (BMS)
LFP Chemistry and Cycle Life
The ST10030kWh-2500kW-MV-4h integrates Tier-1 prismatic LFP cells, providing a nominal voltage of 1500 V DC. At 90% Depth of Discharge (DoD), the system delivers >8,000 cycles to 70% State of Health (SOH), with a round-trip efficiency (RTE) of 94.5% under standard 0.25C operation. The cell-level safety compliance includes passing nail penetration and overcharge tests per UL 9540A.
Intelligent Battery Management & Liquid Cooling
The decentralized BMS monitors each cell for voltage (±1 mV), temperature (±0.5°C), and current, enabling passive balancing. The active liquid cooling system maintains pack temperature differential < 3°C, extending cycle life by 15-20% compared to forced air cooling. Integrated fire suppression (aerosol and gas-based, NFPA 855 compliant) and DC circuit breakers ensure multi-layer thermal runaway protection.
Technical Specifications
Below is the verified specification ledger for the ST10030kWh-2500kW-MV-4h system, critical for engineering procurement and grid compliance audits.
| Key Parameter | Technical Specification |
|---|---|
| System Capacity (Usable) | 10.03 MWh (10030 kWh) |
| System Power (Rated) | 2.5 MW (2500 kW AC) |
| Duration @ Rated Power | 4 hours (0.25C) |
| Battery Chemistry | Tier-1 LFP (Lithium Iron Phosphate) |
| Nominal Voltage (DC) | 1500 V |
| Cycle Life | >8,000 cycles @ 90% DoD, EOL 70% SOH |
| Round-Trip Efficiency (RTE) | 94.5% (AC-AC, 25°C, 0.25C) |
| Thermal Management | Active Liquid Cooling (ΔT < 3°C) |
| Safety Certifications | IEC 62619, UL 9540A, CE, UN38.3 |
| Fire Suppression | Aerosol + Gas, NFPA 855 compliant |
| Protection Rating | IP55 (outdoor container) |
| Operating Temperature | -30°C to +50°C (derated >45°C) |
| Grid Interface | MV Transformer + PCS (grid-forming, LVRT) |
| EMS Communication | Modbus TCP, IEC 61850, VPP ready |
Commercial ROI, LCOE, and Grid Support
Peak Shaving & Demand Charge Reduction
For industrial facilities with demand charges >$15/kW, the 2.5 MW discharge capacity eliminates peak loads during 4-hour evening windows. Using a discharge depth of 90%, the system reduces peak demand by up to 2.25 MW. With a typical CapEx of $450/kWh (dependent on BESS wholesale volume), the Levelized Cost of Storage (LCOS) ranges between $0.07-$0.09/kWh, undercutting most commercial grid tariffs.
Demand Response & VPP Readiness
The integrated Power Conversion System (PCS) supports grid-forming and grid-following modes with a response time < 40ms. The ST10030kWh-2500kW-MV-4h is Virtual Power Plant (VPP) ready, capable of frequency regulation (FCR) and reactive power control (PF ±0.8). Participating in ISO/RTO programs (e.g., CAISO, PJM) can generate $100-$200/kW-year in ancillary service revenue.
Deployment Scenarios

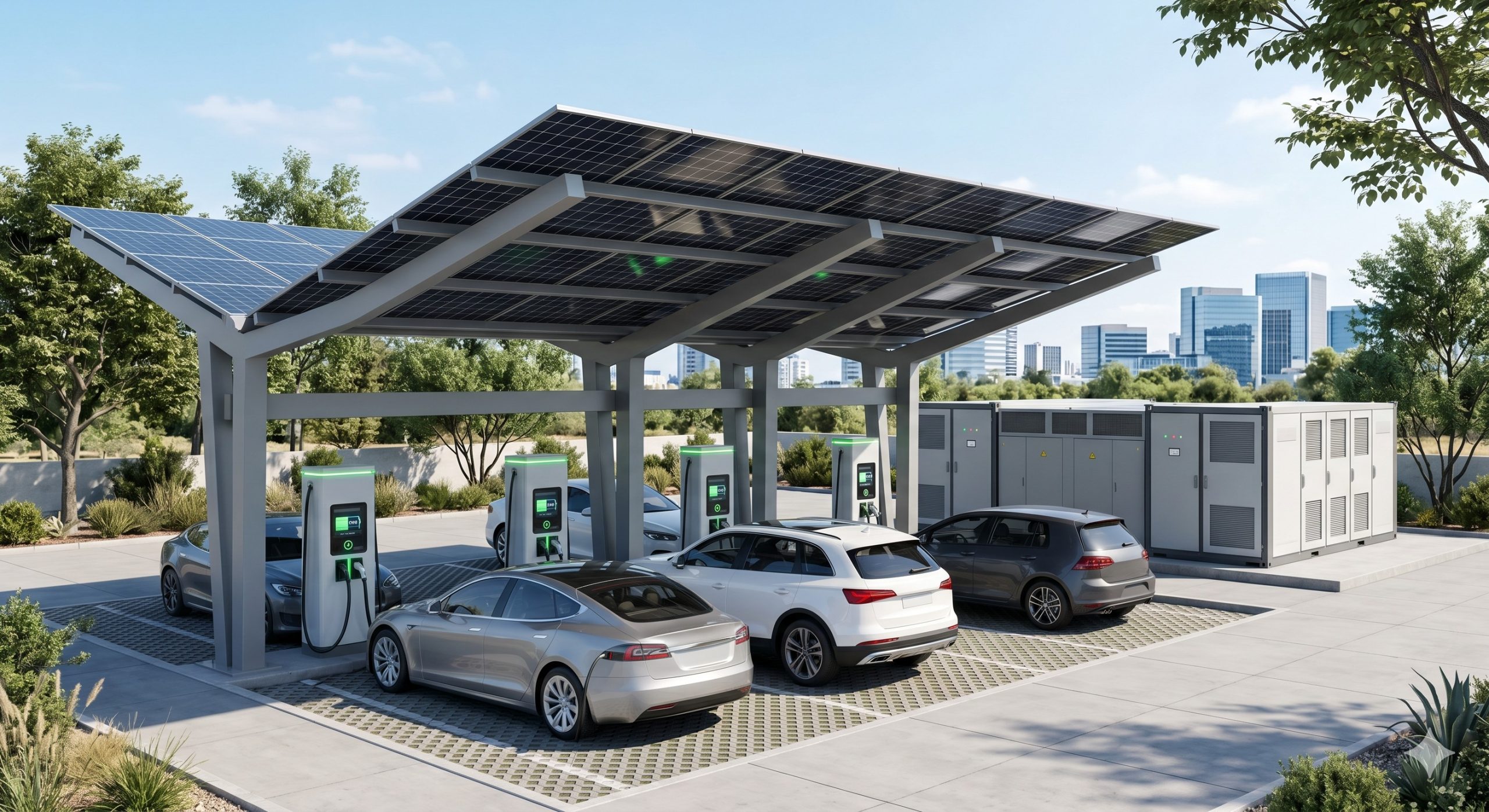

Optimized for three primary C&I segments: 1) Automotive EV Supercharging stations requiring 2-4 MW for buffer storage. 2) Food & beverage industrial parks with 1,000-2,500 kVA transformer capacity. 3) Island micro-grids replacing diesel gen-sets. The containerized IP55 design allows outdoor ground or roof mounting with operational temperatures from -30°C to +50°C (derated above 45°C).
Conclusion: Strategic Procurement Next Steps
The ST10030kWh-2500kW-MV-4h delivers a compelling mix of high-density LFP chemistry, liquid-thermal stability, and grid-interactive intelligence. For B2B buyers, verifying IEC 62619 and UL 9540 field certifications, requesting factory acceptance test (FAT) data for >8,000 cycles, and calculating 10-year TCO under local peak tariff structures are essential. This system provides a future-proof bridge to zero-carbon C&I operations while unlocking demand response and VPP revenue streams.
