Introduction: The C&I Energy Storage Imperative
As commercial and industrial (C&I) facilities face volatile grid pricing and decarbonization mandates, the need for scalable, high-cyclical energy storage has never been more acute. The ST835CS-4HPowerStack represents a paradigm shift in modular BESS architecture, combining high-density LFP chemistry, liquid thermal regulation, and smart EMS into a single turnkey cabinet. This technical blueprint dissects its MWh-scale deployment capabilities, focusing on capacity sizing, round-trip efficiency, and grid-support readiness for industrial parks and EV supercharging hubs.
Core Engineering Architecture: Liquid-Cooled PCS Integration
Unlike air-cooled alternatives that struggle with thermal uniformity, the ST835CS-4HPowerStack employs a closed-loop liquid cooling system maintaining cell温差 ≤3°C. This directly enhances cycle life and enables sustained C-rate performance. The integrated bi-directional PCS (Power Conversion System) supports grid-tied and off-grid transitions with < 20 ms seamless switching, critical for sensitive manufacturing loads.
BMS & Safety Compliance
The 3-tier Battery Management System (BMS) performs cell-level voltage/temperature balancing, passive/active balancing, and real-time insulation monitoring. Safety certifications include IEC 62619 (industrial storage), UL 9540 (system-level), CE, and UN38.3 (transportation). Multi-stage fire suppression (aerosol + gas) is integrated per NFPA 855 guidelines.
Technical Specifications
| Key Parameter | Technical Specification |
|---|---|
| Battery Chemistry | Tier-1 LFP (Lithium Iron Phosphate) |
| Usable Energy (kWh) | 215 kWh per cabinet (scalable in parallel) |
| Nominal Voltage (V) | 768 V DC |
| Cycle Life | >8000 cycles @ 90% DoD, 70% EOL SOH |
| Round-trip Efficiency (DC/AC) | ≥90% @ 0.5C, 25°C |
| Cooling System | Liquid cooling (cells ΔT ≤3°C) |
| Safety Certifications | IEC 62619, UL 9540, CE, UN38.3 |
| Grid Support Modes | Peak shaving, frequency regulation, VPP-ready (OpenADR) |
Commercial ROI & Grid Support Capabilities
For peak shaving applications, the ST835CS-4HPowerStack delivers a ≥90% round-trip efficiency (DC/AC), translating to 10% lower energy loss per cycle than industry average. Depth of Discharge (DoD) is rated at 90% with >8000 cycles (to 70% SOH), enabling a 15+ year operational lifespan. In demand response (DR) mode, the EMS supports ISO 15118 and OpenADR 2.0b protocols, allowing real-time load curtailment or frequency regulation (FCR-D, TERTIARY). A typical 1 MWh deployment can reduce peak demand charges by $18k–$25k annually depending on utility tariff structures.
Deployment Scenarios: From Industrial Parks to VPP Nodes

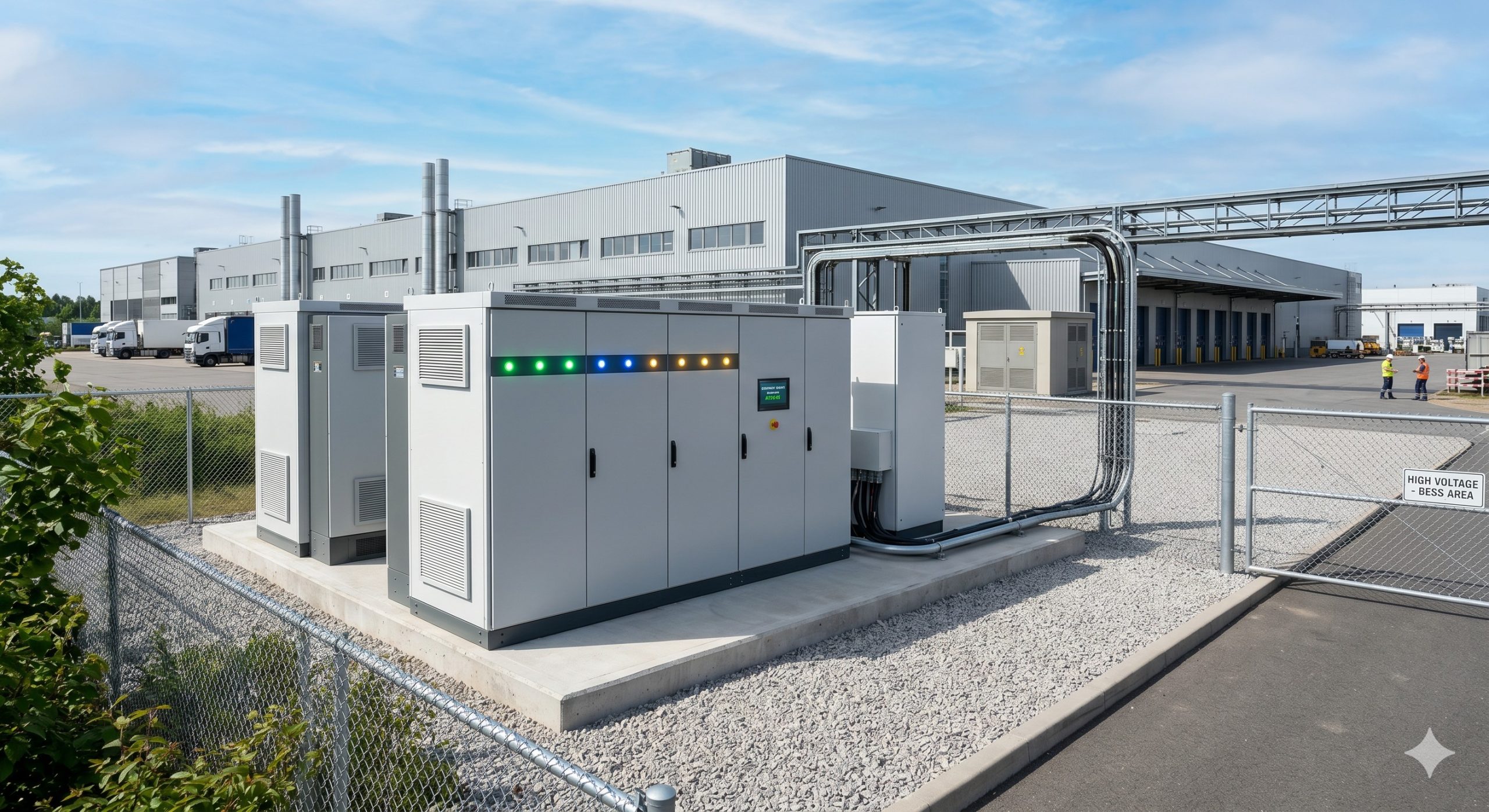

The modular cabinet design allows parallel expansion up to 10 MWh+ via external busbars, ideal for phased investments. Key deployment archetypes include:
- Industrial micro-grids: Pair with 500 kWp–2 MWp solar PV for 70-80% renewable self-consumption.

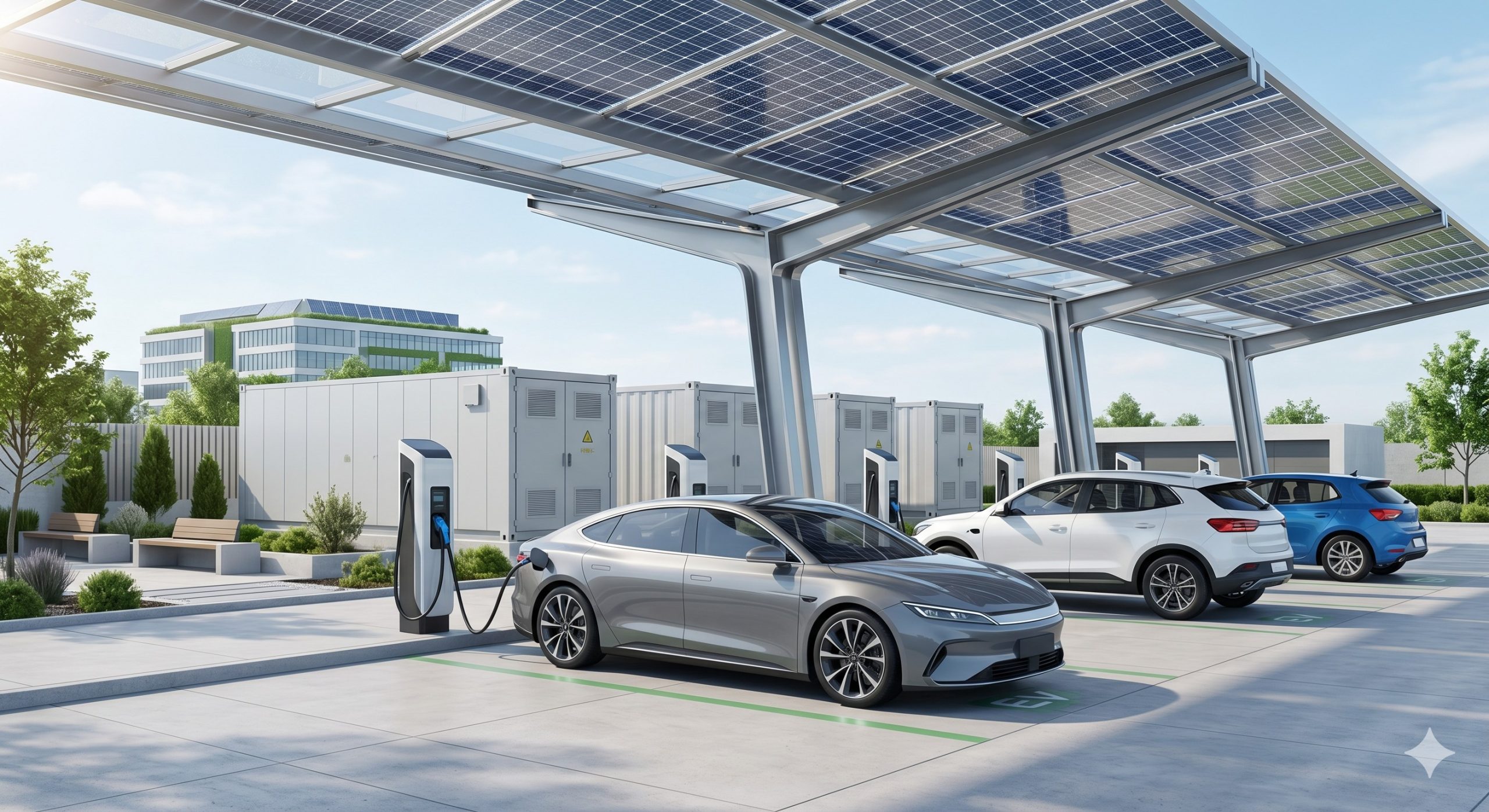

- EV supercharging stations: Buffer 350 kW chargers, avoiding demand spikes and reducing transformer upgrades.
- Virtual Power Plants (VPP): Aggregated units provide grid frequency regulation and capacity market services.
Turnkey delivery includes civil design, grid interconnection study, and remote monitoring via 4G/5G gateway.
Conclusion: Strategic Procurement Verdict
The ST835CS-4HPowerStack is engineered for B2B buyers prioritizing safety, long cycle life, and open-protocol grid integration. Its liquid cooling, Tier-1 LFP cells, and UL/IEC certifications reduce insurance and permitting friction. For C&I facilities targeting sub-4-year payback on peak shaving or demand charge management, this system offers a future-proofed, MWh-scale blueprint.
