EXECUTIVE SUMMARY
The Industrial Battery Storage AS/NZS Compliance Sheet represents a definitive engineering and regulatory reference for deploying Tier-1 commercial and industrial (C&I) battery energy storage systems (BESS) within Australian and New Zealand markets. This document consolidates the critical safety, performance, and grid-interconnection criteria mandated by AS/NZS 5139, AS/NZS 4777.2, and AS/NZS 3000, providing procurement teams, EPC contractors, and facility managers with a single-source compliance validation framework for cabinetized lithium iron phosphate (LFP) platforms. The solution architecture is engineered to satisfy the rigorous fault-ride-through, anti-islanding, and thermal runaway propagation requirements demanded by Australian network service providers (DNSPs).
SYSTEM ARCHITECTURE & SAFETY

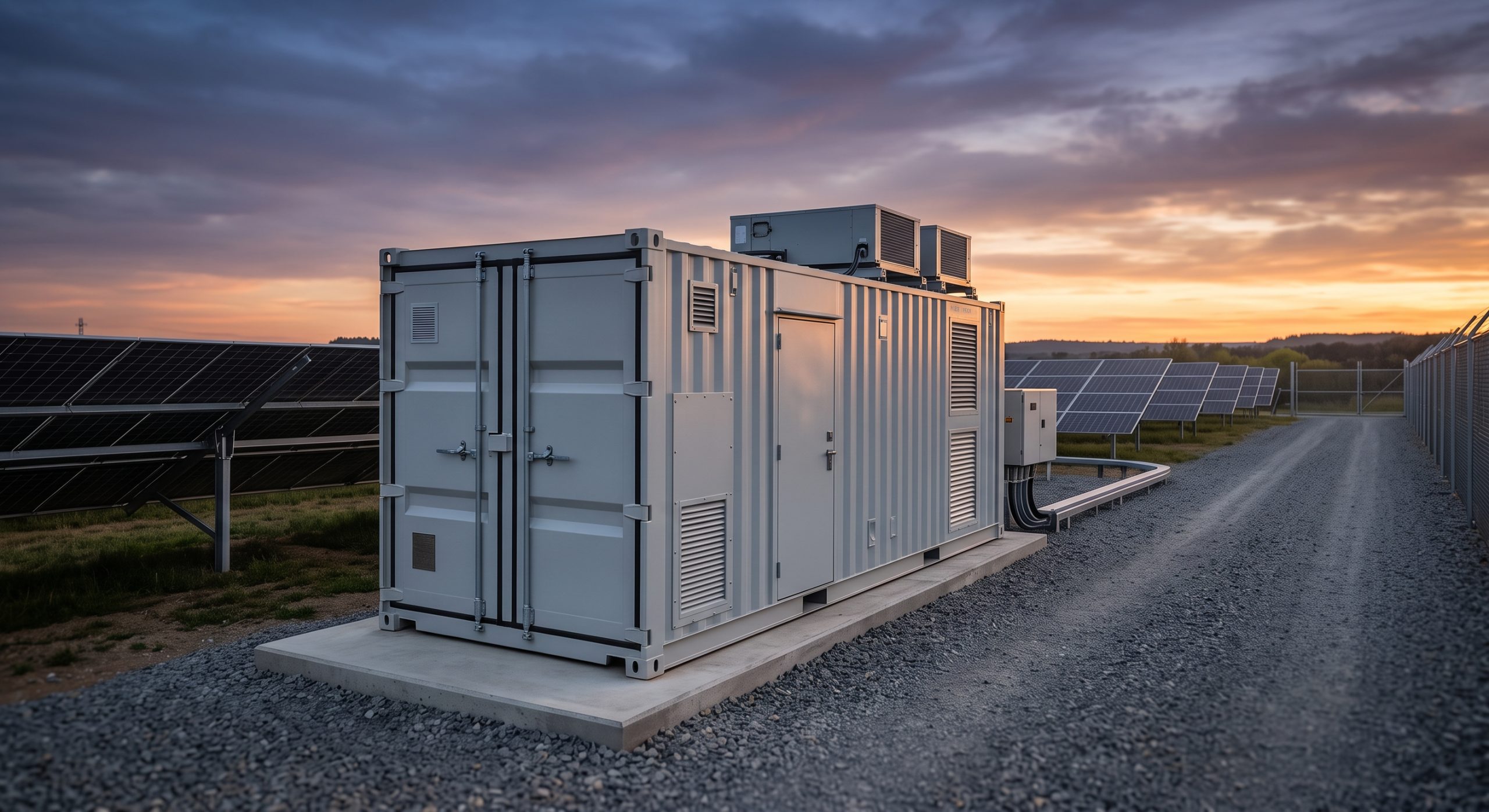

The BESS platform integrates a high-voltage DC battery cabinet, a bi-directional power conversion system (PCS), and an intelligent energy management system (EMS) within a unified outdoor-rated enclosure. The architecture prioritizes cell-level isolation and multi-layer defense against thermal events. The AS/NZS compliance framework specifically addresses the following structural and electrical safety layers:
– Electrical Safety: Compliance with AS/NZS 3000 wiring rules, including residual current monitoring (RCM) and DC isolation fault detection.
– Grid Protection: Certified anti-islanding protection per AS/NZS 4777.2, with programmable voltage and frequency ride-through curves.
– Fire Safety: Integrated aerosol-based fire suppression and deflagration venting tested to AS/NZS 5139 Appendix B criteria.

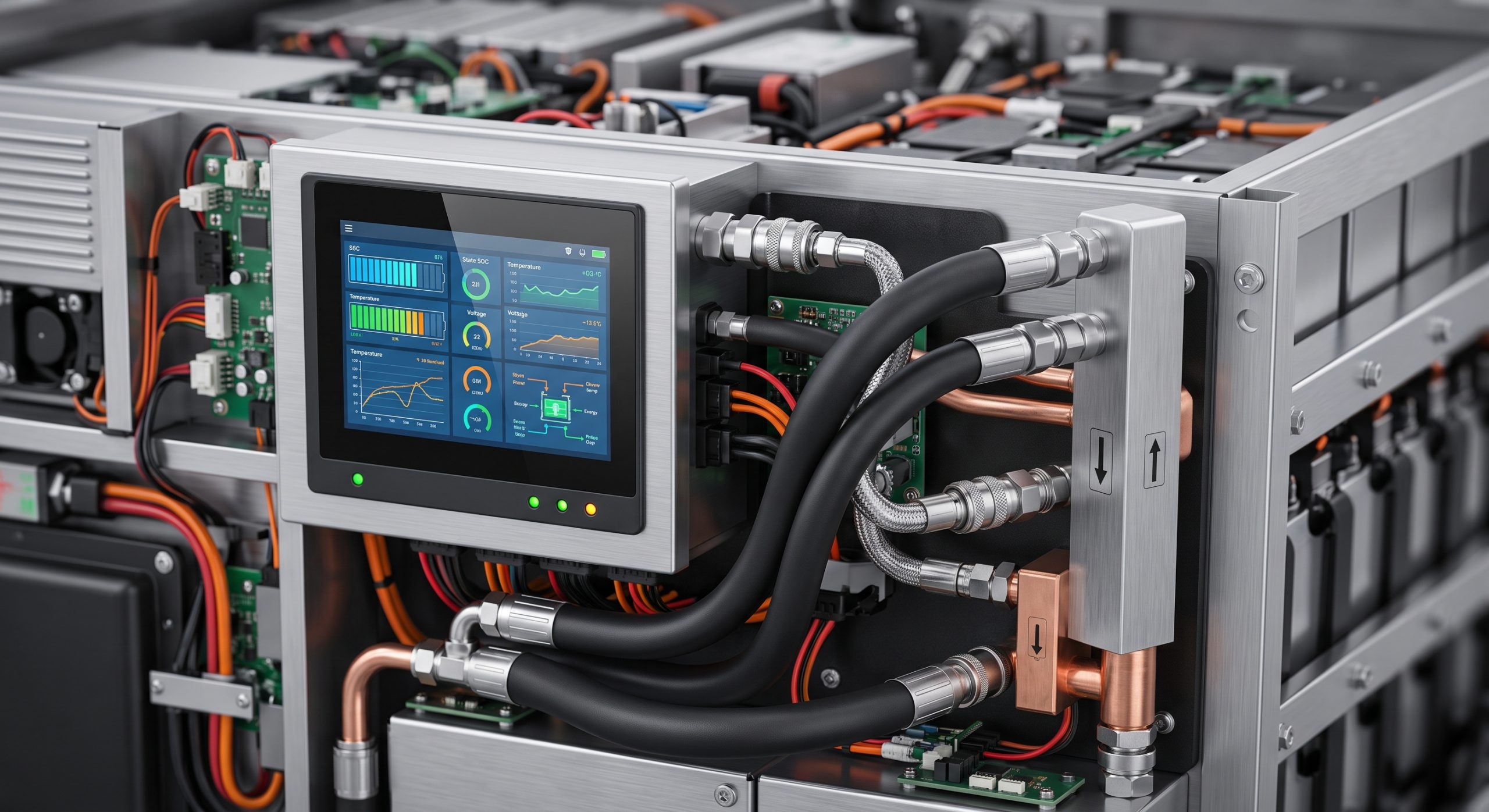

– Thermal Management: Liquid cooling with coolant loop leak detection and automatic shutdown protocols.
KEY FEATURES
– AS/NZS 5139 Certified: Full compliance with the Australian/New Zealand standard for battery energy storage systems in electrical installations.
– Grid Code Conformance: Pre-configured with AS/NZS 4777.2 compliant grid support functions, including volt-watt and volt-var response.
– Tier-1 LFP Chemistry: Utilization of prismatic LFP cells with UL 9540A fire propagation test data available for DNSP submission.
– Integrated DC Isolator: Externally accessible, lockable DC isolator rated for AS/NZS 60947.3 utilization category.
– Smart EMS with DNSP Interface: Modbus TCP and DNP3 protocols for seamless integration with Australian utility SCADA systems.
– IP66 Outdoor Enclosure: Corrosion-resistant C5-M coating suitable for coastal and inland industrial environments.
– Remote Firmware Compliance Updates: Over-the-air updates to maintain alignment with evolving AS/NZS grid codes.
COMPLIANCE & STANDARDS
The Industrial Battery Storage AS/NZS Compliance Sheet serves as a declaration of conformity for the following regulatory instruments:
– AS/NZS 5139:2019 – Electrical installations – Safety of battery systems for use with power conversion equipment.
– AS/NZS 4777.2:2020 – Grid connection of energy systems via inverters – Part 2: Inverter requirements.
– AS/NZS 3000:2018 – Electrical installations (known as the Australian/New Zealand Wiring Rules).
– AS/NZS 60950.1 – Safety of information technology equipment (for EMS components).
– AS/NZS 61439.1 – Low-voltage switchgear and controlgear assemblies.
– Clean Energy Council (CEC) Approved: Listed on the CEC Approved Battery List for Australian installations.
– DNSP Pre-Approval: Compliance documentation templates prepared for Energex, AusNet, SA Power Networks, and Vector (NZ).
TECHNICAL SPECIFICATIONS
The following specification matrix details the core parameters of a standard AS/NZS compliant industrial BESS cabinet. All parameters are verified against the referenced standards.
| Parameter | Specification |
|---|---|
| Nominal Capacity | 215 kWh / 372 kWh per cabinet |
| Cooling Method | Smart Liquid Cooling |
| Cell Chemistry | Tier-1 LFP (Lithium Iron Phosphate) |
| DC Voltage Range | 600 Vdc to 1500 Vdc |
| AC Output Voltage | 400 Vac, 3-phase + N + PE |
| Grid Compliance | AS/NZS 4777.2:2020 |
| Safety Standard | AS/NZS 5139:2019 |
| Ingress Protection | IP66 (Outdoor Rated) |
| Operating Temperature | -20°C to +50°C (derated above +45°C) |
| Fire Suppression | Aerosol + Deflagration Venting (AS/NZS 5139 Appendix B) |
| Communication Protocols | Modbus TCP, DNP3, IEC 61850 |
| Certification Body | Clean Energy Council (CEC) Approved |
| Warranty | 10 Years Performance / 5 Years Product |
INDUSTRIAL DEPLOYMENT
Deployment of the AS/NZS compliant BESS is optimized for commercial and industrial facilities seeking to reduce demand charges, participate in FCAS markets, or provide backup power. Typical installation scenarios include:
– Manufacturing Plants: Peak shaving and power quality correction in high-load welding and motor-driven environments.
– Cold Storage Facilities: Backup power for refrigeration systems during grid outages, compliant with AS/NZS 5139 emergency power provisions.
– Mining Sites: Off-grid or hybrid microgrid integration with diesel generation, adhering to AS/NZS 4777.2 islanding requirements.
– Commercial Buildings: Demand response aggregation and participation in the Wholesale Demand Response Mechanism (WDRM).
All installations must be performed by CEC-accredited installers, and the final as-built configuration must be validated by a licensed electrical inspector to achieve AS/NZS 5139 sign-off.
