Overview
For B2B energy storage system (BESS) buyers and plant engineers, the visual inspection of battery cells before assembly is a critical quality gate that directly impacts long-term performance, safety, and warranty validity. This FAQ provides definitive, technical answers to the most common pre-sales and post-sales questions regarding cell inspection protocols, ensuring your project meets Tier-1 standards and mitigates risks like thermal runaway or premature degradation.
Frequently Asked Questions
- Q1: What is the mandatory visual inspection protocol for LFP battery cells before BESS assembly?

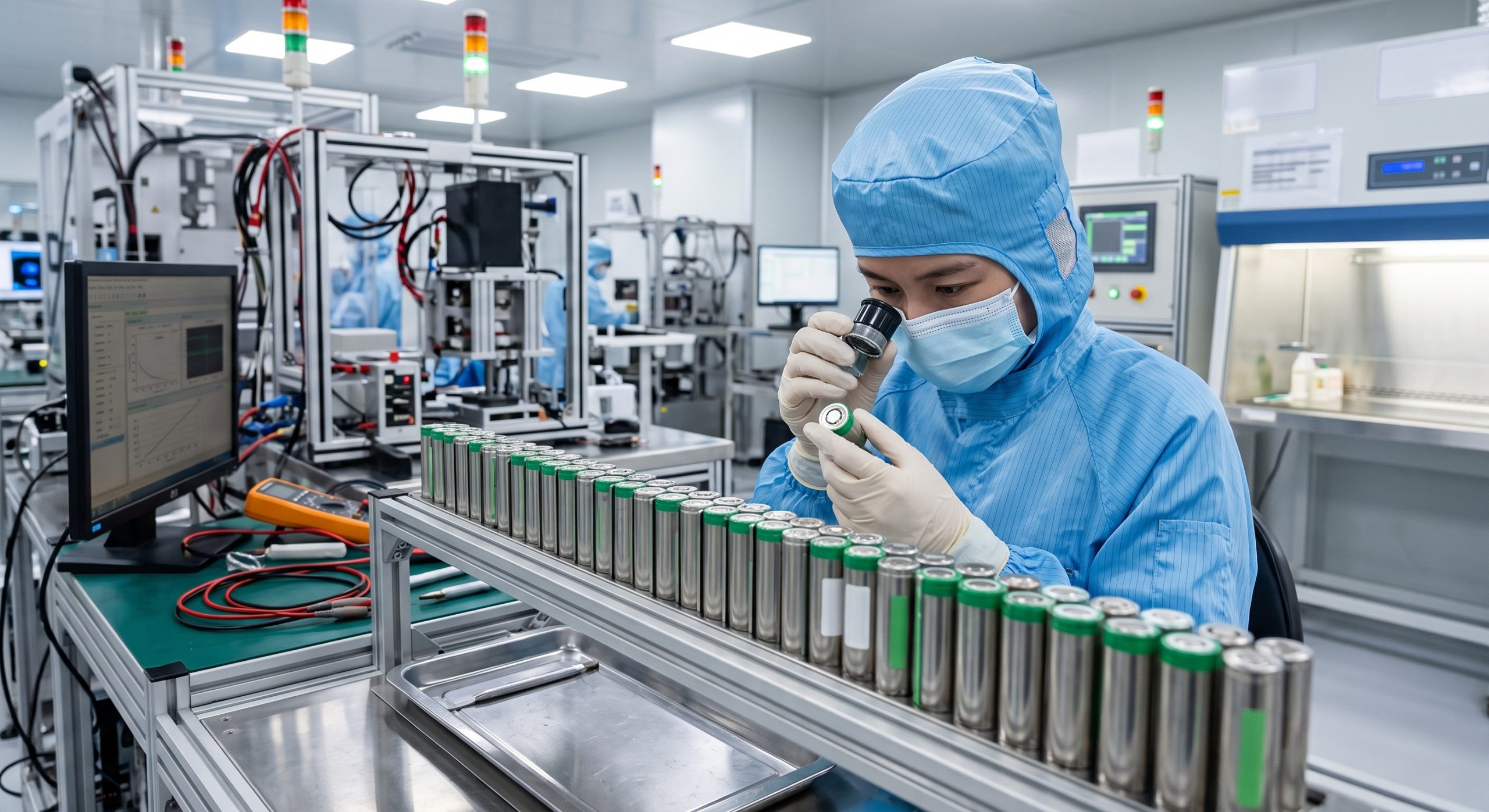

- The mandatory protocol requires a 100% visual inspection of each cell for mechanical defects, including terminal deformation, electrolyte leakage, and pouch or can corrosion. This inspection must be performed under 500+ lux lighting and documented with high-resolution imagery for traceability, ensuring compliance with IEC 62619 standards.
- Q2: How can inspectors identify microscopic terminal passivation or corrosion before assembly?
- Inspectors identify terminal passivation by using a 10x magnifying loupe to check for discoloration or white oxidation spots, which indicate aluminum or copper corrosion. Additionally, a simple contact resistance test with a milliohmmeter verifies that the terminal contact surface is free from insulating layers, a critical pre-assembly step.
- Q3: What are the standard visual acceptance criteria for cell terminal torque and alignment?
- The standard acceptance criteria mandate that all cell terminals exhibit uniform alignment without visible tilt or offset, and that the threaded area is free from burrs or cross-threading. While torque is a mechanical check, visual confirmation of the terminal surface finish and lubricant presence is a key pre-assembly indicator.
- Q4: Why is a busbar and interconnect board visual check critical after cell installation?
- This check is critical to confirm that busbars are seated flat against the cell terminals and that all interconnect boards are free from cracks, solder splashes, or foreign object debris (FOD). A visual mismatch here can lead to high-resistance joints, causing localized heating and potential thermal runaway during high C-rate operation.
- Q5: How does visual inspection integrate with BMS calibration and inter-cell balancing protocols?
- Visual inspection ensures that all voltage sense wires and temperature sensors are correctly routed and securely crimped before BMS calibration. This pre-assembly step prevents misreads that could skew the BMS’s cell-balancing algorithm, which is essential for maintaining state-of-charge (SoC) accuracy within ±3%.
- Q6: What fire safety and thermal runaway prevention checks are visual during cell assembly?
- The visual fire safety check requires confirming that all thermal barriers, such as mica sheets or ceramic pads, are correctly positioned between cells and that the gas detection sensor ports are unobstructed. Inspectors also verify the integrity of the cell venting mechanism, ensuring it is not blocked or deformed, which is vital for early smoke detection.
- Q7: How do pre-assembly visual protocols affect the overall LCOE and 10-year performance guarantee?
- Adhering to these visual protocols directly reduces the risk of infant mortality failures and capacity degradation, thereby guaranteeing the projected cycle life of 6,000 cycles at 80% DoD. This due diligence ensures the 10-year performance guarantee is enforceable, as any visual defect missed at assembly is excluded from warranty claims, lowering the Levelized Cost of Energy (LCOE).
