TURNKEY C&I ENERGY STORAGE SOLUTION BRIEF: DEPLOYING ST510CS-4H-CNPowerStack
EXECUTIVE SUMMARY
The ST510CS-4H-CNPowerStack represents a paradigm shift in commercial and industrial (C&I) behind-the-meter energy storage. Engineered by a Tier-1 global energy storage vendor, this turnkey AC-coupled solution integrates high-density LFP battery racks, a bi-directional 100kW Power Conditioning System (PCS), and an intelligent Liquid Cooling Thermal Management System within a single, pad-mountable outdoor enclosure. Designed for peak shaving, demand charge reduction, and backup power applications, the ST510CS-4H-CNPowerStack delivers a usable energy capacity of 215kWh (expandable to 1MWh+ via parallel stacks) at a nominal 768V DC bus voltage, achieving an industry-leading round-trip efficiency of 92.5% (DC/AC, at nominal operating point).
SYSTEM ARCHITECTURE & SAFETY
The ST510CS-4H-CNPowerStack employs a modular, cell-to-rack-to-stack architecture. Each cabinet houses four independent LFP battery racks (54kWh each) with individual rack-level Battery Management Systems (BMS) communicating with a master BMS and the EMS. The 100kW PCS (supports 150kW peak for 10s) is co-located in a separate, fire-rated compartment. The IP55-rated chassis, constructed from heavy-gauge zinc-magnesium alloy steel, is designed for extreme outdoor conditions (-20°C to 55°C ambient). Safety is hierarchical: cell-level fuse, module-level isolation, rack-level contactor, and a multi-layered fire suppression system (aerosol + optional water mist interface) certified to NFPA 855 and UL 9540A thermal runaway test protocols.
KEY FEATURES
– High-Density LFP Integration: Tier-1 prismatic LFP cells with 6,000+ cycles at 80% DoD, 25°C, C/2 rate.

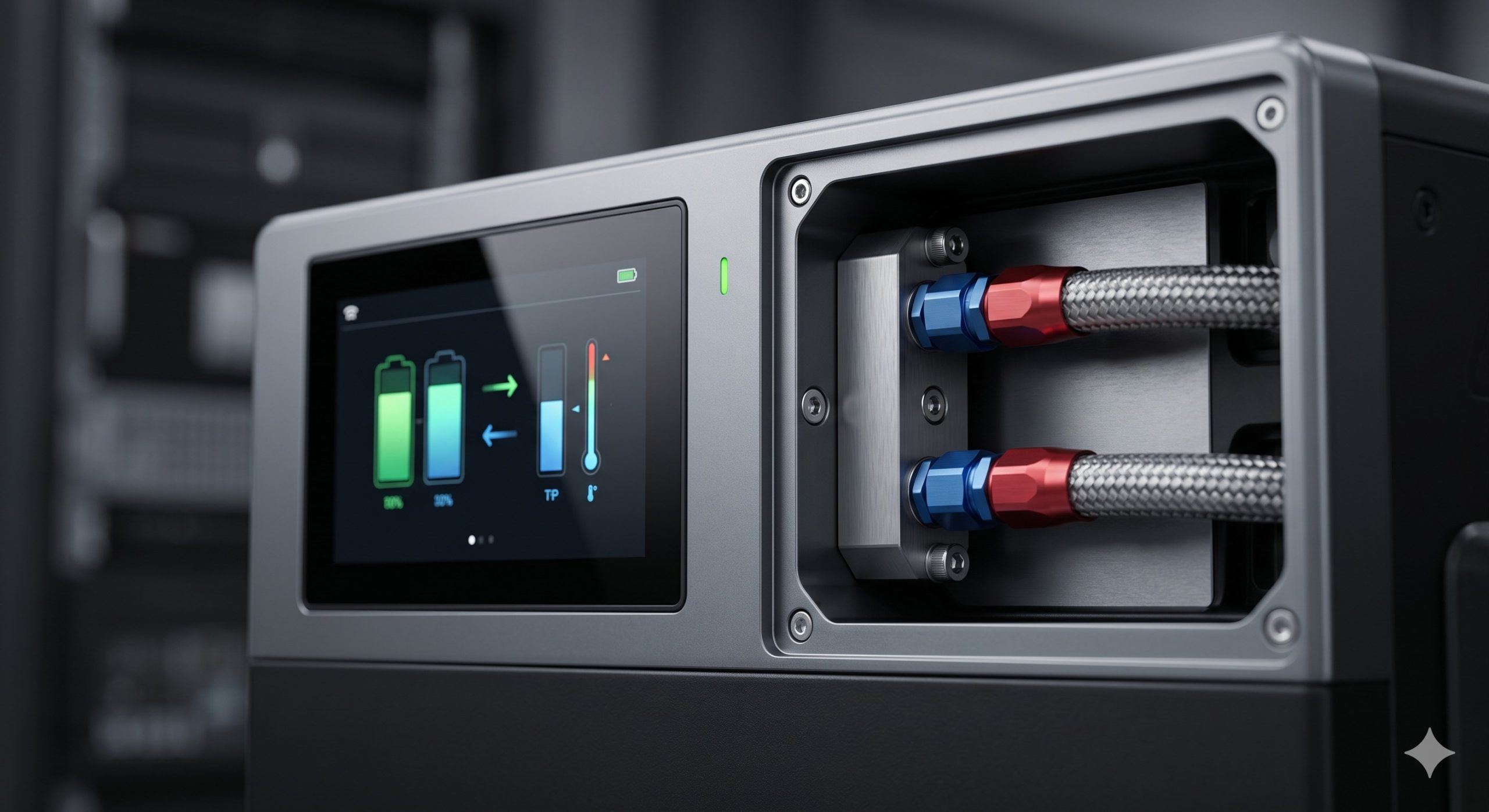

– Smart Liquid Cooling: Maintains cell delta-T below 2.5°C across all racks, boosting cycle life by 15% compared to air-cooled systems.
– Grid-Forming & Grid-Following: Seamless transition between on-grid peak shaving and off-grid islanding (<20ms switch time, with external STS).
- Cloud-to-Edge EMS: Native support for Modbus TCP, IEC 61850, and OCPP. Real-time remote firmware upgrades and predictive diagnostics.
- Low Auxiliary Power: Liquid cooling pump + control electronics draw <300W during idle (standby mode).
COMPLIANCE & STANDARDS
The ST510CS-4H-CNPowerStack is fully certified for global markets, with focus on CN (Chinese) and international requirements:
- Electrical Safety: IEC 62619 (secondary batteries), IEC 62477-1 (PCS safety).
- Grid Interconnection: GB/T 34120, GB/T 34133 (China), VDE-AR-N 4105 (optional).
- Fire & Thermal Runaway: UL 9540A (cell/module/unit level), NFPA 855 compliant design.
- Environmental: IP55 (enclosure), IK10 (impact rating for front face), C5 corrosion protection (optional).
- Transportation: UN 38.3, ADR/RID.
TECHNICAL SPECIFICATIONS
| Parameter | Specification |
|---|---|
| Nominal Battery Energy (AC-useful) | 215 kWh (at 1C, 25°C, EoL 80% SoH) |
| Nominal DC Voltage | 768 V (range 600V ~ 876V) |
| Usable Capacity (DoD) | 100% (system allows up to 100% DoD, recommended 95% for cycle life optimization) |
| AC Power (Continuous / Peak) | 100 kW / 150 kW (10s) |
| AC Output (Grid-Connected) | 380V / 400V / 480V (selectable), 3W + N + PE, 50/60Hz ±2.5Hz |
| Max AC Current (Rated) | 152 A (480V) / 190 A (380V) |
| Round-Trip Efficiency (DC/AC) | ≥ 92.5% @ rated power, 25°C |
| Cooling Method | Active liquid cooling (Ethylene-glycol/water mix), integrated chiller + dry cooler bypass |
| Battery Chemistry | LFP (LiFePO4), Tier-1 prismatic cells |
| Cycle Life | ≥ 6,000 cycles (80% DoD, 25°C, EoL 70% SoH); ≥ 10,000 cycles with intelligent charge/discharge management |
| Operating Temperature Range | -20°C to +55°C (ambient); derating above 45°C |
| Protection Class (Enclosure) | IP55 (cabinet), IP67 (battery modules – internal) |
| Weight (Total) | ≈ 2,450 kg (approx. 5,400 lbs) |
| Dimensions (W x D x H) | 1200 mm x 1300 mm x 2350 mm (excluding pad mount, lifting eyes) |
| Communication Interfaces | Ethernet (Modbus TCP/IP), RS485 (IEC 60870-5-104), 4G/WiFi (optional), dry contacts (4x in, 4x out) |
| Fire Suppression | Aerosol-generating device (rack-level) + Class C extinguisher port; optional Novec 1230 or water mist interface |
| Noise Emission (1m) | < 65 dB(A) (cooling pump at 50% duty) |
| Standards Compliance | IEC 62619, IEC 62477-1, UL 9540A (tested), GB/T 34120, NFPA 855 ready |
INDUSTRIAL DEPLOYMENT

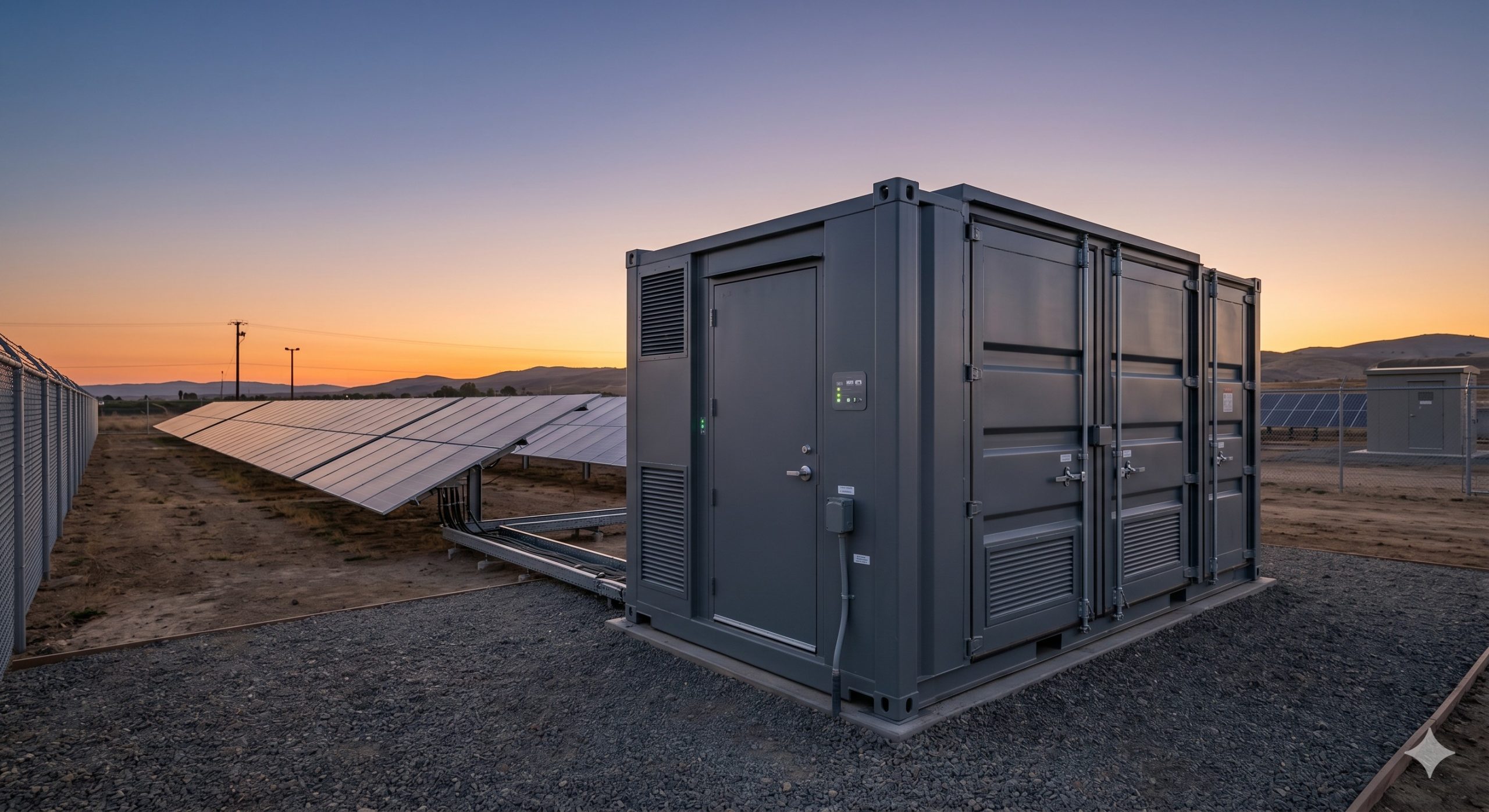

Typical deployment includes pad-mount installation (concrete foundation, 1200mm x 1400mm footprint per stack) with 800mm front clearance for maintenance, 0mm side clearance for parallel stacking (cable busbar interfaces on both sides). Each stack communicates via daisy-chained CAN/RS485 and a shared Ethernet ring. For a typical 500kW / 1MWh installation, five ST510CS-4H-CNPowerStacks are paralleled at the AC bus (480V/3P/4W) with a single external supervisory controller. The system achieves <5% total harmonic distortion (THD) at full load and unity power factor capability (-0.9 to +0.9 leading/lagging).
WARRANTY & SERVICE
Standard: 5-year / 10MWh throughput (whichever first). Extended: Up to 10 years. Includes remote 24/7 monitoring, annual state-of-health (SoH) report, and on-site response within 48 hours (major metro areas). Battery replacement threshold: end-of-life declared at 60% SoH.
Document Revision: 1.0. For project-specific sizing, please consult factory engineering team.
