Modular Scalable ESS Cabinet: Containerized battery module assembly unit | Parallel Expansion up to 10MWh & Smart Liquid Cooling

Product Summary

Introducing the Containerized battery module assembly unit — a modular, scalable energy storage system engineered specifically for high-demand commercial and industrial (C&I) applications. This pre-assembled BESS cabinet integrates Tier-1 LFP battery modules, an advanced liquid cooling system, and a proprietary Battery Management System (BMS) that supports parallel expansion up to 10MWh per cluster. Optimized for peak shaving, backup power, and EV supercharging integration, it achieves a round-trip efficiency of over 92% and delivers a 10-year performance warranty with guaranteed capacity retention. For wholesalers and project developers, this unit offers a turnkey solution with global shipping availability and localized O&M support, dramatically reducing deployment risks and lifecycle costs.

Why C&I Sourcing Chooses This Containerized Battery Module Assembly Unit

Superior ROI Through Modular Scalability

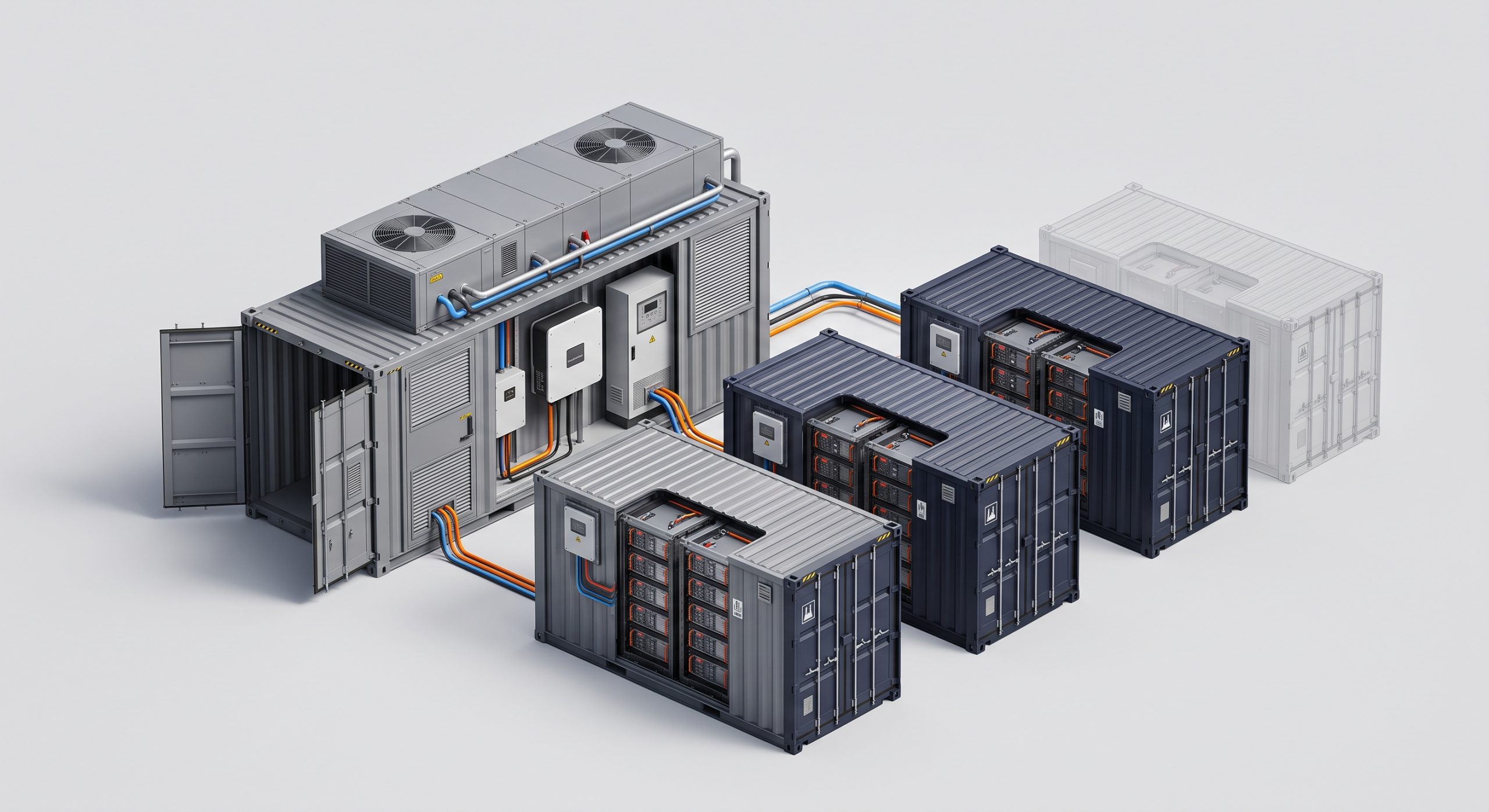

Unlike fixed-capacity alternatives, the Containerized battery module assembly unit is built for growth. Its modular design allows you to start with a 500kW/1MWh block and scale to 10MWh or more by simply paralleling additional cabinets via the integrated busbar interface. This scalability minimizes upfront capital expenditure while providing a clear, low-risk path to expand storage capacity as your energy demands or revenue streams increase. For commercial properties, industrial parks, and charging hubs, this translates into a superior Levelized Cost of Storage (LCOS) compared to traditional diesel generators or non-modular BESS units.

Redefining Peak Shaving & Demand Charge Management

With a maximum continuous discharge power of 500kW and a peak power of 1MW for 10 seconds, this system is a formidable tool for reducing demand charges. By intelligently dispatching stored energy during peak tariff periods, the unit can cut a facility’s peak demand by up to 40%, providing an annual ROI of 20-35% depending on local utility rates. The built-in EMS supports real-time load forecasting and automated peak shaving strategies, ensuring that your investment starts paying back from day one.

Product Overview & Safety Architecture

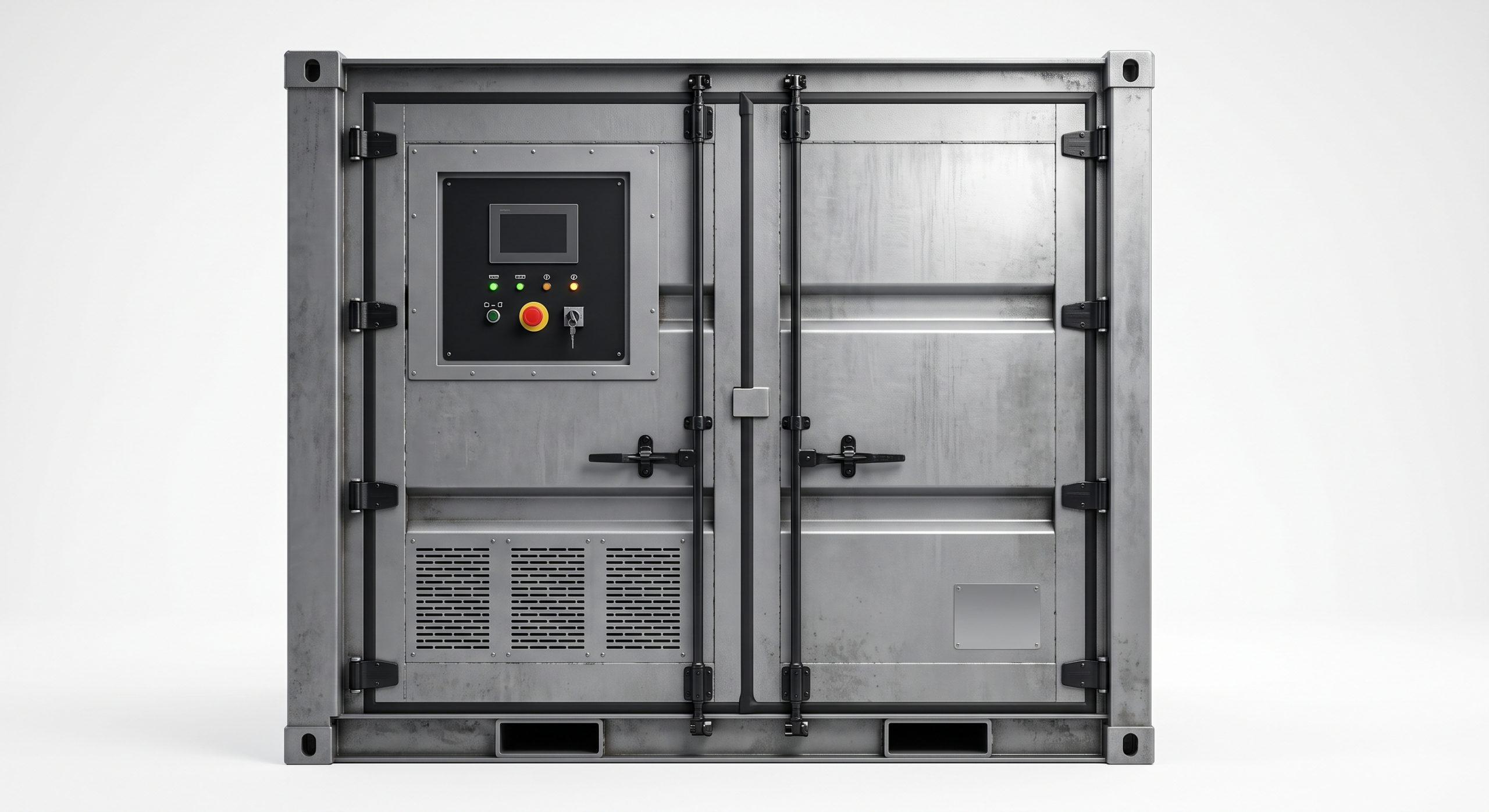

The Containerized battery module assembly unit is housed in an IP65-rated, weatherproof enclosure built from corrosion-resistant steel, designed for both indoor and outdoor installations. The architecture is built around four core pillars: Cell Safety, Thermal Management, Electrical Protection, and Fire Suppression.

Cell-Level Safety & Active Balancing

Each module contains Grade-A, Tier-1 prismatic LFP cells, known for their thermal stability and low risk of thermal runaway. The integrated Active BMS monitors every cell’s voltage, temperature, and internal resistance in real-time. Its active cell-balancing algorithm ensures that all cells remain within a 3% state-of-charge (SoC) variance, significantly extending the cycle life to over 6,000 cycles at 80% DoD. The system’s multi-layer protection includes over-voltage, under-voltage, over-current, short-circuit, and insulation monitoring, all compliant with UL 9540 and IEC 62619 standards.

Smart Liquid Cooling & Thermal Runaway Prevention

The smart liquid cooling system is a key differentiator. Unlike air-cooled systems that suffer from temperature gradients of up to 10°C, the liquid cooling system maintains cell temperature uniformity within a ±1.5°C range across all modules. This precision cooling enhances round-trip efficiency by 3-5% and doubles the expected cycle life under high-rate charge/discharge conditions. Should any cell exhibit abnormal heating, the BMS immediately triggers an alert, and the integrated aerosol-based fire suppression system activates to prevent propagation, making this unit one of the safest in its class.

Technical Specifications

Below are the core technical parameters for the standard 1MWh configuration. All values are factory-tested and verified under ISO 9001 and ISO 14001 standards.

Technical Feature	Specification
Battery Chemistry	Tier-1 LFP (LiFePO4) with Active Balancing
Rated Capacity (1MWh model)	1000 kWh / 500 kW (Continuous)
Scalability	Parallel up to 10 units (10MWh / 5MW)
Cooling / Thermal Control	Smart Liquid Cooling System (±1.5°C cell uniformity)
Round-Trip Efficiency	>92% (AC-AC at rated power)
Cycle Life	6,000 cycles @ 80% DoD (End of Life 60%)
Safety Certifications	UL 9540, IEC 62619, UN 38.3, CE
Communication Protocols	Modbus TCP/IP, CAN bus, IEC 61850
Dimensions (H x W x D)	2,400mm x 2,438mm x 6,058mm
Ingress Protection	IP65 (Outdoor-rated)
Operating Temperature	-20°C to +55°C (derated above 45°C)
Integrated Fire System	Aerosol-based suppression + BMS pre-alarm
Warranty	10-Year Performance Warranty (80% capacity retention)

Key Capabilities at a Glance

• Scalability: Parallel connection of up to 10 units, achieving a total capacity of 10MWh/5MW.
• Communication Protocols: Supports Modbus TCP/IP, CAN bus, and IEC 61850 for seamless integration with site EMS/SCADA.
• Installation: Pre-wired and pre-tested in factory; requires only AC/DC connection and network setup on-site.

Application Scenarios

The Containerized battery module assembly unit is purpose-built for a variety of high-stakes commercial and industrial environments, offering flexibility and performance where it matters most.

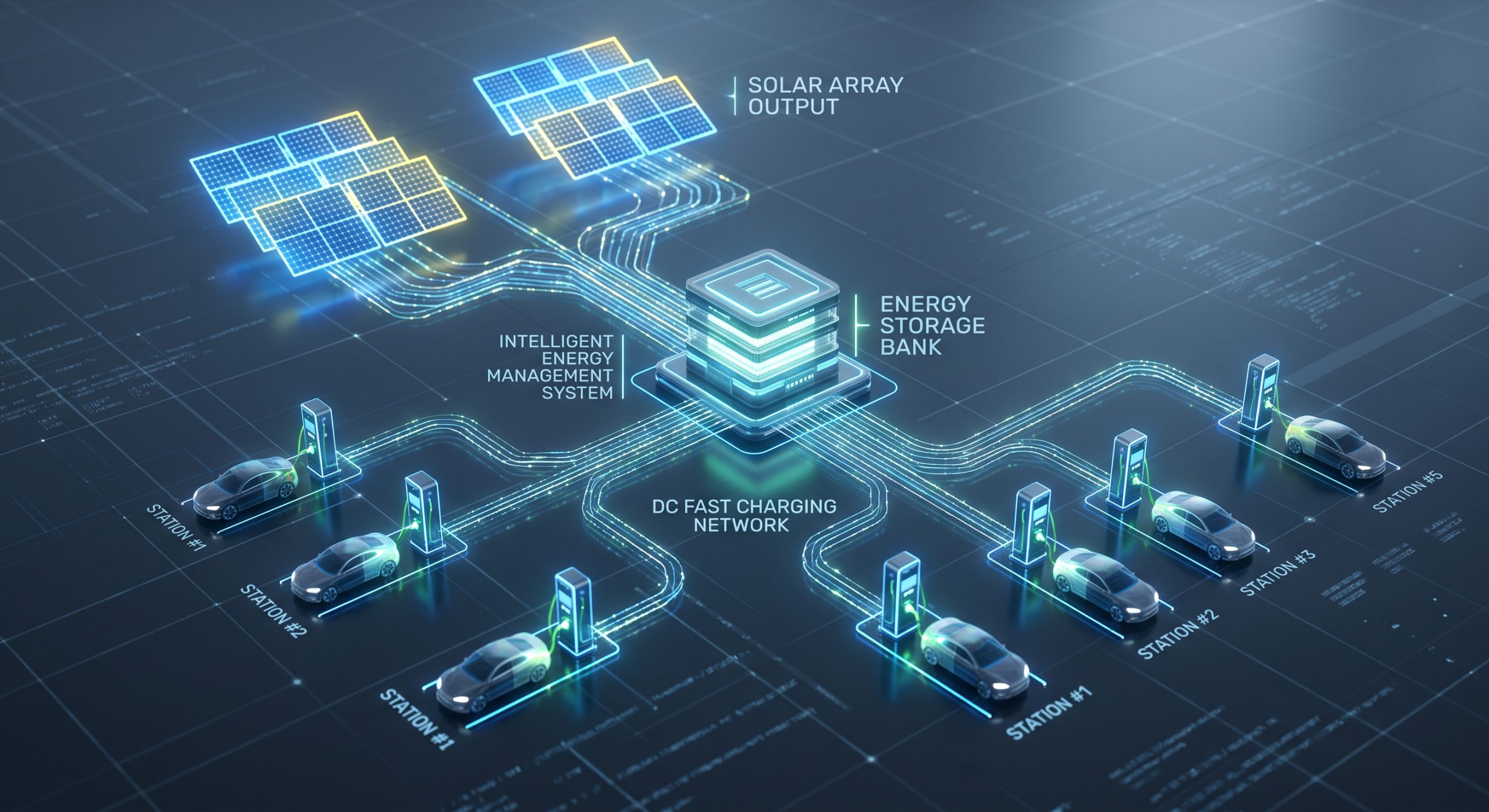

EV Supercharging Stations & High-Power Charging Hubs

With the global shift toward fleet electrification, EV charging stations face significant grid capacity challenges. This BESS acts as a grid buffer, storing energy during off-peak hours and delivering it at high rates to multiple 150kW+ DC chargers simultaneously. It effectively reduces the required grid connection capacity by up to 70%, lowering infrastructure upgrade costs and enabling faster deployment. The turnkey PV-Storage-Charging solution integrates seamlessly with solar canopies, making it a perfect choice for sustainable mobility projects.

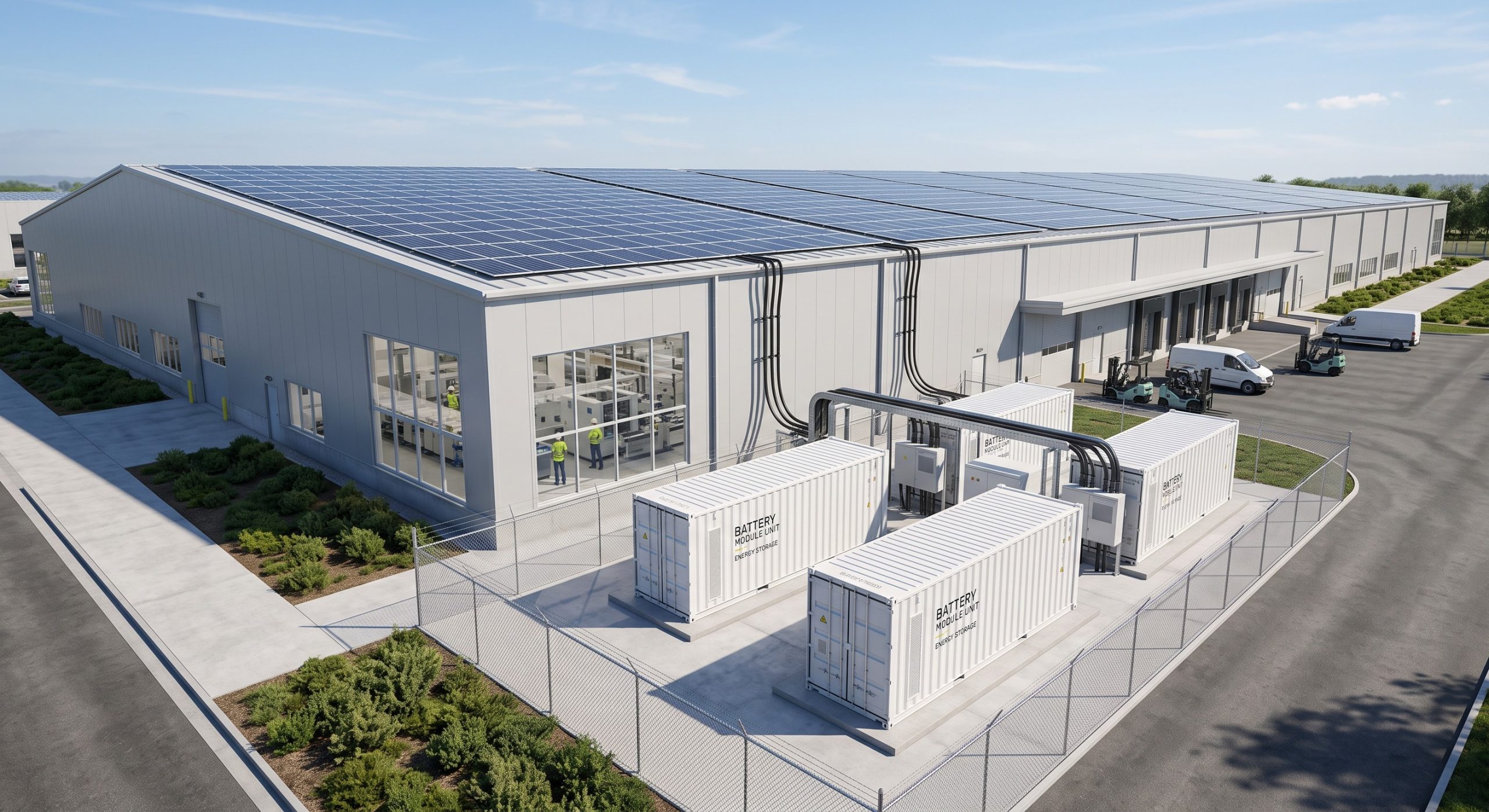

Industrial Parks & Micro-Grid Networks

For industrial facilities with continuous production lines, power outages or voltage sags can cause costly downtime. The unit provides uninterrupted backup power with a sub-4ms switchover time, ensuring critical loads remain online. In grid-tied mode, it enables frequency regulation and voltage support, earning ancillary service revenues. For remote industrial parks or mining operations, it can operate in island mode as a primary power source in a hybrid diesel-solar-storage configuration, reducing fuel consumption by over 60%.

Commercial Buildings & Data Centers

Large office complexes, hospitals, and data centers benefit from the unit’s demand response and peak load shaving capabilities. By shifting load consumption from high-tariff periods, commercial building owners can significantly reduce operational expenses. The unit’s low noise profile (<75 dB at 1 meter) and compact footprint make it suitable for urban installations with limited space.

Global Supply Assurance & 10-Year Performance Warranty

As a globally integrated BESS supplier, we provide a complete turnkey experience that extends from factory acceptance to site commissioning. Each Containerized battery module assembly unit undergoes a rigorous Factory Acceptance Test (FAT) and Site Acceptance Test (SAT) protocol, ensuring 100% functional integrity before shipment. Our global logistics network supports sea and air shipping to all major ports worldwide, with average delivery lead times of 6-8 weeks for standard orders.

We back every unit with a comprehensive 10-year performance warranty, covering materials, workmanship, and capacity degradation (minimum 80% capacity retention at year 10). Furthermore, our local O&M support network provides 24/7 remote monitoring and dispatch of certified technicians for preventive maintenance and emergency repairs, ensuring maximum system uptime and peace of mind for project developers and end-users.

Frequently Asked Questions

What is the scalability of this Containerized battery module assembly unit?

The system is highly scalable. You can connect up to 10 cabinets in parallel to achieve a total capacity of up to 10MWh and 5MW of output power. This modular approach allows you to align your investment precisely with your project’s current and future energy needs.

How does the liquid cooling system improve performance and lifecycle?

Our smart liquid cooling system maintains cell temperature uniformity within ±1.5°C. This precision is superior to air-cooling, which can have temperature differentials of up to 10°C. The resulting benefits include a 3-5% improvement in round-trip efficiency and a significantly extended cycle life, enabling over 6,000 cycles at 80% DoD compared to the industry average of 4,000-5,000 cycles.

What are the key certifications for this BESS?

The Containerized battery module assembly unit is fully certified with UL 9540 (for safety), IEC 62619 (for industrial batteries), UN 38.3 (for transport), and CE marking. These certifications ensure compliance with North American, European, and international safety and performance standards, simplifying the interconnection approval process with local utilities.

What is the typical lead time for global delivery?

For standard orders (1-3 units), our lead time is approximately 6-8 weeks from order confirmation to ex-works. This includes procurement of Tier-1 cells, assembly, factory testing, and packaging. We provide real-time tracking and full visibility through our logistics partner portal to ensure you can plan your project schedule with confidence.

What post-sales support and warranty are included?

We offer an industry-leading 10-year performance warranty that guarantees at least 80% of nominal capacity retention. Beyond the warranty, we provide 24/7 remote monitoring through our cloud-based EMS platform and a network of local O&M partners in over 30 countries. This ensures rapid on-site service for any technical issues, maximizing the system’s operational lifespan and your return on investment.
