Wholesale Supply: ST10030kWh-2500kW-MV-4h | Commercial Energy Storage Cabinet | Global Delivery
Wholesale ST10030kWh-2500kW-MV-4h for your commercial projects. Features Tier-1 LFP cells, liquid cooling, and EMS dispatch. Maximize ROI with turnkey global delivery & 10-year warranty.
Product Summary: The Industrial Backbone for 4-Hour Energy Shifting
Introducing the ST10030kWh-2500kW-MV-4h, a high-capacity commercial and industrial (C&I) battery energy storage system (BESS) engineered for peak shaving, load shifting, and backup power. With a formidable 10 MWh usable capacity and 2.5 MW power output designed for a stable 4-hour discharge duration, this liquid-cooled cabinet is the cornerstone for large-scale industrial parks, EV super-hubs, and micro-grids. Backed by a 10-Year Performance Warranty and access to Local O&M Support, we provide absolute project bankability.
Why C&I Sourcing Chooses ST10030kWh-2500kW-MV-4h (High ROI)
Procurement decisions are driven by Levelized Cost of Storage (LCOS). Our system is architected for maximum returns: Tier-1 LFP cells ensure over 6,000 cycles at 90% DoD with minimal degradation. The advanced liquid cooling system maintains optimal cell temperature (difference <2°C), boosting round-trip efficiency to 92%. Combined with a Turnkey PV-Storage-Charging Solution, you achieve energy independence and a predictable ROI that outperforms traditional diesel generators within 3-4 years.
Product Overview & Safety Architecture

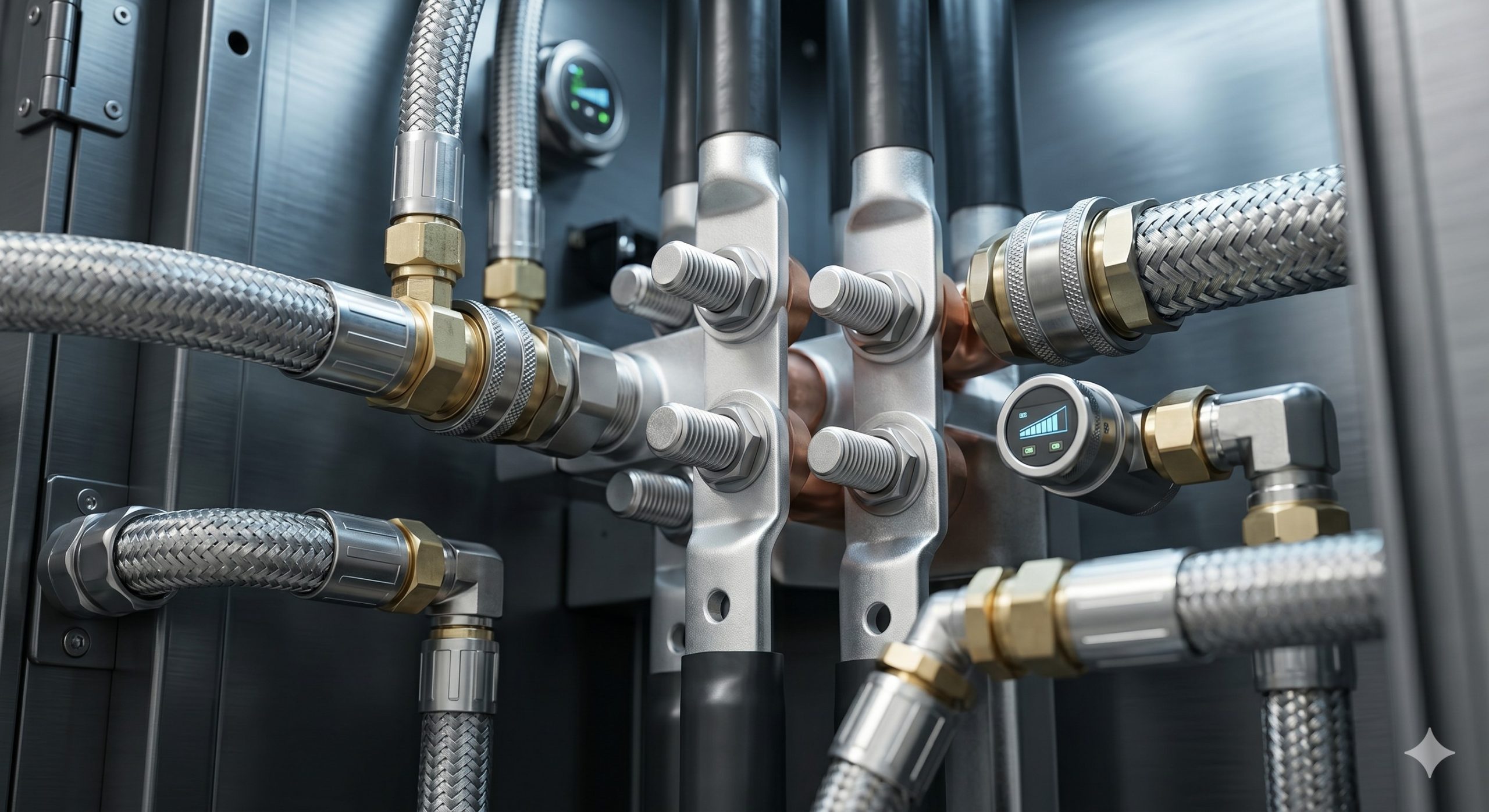

Safety is non-negotiable. The ST10030kWh-2500kW-MV-4h integrates an active BMS with multi-layer fire suppression (aerosol + gas). The IP65-rated cabinet houses individual cell-level fuses and explosion vents. Communication utilizes IEC 61850/Modbus RTU for seamless EMS integration. The High-Efficiency Liquid Cooling not only extends cycle life but also maintains a safe thermal envelope even at 0.5C continuous charge/discharge rates.
| Technical Feature | Specification |
|---|---|
| Battery Chemistry | Tier-1 LFP (LiFePO4) |
| Cooling / Thermal Control | Smart Liquid Cooling (ΔT < 2°C) |
| Usable Capacity | 10,030 kWh (10 MWh) |
| Rated AC Power | 2,500 kW (2.5 MW) |
| Discharge Duration | 4 hours (1C/0.25C configurable) |
| Round-trip Efficiency | ≥ 92% (0.5C) |
| Cycle Life | 6,000 cycles @ 90% DoD / 8,000 cycles @ 80% DoD |
| Warranty | 10 Years Performance (70% EOL) |
| Safety Certifications | UL 9540A, IEC 62619, UN38.3 |
| Communication Protocols | Modbus TCP, IEC 61850, CAN 2.0 |
| Enclosure Rating | IP65 (outdoor rated) |
| Fire Suppression | Aerosol + FM-200, cell-level fusing |
Application Scenarios

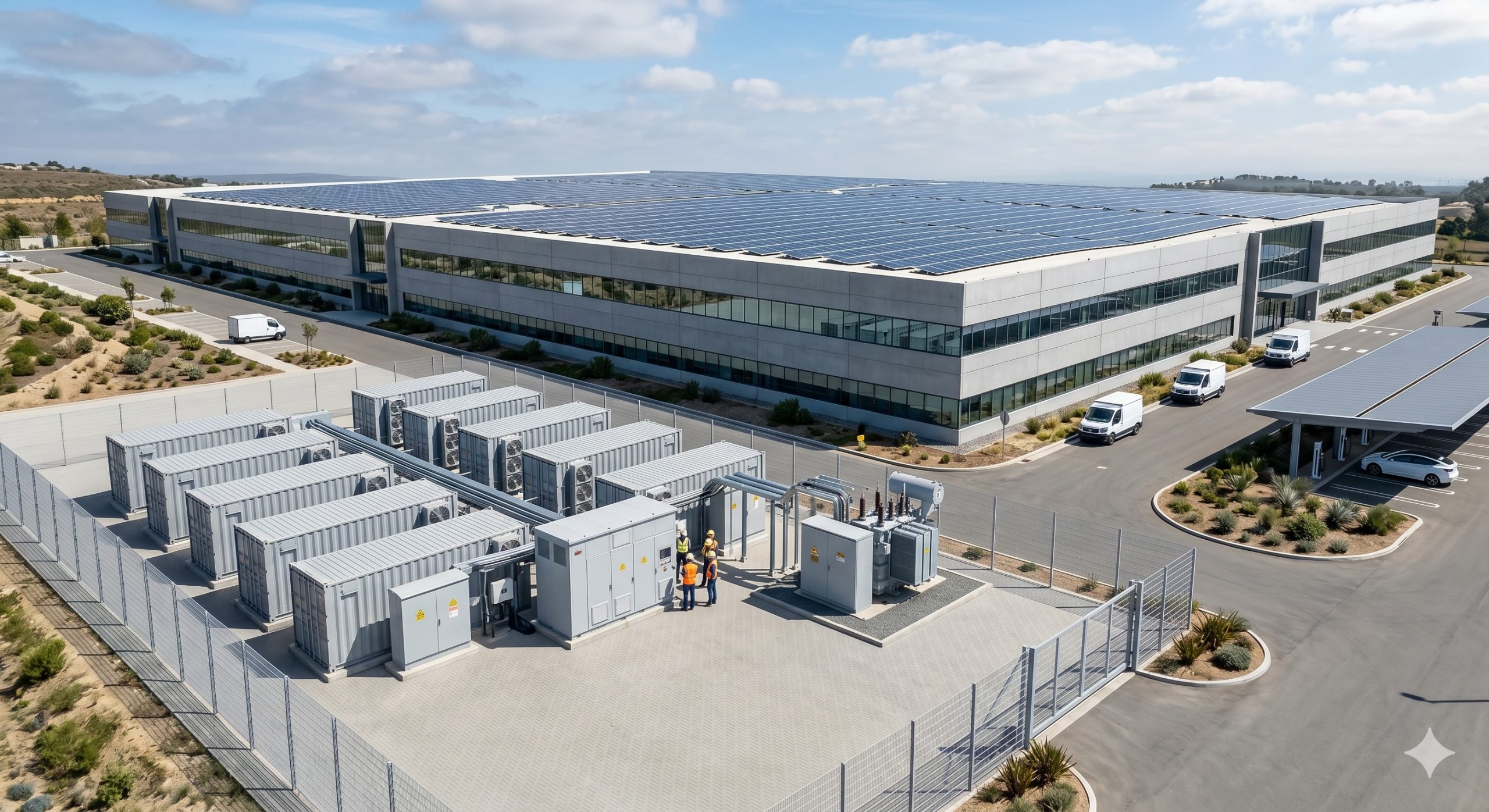

EV Supercharging Stations & Industrial Parks
Deploy the ST10030kWh-2500kW-MV-4h to buffer grid demand from ultra-fast EV chargers (350kW+), slashing demand charges by up to 40%. For industrial parks, the system enables peak shaving ROI of over $200k annually, while providing black-start capability. Our Local O&M Support network ensures <4hr response SLA, guaranteeing your asset uptime.
Supply Assurance & Global Logistics
As a direct source manufacturer, we offer FOB, CIF, and DDP Incoterms with global shipping availability. All units undergo rigorous factory acceptance testing (FAT). Standard lead time is 30-45 days. We provide full customs documentation, including UN38.3, UL9540A, IEC 62619 certificates, ensuring smooth port clearance worldwide.
Frequently Asked Questions
- What is the actual cycle life under standard operation?
- Our Tier-1 LFP cells deliver 8,000 cycles at 80% DoD and 6,000 cycles at 90% DoD, backed by a 10-Year Performance Warranty (70% EOL capacity retention). Test data is available upon NDA.
- How does the liquid cooling improve LCOS?
- Liquid cooling maintains uniform cell temperature, reducing degradation rate by approx. 30% vs. forced air. This extends system life by 2-3 years, directly lowering your annualized LCOS by 15-20%.
- Can this integrate with existing PV and diesel generators?
- Yes. The system includes an EMS with seamless transition capability (grid-connected/island mode) and supports hybrid PV-Storage-Charging topologies. It works in parallel with existing diesel gensets for micro-grid stability.
- What local support is available in my region?
- We have regional O&M hubs in EMEA, NA, and SEA. Support includes remote diagnostics, spare parts stocking, and certified local field service engineers for commissioning and maintenance.
- How does wholesale pricing work for integrators?
- We offer tiered volume discounts for MOQ of 1 unit (2.5MW/10MWh), with further price breaks at 10MW and 50MW annual commitments. Contact our B2B desk for a bespoke quote based on your project pipeline.
