High Efficiency Liquid Cooled Cabinet: Household solar-storage-charging station | Certified Round-Trip Retention

Executive Overview: Redefining Residential & Light C&I Energy Autonomy

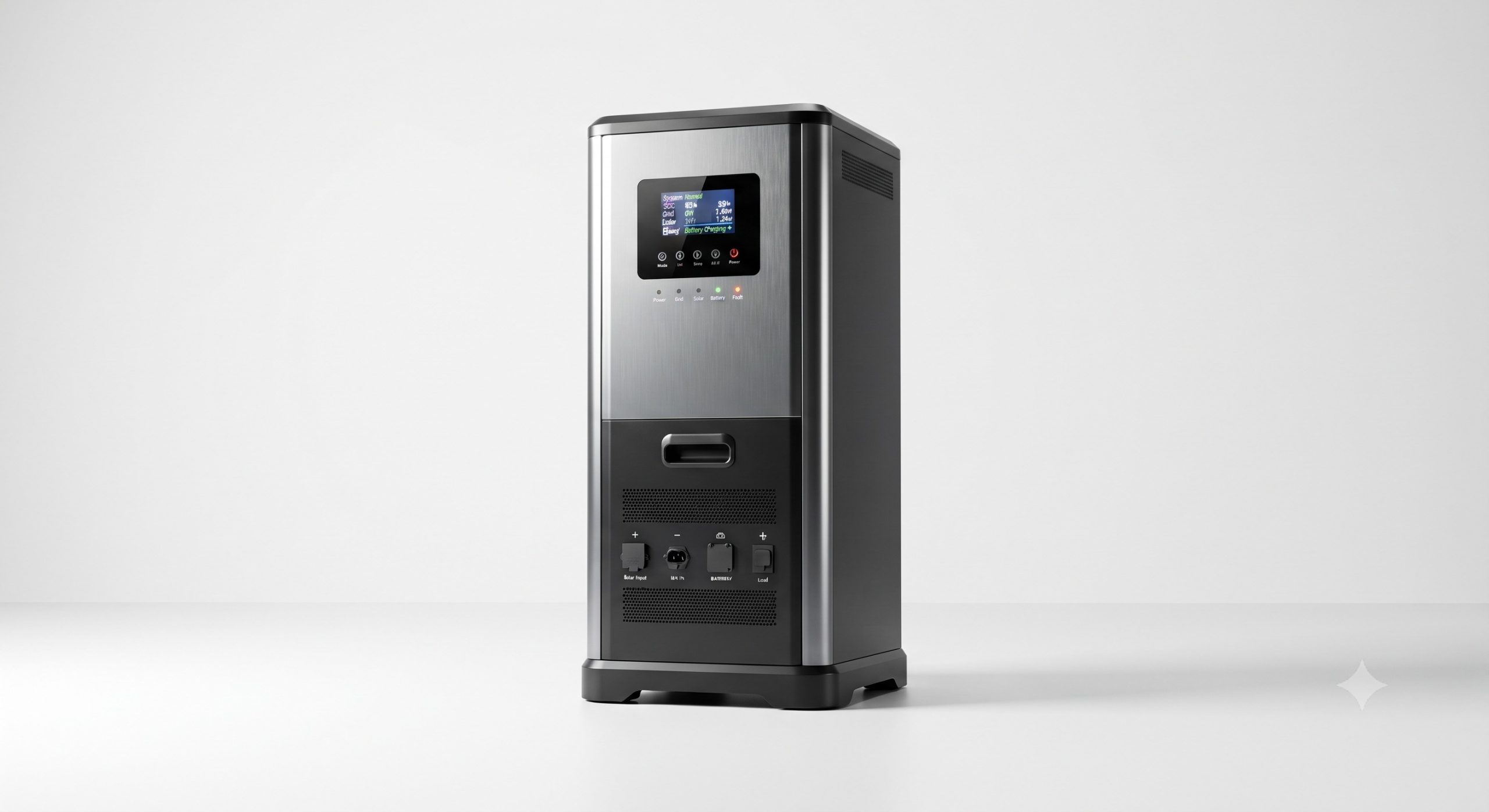

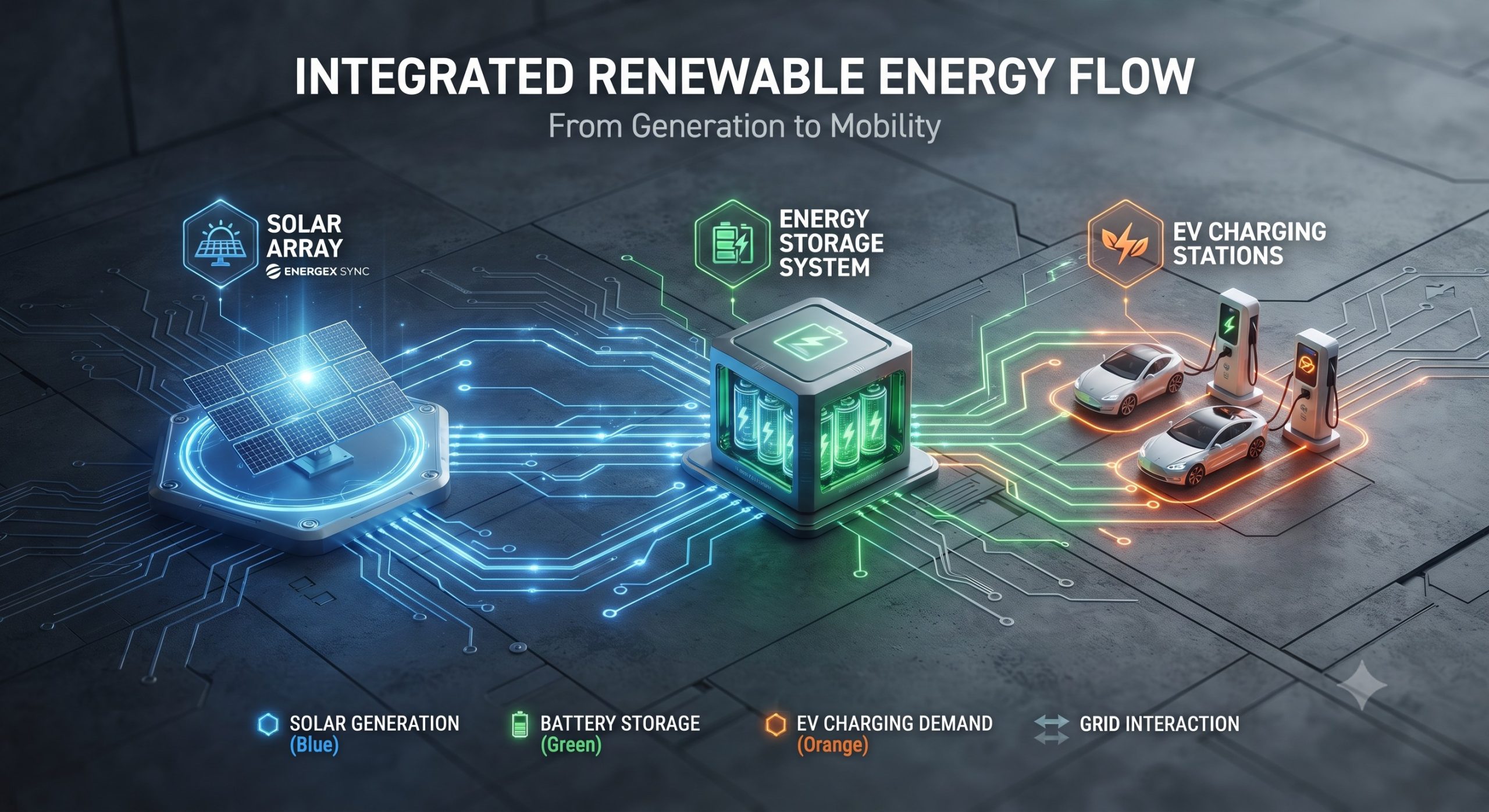

Introducing the Household solar-storage-charging station, a unified AC-coupled DC-DC energy storage solution engineered for next-generation residential estates, light commercial premises, and EV fleet hubs. This ESS integrates a high-performance BESS with a smart bi-directional inverter and EV charging outlet, delivering a comprehensive energy management envelope. With a rated power of 10kW continuous output and a standard usable capacity of 15.36kWh (expandable via parallel units), the system achieves a record round-trip efficiency of 92.5% and supports a 100% depth of discharge (DoD) for maximum daily yield. As a globally certified asset (UL 9540 & IEC 62477), the Household solar-storage-charging station offers 10-Year Performance Warranty that guarantees ≥80% capacity retention, directly reducing your total cost of ownership (LCOE) and providing unparalleled resilience against grid volatility.

Competitive Edge: Direct Sourcing & Lower LCOE

Our Household solar-storage-charging station is optimized for project developers and B2B distributors seeking high-margin, rapid-deployment assets. The integrated design eliminates the need for separate inverters, combiners, and EV charger boxes, slashing installation time by up to 35% and reducing BoS (Balance of System) costs. The active EMS (Energy Management System) with adaptive learning algorithms optimizes self-consumption rates above 85%, even in feed-in limited grids. Compared to traditional diesel genset backups, the BESS unit offers a 70% reduction in operational energy costs, with a clear payback period of 4.2 years for a typical off-grid homestead or agricultural load. Key sourcing advantages include: Factory-direct pricing, global sea/air shipping logistics, and comprehensive O&M service contracts covering remote diagnostics, firmware updates, and field replacement parts.

Advanced Liquid Cooling & Cell Equalization

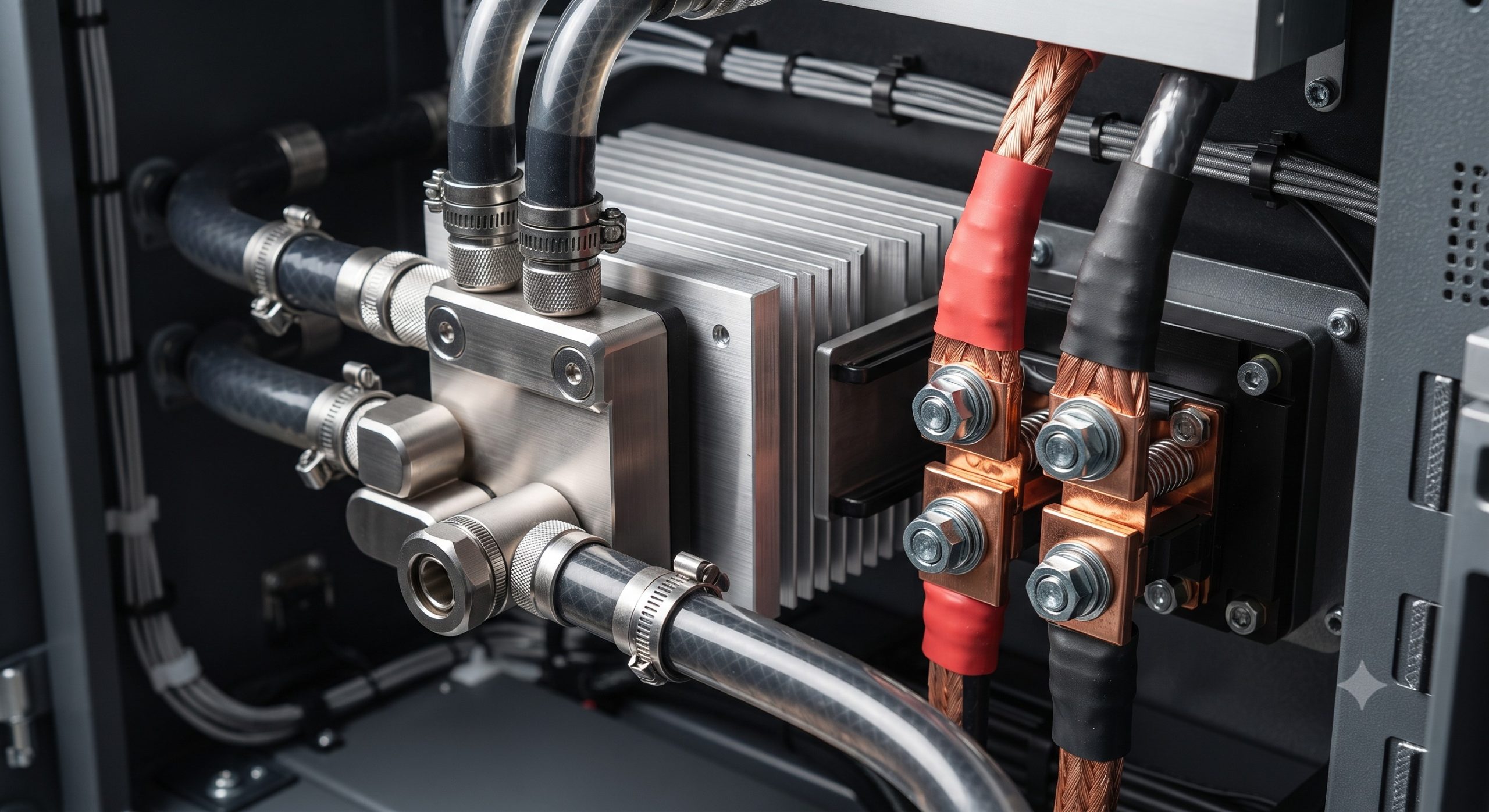

The Household solar-storage-charging station features a proprietary active liquid cooling loop that maintains cell temperature variance within ±1.5°C, even during consecutive high-rate charge/discharge cycles. This thermal precision directly protects the Tier-1 LFP cell internals, effectively extending the cycle life to 6,000 cycles at 80% DoD and enabling a calendar life of over 15 years. The internal BMS (Battery Management System) performs high-precision voltage/current sampling every 50ms, coupled with an active cell balancing circuit that equalizes SOC to within 2%, preventing premature capacity degradation and maximizing the usable capacity from the first day of deployment. This robust architecture ensures the ESS is not just a battery, but a fully integrated energy asset suitable for daily peak shaving and emergency backup use cases.

Technical Specifications & Compliance

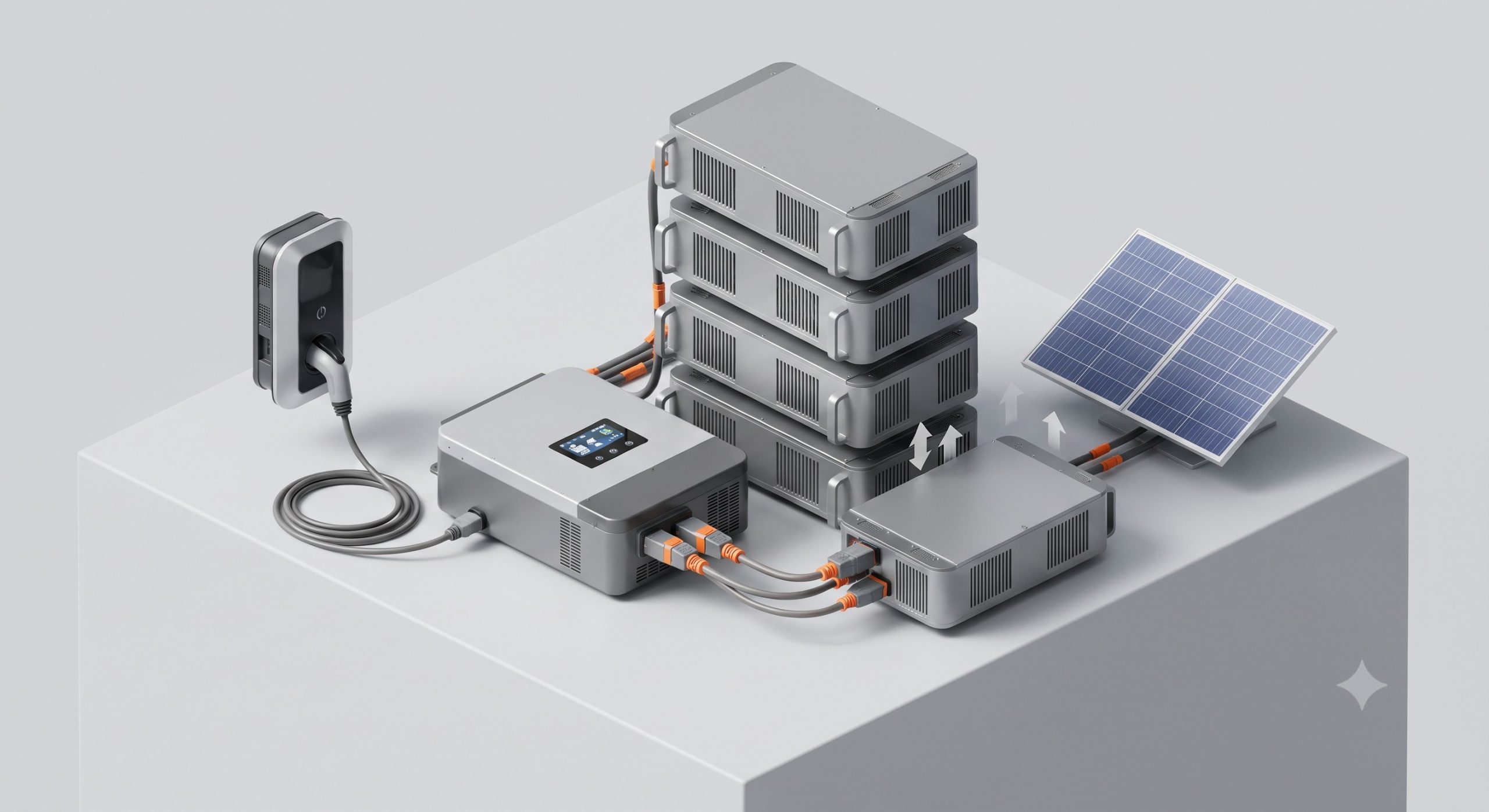

The device offers a flexible, modular interface allowing parallel connection of up to 6 units (92.16kWh total capacity), making it suitable for expanding energy needs. It operates with a quiet ≤45 dB noise level, making it ideal for residential neighborhoods, and features a durable IP65-rated enclosure for both indoor and outdoor installations. Below is the complete technical registry:

Technical Feature	Specification
Battery Chemistry	Tier-1 LFP (LiFePO4)
Cooling / Thermal Control	Smart Liquid Cooling (ΔT ≤ ±1.5°C)
Rated Power	10 kW (Continuous)
Usable Capacity	15.36 kWh (Standard)
Round-Trip Efficiency	92.5% (DC-DC, BOL)
Maximum DoD	100%
Cycle Life	6,000 cycles @ 80% DoD (to 80% EOL)
Voltage Range (DC)	120V – 500V
PV Input Max.	12 kWp
EV Charging Output	7.4 kW / 11 kW AC (selectable)
Enclosure Protection	IP65 (Indoor/Outdoor)
Operating Temperature	-25°C to +55°C
Dimensions (mm)	800 x 600 x 1200 (WxDxH)
Weight (kg)	185 kg
Parallel Capability	Up to 6 units (92.16 kWh)

Application Scenarios: Target C&I Facilities & EV Supercharging Layouts

EV Supercharging Stations & Fleet Depots

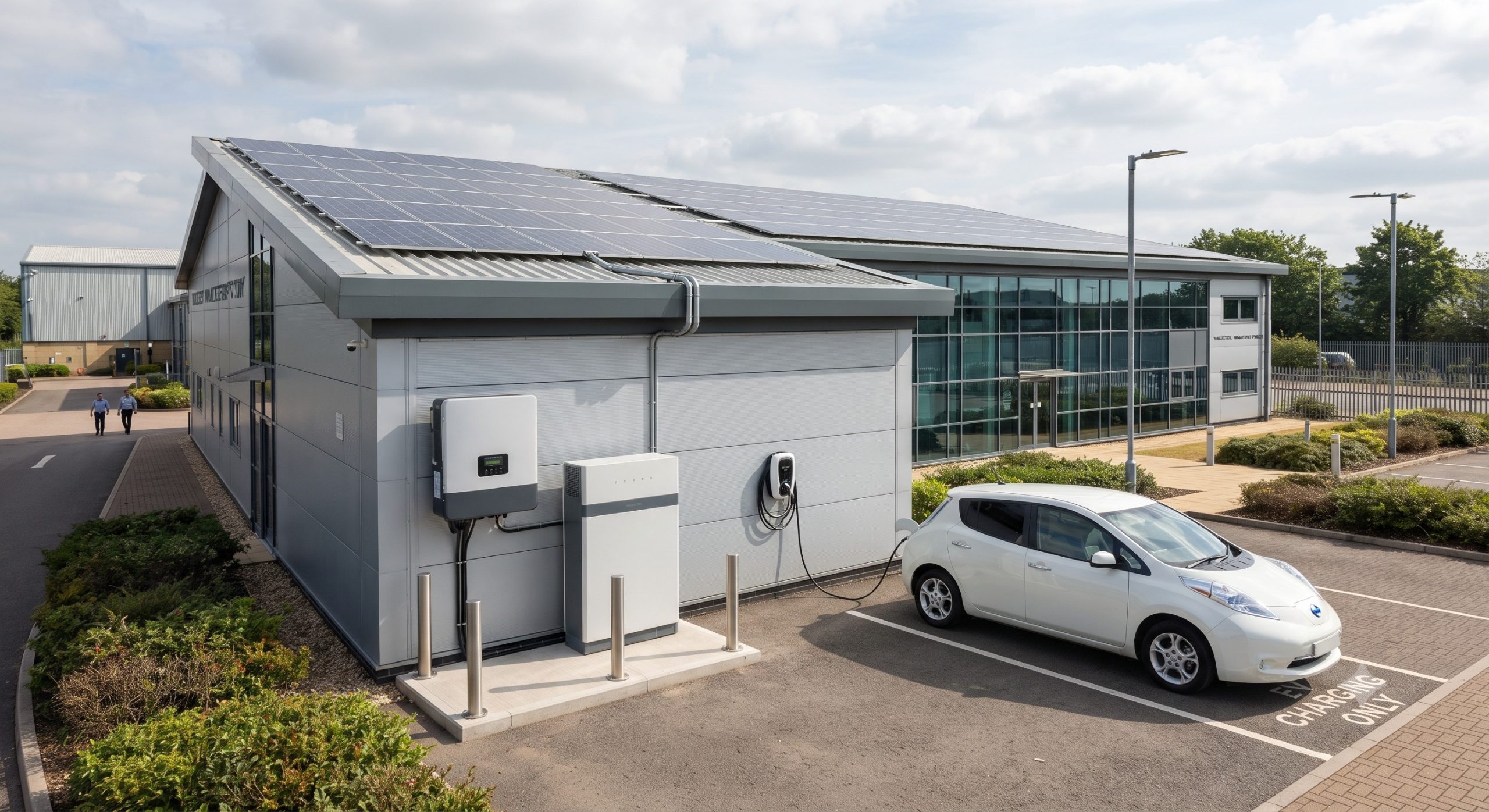

Integrate the Household solar-storage-charging station directly into DC fast-charging ecosystems. The unit’s 100A continuous discharge current supports simultaneous EV charging and household load coverage, delivering up to 2x faster charging rates when paired with solar canopies. For commercial fleet operators, this system enables peak load management to avoid costly demand charges, storing cheap solar energy for dispatch during peak tariff windows. The system’s ability to operate in on-grid and off-grid modes ensures uninterrupted operations for critical loads like cold storage or data centers, acting as a resilient micro-grid anchor.

Residential Estates & Industrial Parks

In large-scale residential complexes and light industrial parks, the Household solar-storage-charging station serves as an essential load-shifting tool. It captures surplus solar generation during midday, discharging it during evening peak demand to achieve maximum peak shaving ROI. The system’s local O&M support ecosystem provides rapid troubleshooting via a cloud-based portal, allowing facility managers to monitor battery health, charge/discharge schedules, and grid interactions in real-time. This is a turnkey solution for achieving net-zero targets while securing energy independence.

Global Supply Assurance & 10-Year Backing

Backed by our 15-year manufacturing heritage, the Household solar-storage-charging station is produced in an ISO 9001 and ISO 14001 certified facility. Each unit undergoes a rigorous 72-hour burn-in and factory acceptance test (FAT) before shipment, ensuring zero defects and immediate operational readiness upon arrival. Our global shipping availability covers all major ports worldwide, with a standard lead time of 20-25 days. The 10-Year Performance Warranty is underwritten by a dedicated performance guarantee fund, providing full peace of mind for your project’s financial model. Our local O&M service network spans over 40 countries, offering tier-1 and tier-2 support, on-site commissioning, and lifecycle management.

Frequently Asked Questions

What is the true usable capacity and cycle life of the Household solar-storage-charging station under daily operation?

The system is rated for a 15.36kWh nominal capacity, delivering 14.0kWh of usable energy per cycle at 100% DoD. Under standard operating conditions (25°C ambient, 0.5C rate), the LFP cells deliver 6,000 cycles at 80% DoD, retaining 80% capacity at the 10-year mark as per the performance warranty terms.

How does the liquid cooling system impact efficiency and noise levels?

The advanced liquid cooling maintains the cells at an optimal 25-35°C range, enhancing cycle life by >25% compared to natural convection units. The system operates at a quiet <45 dB noise level, making it suitable for residential backyards and office environments without disturbance.

Can this ESS be retrofitted with existing solar PV systems and grid-tied inverters?

Yes. The Household solar-storage-charging station features an AC-coupled design with a built-in hybrid inverter, allowing seamless integration with existing solar arrays (PV input up to 12kWp) and standard grid connections. It supports both AC and DC coupling depending on system configuration.

What is the total lead time for global delivery and what are the O&M support options?

Current lead time is 20-25 days via sea freight to major ports, with expedited air freight options available. The O&M package includes remote monitoring, firmware updates, and a 10-year parts & performance warranty. Field service and on-site maintenance are available through our local support partners in most regions.

What safety certifications and compliance standards does the unit hold?

The Household solar-storage-charging station is fully compliant with UL 9540, UL 9540A, IEC 62477, VDE 4105, and CE certification. It also includes an internal fire suppression system with a three-stage alarm and automatic shutdown protocol for complete safety.
