Ready to Deploy: ST510CS-2H-CNPowerStack Commercial Battery ESS | 10-Year Warranty & Local O&M

Product Summary

Engineered for high-throughput commercial and industrial applications, the ST510CS-2H-CNPowerStack is a grid-interactive BESS (Battery Energy Storage System) that delivers robust cycle stability and immediate peak shaving ROI. This unit integrates an advanced liquid cooling loop and a multi-layer Battery Management System (BMS) to ensure consistent performance in demanding environments, from EV supercharging hubs to manufacturing micro-grids. Backed by a 10-Year Performance Warranty and a global logistics network, the ST510CS-2H-CNPowerStack is ready for rapid deployment across any project scale.

Why C&I Sourcing Chooses ST510CS-2H-CNPowerStack

The commercial energy storage landscape demands more than just capacity—it requires predictable degradation curves and supply chain reliability. Our system is built on Tier-1 LFP prismatic cells, delivering >6,000 cycles at 80% DoD with minimal capacity fade. The active liquid cooling maintains cell温差 within ±2°C, directly preserving round-trip efficiency above 94% even during high C-rate operations. For distributors and project integrators, this translates to superior LCOE (Levelized Cost of Energy) and lower post-sale service overhead. Furthermore, our turnkey PV-Storage-Charging compatibility allows you to bundle the ST510CS-2H-CNPowerStack with existing solar canopies and DC fast chargers, creating a complete energy independence package.

Product Overview & Safety Architecture

Safety and lifespan are engineered into every layer of the ST510CS-2H-CNPowerStack. The cabinet features an IP55 exterior rating, making it suitable for both indoor industrial parks and outdoor yard installations. Internally, a three-level fire suppression system (aerosol + gas + thermal runaway detection) works in parallel with the BMS to isolate faults before they propagate. The hierarchical EMS (Energy Management System) supports active cell equalization, preventing voltage sag in weak cells and extending the usable capacity of the entire rack. All components are UL 9540 and IEC 62619 certified, ensuring compliance with international safety standards.

Technical Specifications

Below are the factory-verified parameters for the ST510CS-2H-CNPowerStack. All metrics are tested under standard 25°C environment with 0.5C charge/discharge rate.

Technical Feature	Specification
Battery Chemistry	Tier-1 LFP (LiFePO4), Prismatic Cells
Usable Energy (kWh)	215 kWh (100% DoD, scalable in parallel)
Cooling / Thermal Control	Active Liquid Cooling (Coolant: water-glycol)
Max. Charge/Discharge Power	100 kW / 100 kW (0.5C continuous)
Round-Trip Efficiency	≥94% @ 0.5C, 25°C
Cycle Life	>6,000 cycles @ 80% DoD, 25°C (EOL 70% SOH)
Safety Certifications	UL 9540, UL 1973, IEC 62619, CE, UN38.3
Enclosure Protection	IP55 (cabinet), IP67 (battery modules)
Communication Protocols	Modbus TCP/RTU, CAN bus, optional 4G/WiFi
Dimensions (W x D x H)	1200mm x 800mm x 2100mm
Weight	~2,200 kg (full configuration)

Application Scenarios

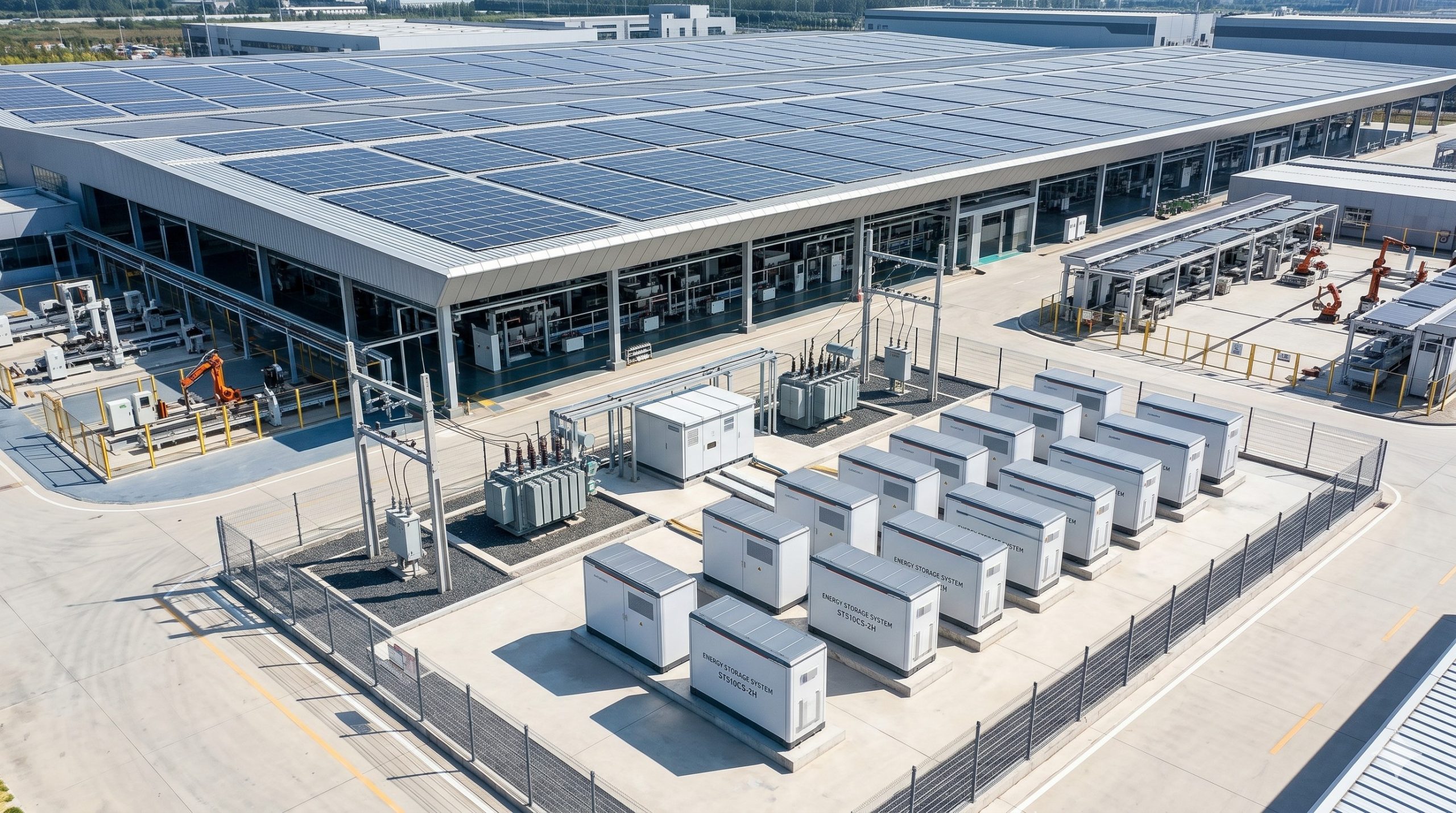

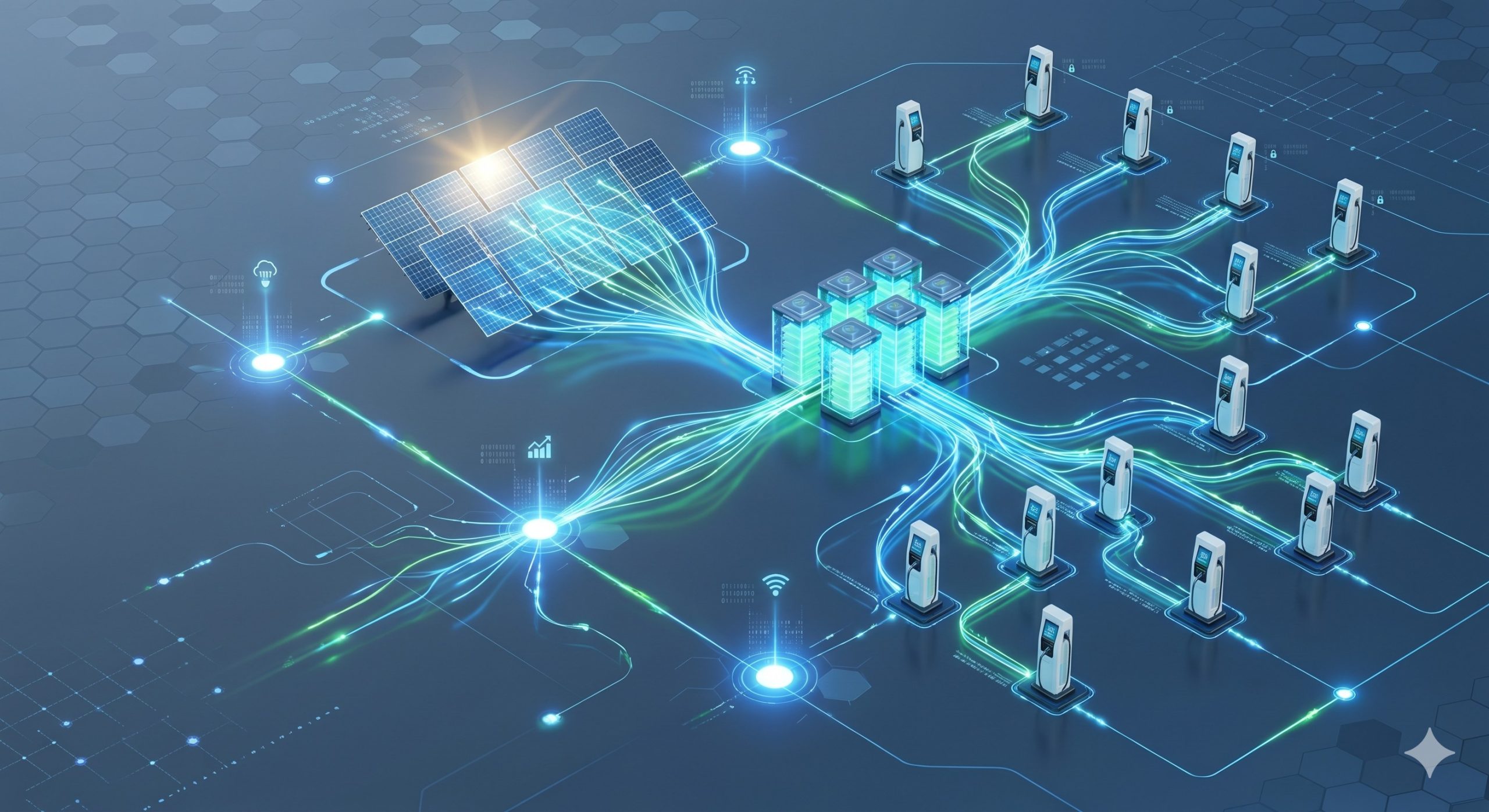

EV Supercharging Stations & Parks

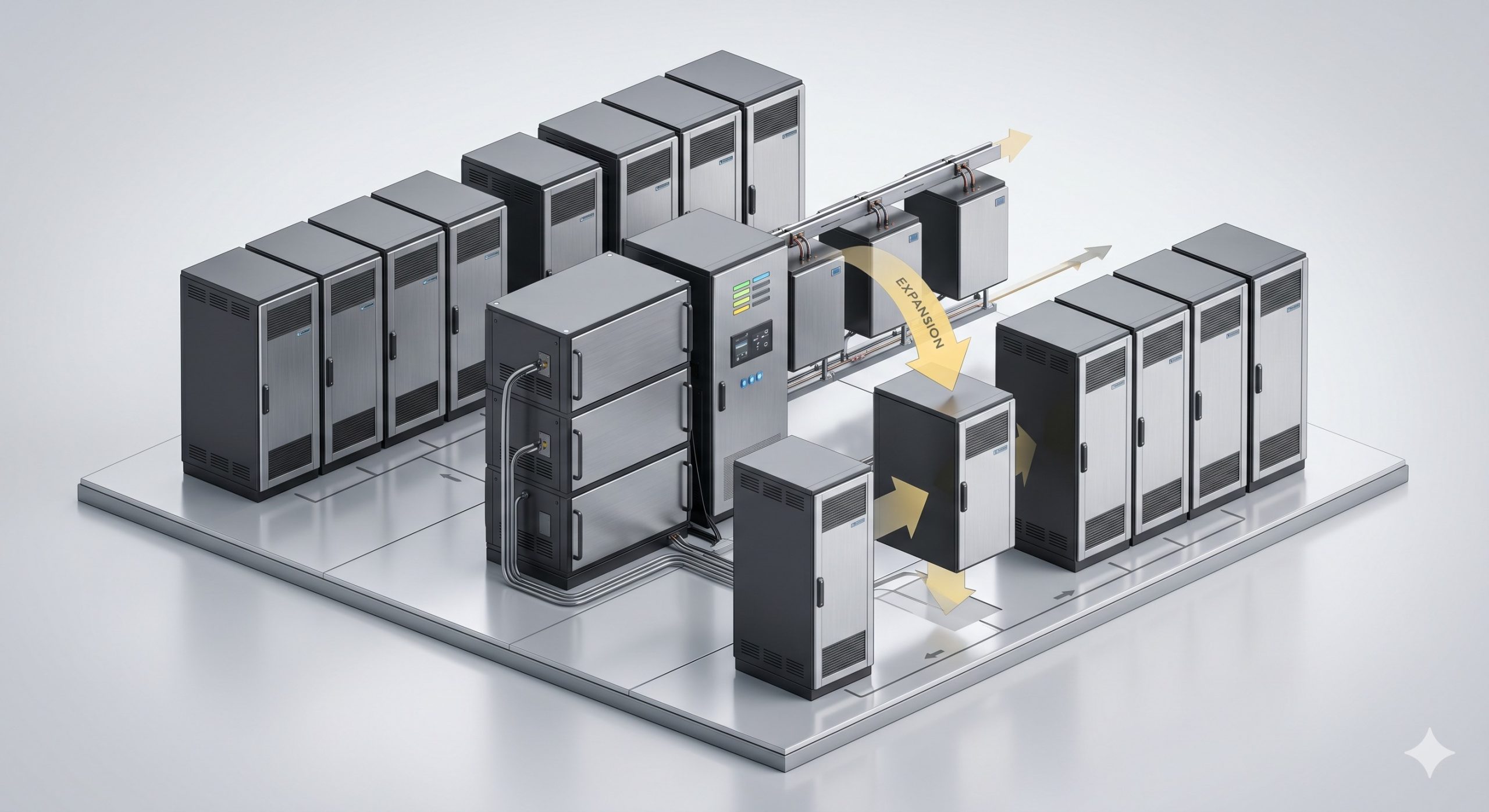

Deploy the ST510CS-2H-CNPowerStack alongside your existing charging infrastructure to slash demand charges. The system’s fast response time (<30ms) enables dynamic load shifting—storing cheap off-peak energy and discharging during peak EV charging windows. This directly improves station profitability by reducing grid dependency. For industrial parks, parallel connection of up to 10 units creates a scalable micro-grid capable of islanding during grid faults, ensuring continuous production for critical loads.

Supply Assurance & Global O&M Support

As a vertically integrated manufacturer, we control the entire supply chain from cell sorting to final assembly. Global shipping availability via sea freight (FCL/LCL) is supported with ready stock in regional hubs (NA, EU, SEA). Every unit undergoes a full FAT (Factory Acceptance Test) before dispatch. Our Local O&M Support network provides on-site commissioning, firmware updates, and proactive alarm management, ensuring your projects remain operational with guaranteed response times under the 10-Year Warranty SLA.

Frequently Asked Questions

What is the typical lead time for the ST510CS-2H-CNPowerStack?

Standard lead time is 4-6 weeks for FOB shipment. Express sampling or expedited orders for regional warehouses can be arranged via our wholesale account manager.

Does the 10-Year Warranty cover capacity degradation?

Yes. The 10-Year Performance Warranty guarantees 70% minimum remaining capacity at the end of year 10 under normal operation (≤1 cycle/day, ≤25°C average temperature). This is backed by our factory degradation test data.

Can this unit be integrated with existing third-party inverters or solar arrays?

Absolutely. The EMS supports Modbus TCP/RTU and CAN bus protocols, allowing seamless integration with most PV inverters (Huawei, Sungrow, SMA) and AC chargers. Turnkey PV-Storage-Charging solutions include pre-commissioned logic controllers.

How does liquid cooling improve cycle life compared to passive cooling?

Liquid cooling maintains a uniform temperature across all cells, reducing internal resistance imbalance and lithium plating. Our internal testing shows a 20% cycle life improvement compared to traditional air-cooled cabinets in 35°C ambient environments.

What certifications are available for international projects?

The ST510CS-2H-CNPowerStack is fully certified with UL 1973, UL 9540A, IEC 62619, CE, and UN38.3 for transport. We can also provide project-specific documentation for local grid interconnection applications.
