Global Supplier of Lithium Iron Phosphate ESS | Turnkey PV-Storage-Charging Solutions (1.0MWh-3.0MWh)

Product Summary: Industrial-Grade LFP Energy Storage Cabinet

This Lithium Iron Phosphate (LiFePO4) Commercial & Industrial (C&I) Energy Storage System (ESS) is engineered for maximum operational expenditure (OPEX) reduction and absolute revenue security. As a premier global distributor, we deliver turnkey PV-storage-charging solutions backed by a 10-Year Performance Warranty. Our 1.0MWh to 3.0MWh modular cabinets utilize Tier-1 prismatic LFP cells, offering >6,000 cycles at 90% Depth of Discharge (DoD) with industry-leading thermal stability.

Why Global Sourcing Chooses Lithium Iron Phosphate ESS

Unlike NMC chemistries, our Lithium Iron Phosphate architecture provides inherent safety and a superior Levelized Cost of Storage (LCOS). For project developers and ESCOs, this translates to bankable returns through peak shaving, demand charge mitigation, and grid ancillary services. Our factory-direct model ensures global shipping availability with lead times as low as 30 days FOB/CIF major ports. Benefit from Local O&M Support networks across EU, NA, and SEA, ensuring sub-4-hour remote resolution and next-day on-site service.

Competitive Edge for C&I Buyers

Lowest LCOS in Its Class: Achieve 92% round-trip efficiency (DC) with active liquid cooling maintaining cell delta-T < 2.5°C. Turnkey Integration: Supports seamless parallel expansion up to 10MW. Cyber-Secure EMS: AI-driven energy dispatching with ISO 27001 compliance.

Product Overview & Safety Architecture

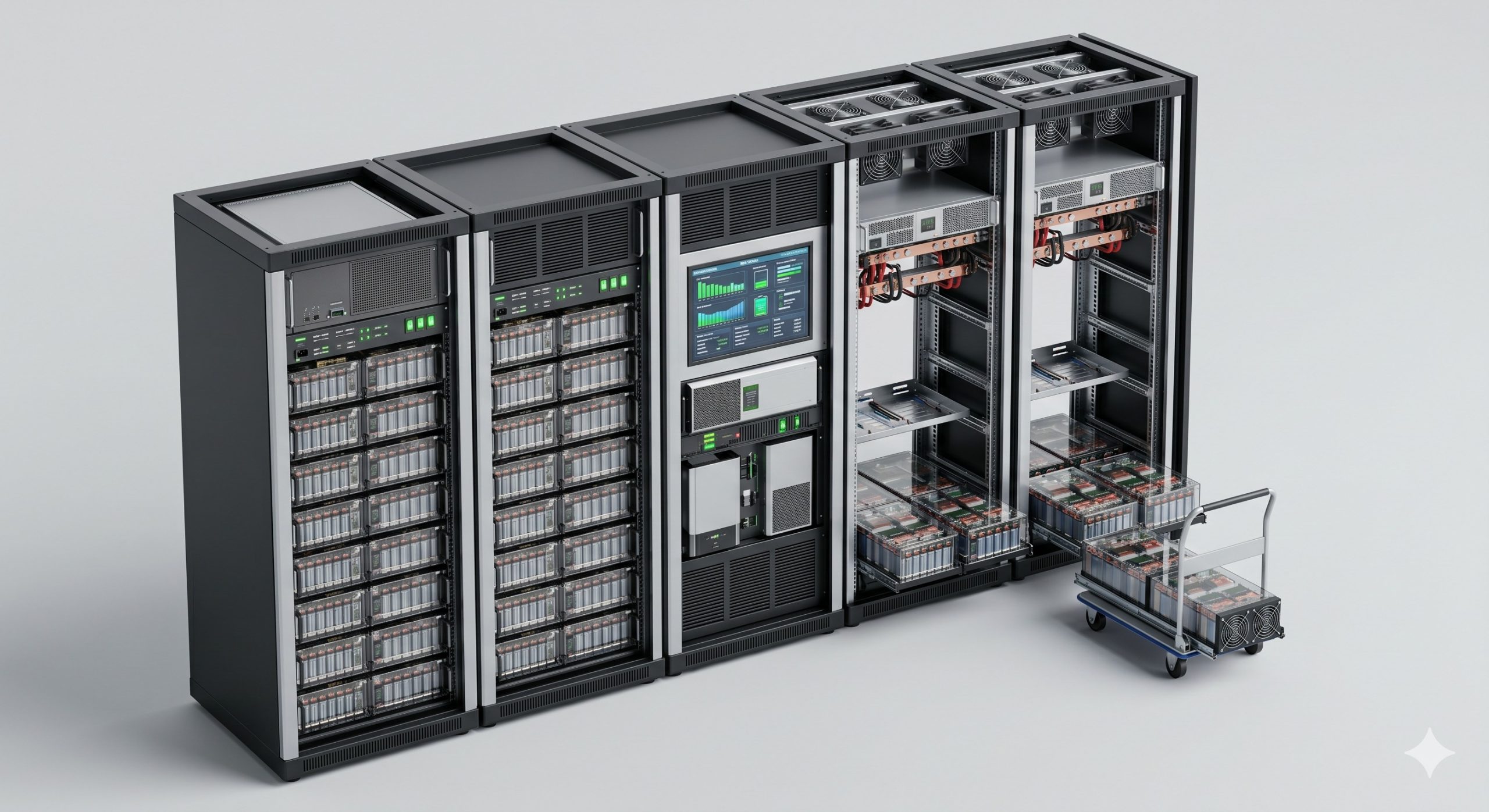

Our cabinet integrates multi-layer active BMS with cell-level voltage/temperature monitoring, passive balancing, and an NFPA 855/UL 9540A-compliant fire suppression system (aerosol + gas-based). The IP55 outdoor-rated enclosure houses liquid-cooled battery racks, a bi-directional PCS (up to 98.5% efficiency), and an EMS controller supporting on/off-grid switching within <20ms. Comprehensive certifications include UL 1973, IEC 62619, CE, UN38.3.

Technical Specifications

Core Electrical Parameters: Rated Capacity: 1000kWh–3000kWh | System Voltage: 768V–1500V DC | Max Charge/Discharge Rate: 0.5C (optional 1C) | Cycle Life: ≥6,000 cycles @ 25°C, 0.5C/0.5C, 90% DoD (EOL 70% SOH). Mechanical: Dimensions (single 1MWh unit): 2400x2200x2600mm | Weight: ~12 tons | Operating Temp: -20°C to 55°C (derated above 45°C). Warranty: 10 years / 6,000 cycles (performance prorated).

Technical Feature	Specification
Battery Chemistry	Tier-1 LFP (Lithium Iron Phosphate) prismatic cells
Cooling / Thermal Control	Active smart liquid cooling, ΔT ≤ 2.5°C between cells
Round-Trip Efficiency (DC)	92% @ 0.5C, 25°C
Cycle Life	≥6,000 cycles to 70% SOH @ 0.5C/0.5C, 90% DoD
Warranty	10-year performance (pro-rated), optional 10-year full O&M
Safety Certifications	UL 1973, IEC 62619, CE, UN38.3, UL 9540A (cell level)
Fire Suppression	Aerosol + per-rack nitrogen-based, NFPA 855 compliant
Communications	Ethernet, 4G/5G, Modbus TCP/RTU, IEC 61850
Enclosure Rating	IP55 (NEMA 3R) outdoor rated, anti-corrosion coating
Operating Temp Range	-20°C to +55°C (with liquid cooling active)

Application Scenarios

1. EV Supercharging Station Buffer

Integrate our Lithium Iron Phosphate ESS directly with solar canopies and high-power DC chargers (up to 350kW). The system reduces peak demand charges by over 40% and provides backup power for continuous station operation during grid faults. For a 12-stall station, a 1.5MWh cabinet ensures sustained 350kW charging without local transformer upgrades.

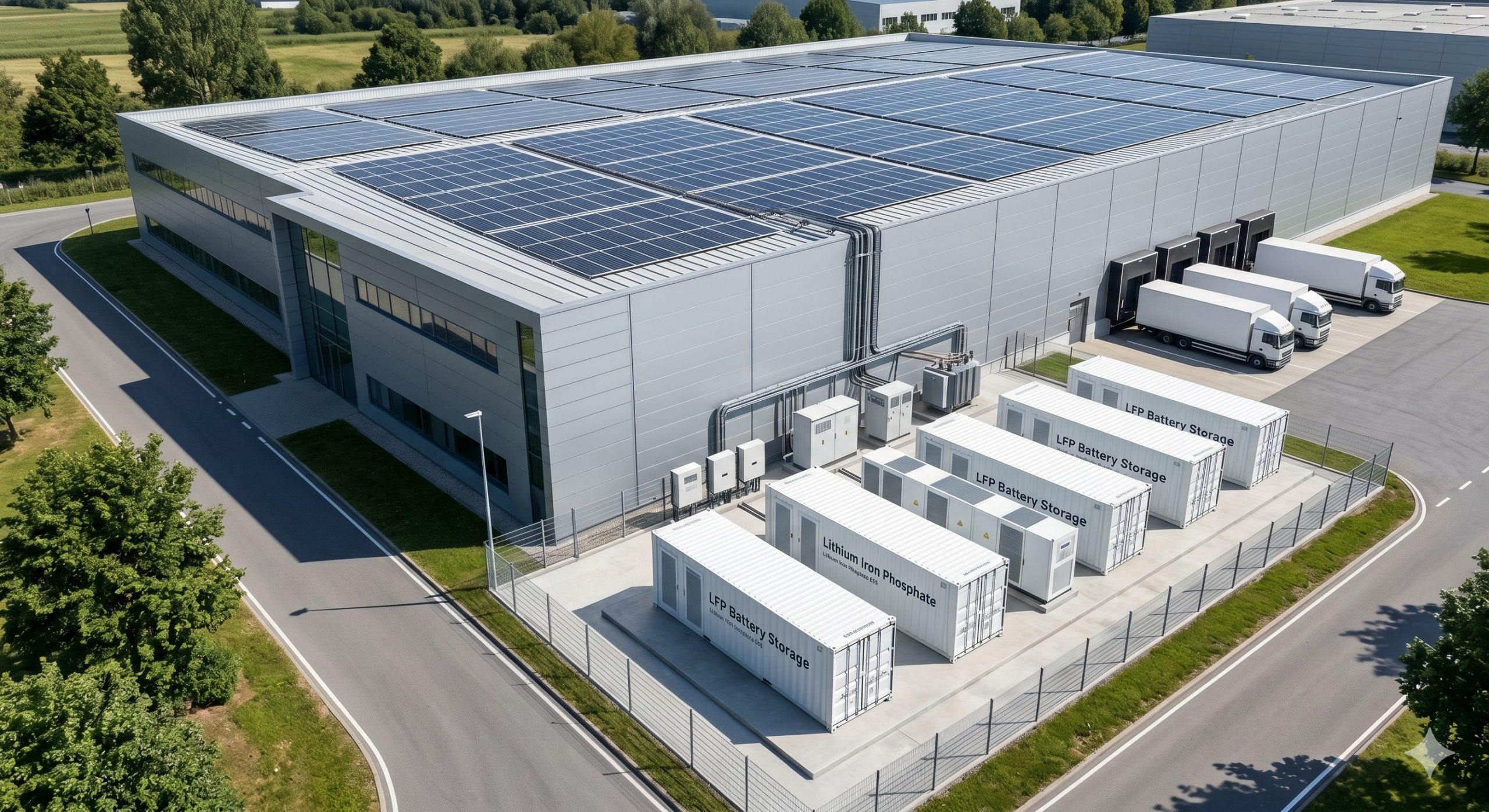

2. Industrial Peak Shaving & Demand Management

Manufacturing plants, data centers, and cold storage facilities achieve immediate utility bill savings. Our EMS learns load profiles and dispatches stored energy during tariff peaks, achieving payback $15/kW.

3. Micro-Grid & Islanded Operation

Enable energy independence for remote industrial parks, mines, or commercial complexes. Our cabinet provides black-start capability and seamless islanding (UL 1741 SA), working with diesel gensets as a hybrid micro-grid.

Supply Assurance & Global Logistics

We are a vertically integrated manufacturer with annual BESS production exceeding 5GWh. All units undergo rigorous factory acceptance testing (FAT) witnessed by SGS/TÜV. Global delivery via sea freight with full insurance, pre-delivery inspection, and door-to-door tracking. Dedicated project managers handle customs clearance for US, EU, Australia, Middle East, and Southeast Asia. Extended 10-Year Operational & Maintenance (O&M) contracts available, including remote diagnostics, annual capacity testing, and on-site part replacement.

Frequently Asked Questions

What is the actual usable capacity over 10 years?

Our Lithium Iron Phosphate cells guarantee ≥70% state-of-health (SOH) after 6,000 cycles or 10 years. With daily full cycling, usable capacity degrades linearly; we provide a performance prorated warranty ensuring your ROI projections are met.

Can I combine multiple cabinets for larger projects?

Yes. The system supports parallel connection of up to 10 cabinets (10MW total) via a shared AC bus or DC busbar. Our modular EMS synchronizes all units for unified dispatch, and we provide single-line diagrams for multi-cabinet interconnection.

What local certifications and grid codes do you support?

We supply region-specific models: UL 9540 + IEEE 1547 for North America; VDE-AR-N 4105 / G99 for Europe; AS/NZS 4777 for Australia. All units include active anti-islanding and reactive power control (PF 0.8 leading/lagging).

What is your lead time for a 2MW project?

Standard lead time for 1-2MWh systems is 30 days after deposit. For 3MWh+ or non-standard voltages, allow 45-50 days. Air freight sample units (single rack ~100kWh) can be delivered within 7 business days.

How do you handle remote O&M and firmware upgrades?

Every cabinet includes 4G/5G/Ethernet backhaul to our cloud EMS. Our 24/7 NOC performs real-time alarms, battery balancing adjustments, and over-the-air (OTA) firmware updates. You also receive a local SCADA interface with Modbus TCP/RTU for full control.
