COMMERCIAL SYSTEMS ENGINEERING REFERENCE MANUAL: ADVANCED BATTERY MANUFACTURING EXCELLENCE REPORT
EXECUTIVE SUMMARY
This document serves as the definitive engineering reference manual for the Advanced Battery Manufacturing Excellence Report, a next-generation commercial and industrial (C&I) energy storage platform. Engineered from the ground up to embody manufacturing excellence, this system integrates Tier-1 LFP cell technology with a state-of-the-art liquid cooling architecture to deliver best-in-class performance, safety, and longevity. Designed for high-cycle applications including peak shaving, demand response, and PV-storage-charging integration, the platform represents the zenith of our commitment to quality, precision, and relentless innovation. This overview provides a comprehensive technical datasheet and system architecture whitepaper for engineering, procurement, and project development teams.
SYSTEM ARCHITECTURE & SAFETY
The platform is built upon a modular, containerized architecture that prioritizes safety and operational resilience. The core of the system is a high-voltage DC busbar that interfaces with a bi-directional Power Conversion System (PCS), enabling seamless grid-interfacing and micro-grid islanding capabilities. The architecture is defined by three primary subsystems: the Battery Energy Storage System (BESS) rack, the Thermal Management System (TMS), and the Energy Management System (EMS).
Safety is a non-negotiable design principle, engineered at the cell, module, and system levels. The Advanced Battery Manufacturing Excellence Report incorporates multiple layers of protection, from a sophisticated Battery Management System (BMS) with active cell balancing to a multi-stage fire suppression system compliant with NFPA 855 and UL 9540A. The system features an advanced thermal runaway suppression engine, utilizing aerosol-based and water-mist fire extinguishing agents within the container, ensuring that any potential thermal event is contained and neutralized without endangering personnel or surrounding infrastructure.
KEY FEATURES
– Tier-1 LFP Cell Integration: Employs only premium, rigorously tested LFP cells known for their superior thermal stability and an industry-leading cycle life, ensuring safe and reliable operation for the entire project lifespan.

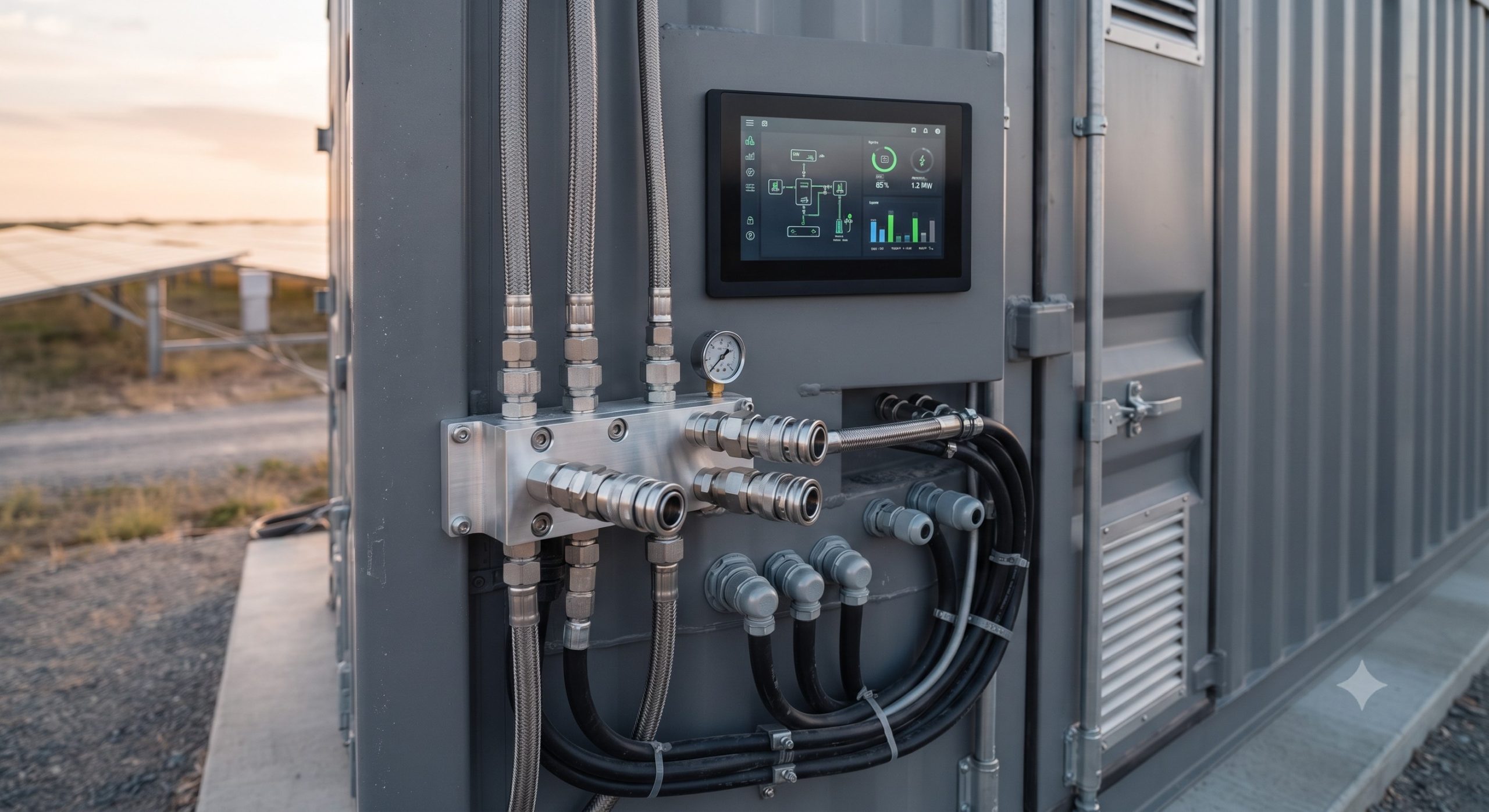

– Smart Liquid Cooling System: The advanced liquid cooling architecture maintains cell temperature variance within a tight +/-2°C band, dramatically enhancing round-trip efficiency, prolonging battery life, and enabling consistent performance in extreme ambient temperatures from -30°C to +55°C.
– High-Voltage DC Busbar: Operates at a nominal DC voltage of 1500V, minimizing current and ohmic losses, which allows for efficient power transfer and reduces system costs through smaller cable cross-sections and simplified parallel expansion configurations.
– Modular & Scalable Design: The system is designed for straightforward parallel expansion using a standardized DC busbar, enabling capacity scaling from a single cabinet to multi-MWh sites without complex re-engineering.
– Active Battery Balancing Protocol: The proprietary BMS algorithm performs dynamic active balancing, maximizing usable capacity by ensuring each cell operates at its optimal state-of-charge, which reduces the impact of cell-to-cell variance.
– Enhanced Cyber-Security: The EMS includes robust, multi-layer cyber-security protocols, ensuring secure remote monitoring and control, protecting critical grid infrastructure from potential threats.
COMPLIANCE & STANDARDS
This system is manufactured to meet the most stringent global compliance and safety standards, ensuring a seamless path to project approval and grid interconnection. The following certifications are a testament to our manufacturing excellence and commitment to safety and reliability.
– UL 9540: Standard for Energy Storage Systems and Equipment, ensuring the system is certified for safety in the North American market.
– UL 9540A: Test method for evaluating thermal runaway fire propagation in battery energy storage systems, confirming the effectiveness of our containment and suppression systems.
– IEC 62619: Safety requirements for secondary lithium cells and batteries for use in industrial applications, an international benchmark for battery safety.
– IEC 62477: Safety requirements for power electronic converter systems and equipment, validating the safety of our PCS.
– UN 38.3: Certifying the safe transport of our lithium-ion batteries.
– IEEE 1547: Standard for Interconnection and Interoperability of Distributed Energy Resources with Associated Electric Power Systems Interfaces.
TECHNICAL SPECIFICATIONS
ELECTRICAL
– Nominal Voltage (DC): 1500 V
– Operating Voltage Range: 1000 V – 1500 V
– Max. DC Current per Cabinet: 250 A
– Round-trip Efficiency (DC): ≥ 94%
– Grid Frequency: 50 / 60 Hz
– Total Harmonic Distortion (THD): < 3% (at full load)
GENERAL
- Cooling Method: Smart Liquid Cooling (Ethylene Glycol / Water mix)
- Cell Chemistry: Tier-1 Lithium Iron Phosphate (LFP)
- Enclosure Rating: IP65 / NEMA 4X
- Operating Temperature Range: -30°C to +55°C (with derating above 50°C)
- Storage Temperature Range: -40°C to +70°C
- Relative Humidity: 0% – 95% (non-condensing)
- Maximum Altitude: 2000 m (above sea level, no derating)
- Communication Protocols: Modbus TCP/IP, CAN, IEC 61850, DNP3
- Dimensions (W x H x D): 6058 mm x 2896 mm x 2438 mm (Standard 20ft ISO Container)
- Weight (approx.): 25,000 kg
- Audible Noise: ≤ 75 dB(A) at 1 meter
- Warranty: 10 Years / 8000 Cycles (prorated, up to 85% capacity retention)
| Parameter | Specification |
|---|---|
| Nominal Energy Capacity (per cabinet) | 372 kWh |
| Usable Energy Capacity (per cabinet, 90% DoD) | 334.8 kWh |
| Maximum Power (Charge / Discharge) | 186 kW / 186 kW (0.5C) |
| Peak Power (Charge / Discharge, 10s) | 223 kW / 223 kW (0.6C) |
| Cell Cycle Life (@ 25°C, 0.5C, EOL 80%) | ≥ 8,000 cycles |
| Battery Management System (BMS) | Distributed, centralized controller with passive & active balancing |
| Thermal Management System (TMS) Control | Compressor-based heat pump with PID control, intelligent set-point management |
| Fire Suppression System | Dual-stage: Aerosol generator for early stage, water-mist for active fire suppression |
| Auxiliary Power Consumption (Standby) | < 1.5 kW |
| Grid Interfacing (PCS) | Bi-directional 4-quadrant IGBT inverter, with seamless transfer switching |
SYSTEM PARAMETER REGISTRY
| Parameter | Specification |
| :— | :— |
| Nominal Energy Capacity (per cabinet) | 372 kWh |
| Usable Energy Capacity (per cabinet, 90% DoD) | 334.8 kWh |
| Maximum Power (Charge / Discharge) | 186 kW / 186 kW (0.5C) |
| Peak Power (Charge / Discharge, 10s) | 223 kW / 223 kW (0.6C) |
| Cell Cycle Life (@ 25°C, 0.5C, EOL 80%) | ≥ 8,000 cycles |
| Battery Management System (BMS) | Distributed, centralized controller with passive & active balancing |
| Thermal Management System (TMS) Control | Compressor-based heat pump with PID control, intelligent set-point management |
| Fire Suppression System | Dual-stage: Aerosol generator for early stage, water-mist for active fire suppression |
| Auxiliary Power Consumption (Standby) | < 1.5 kW |
| Grid Interfacing (PCS) | Bi-directional 4-quadrant IGBT inverter, with seamless transfer switching |
INDUSTRIAL DEPLOYMENT & APPLICATION CONTEXT
This system is designed for a variety of heavy-load applications, providing strategic value for industrial parks, commercial buildings, and EV supercharging hubs. The exceptional power density and robust thermal management of the Advanced Battery Manufacturing Excellence Report make it an ideal choice for sites with high demand charges. When paired with on-site PV generation, the system acts as a PV-storage-charging hub, enabling a facility to achieve near-total grid independence, reduce its carbon footprint, and generate a significant return on investment through energy arbitrage and demand charge mitigation.

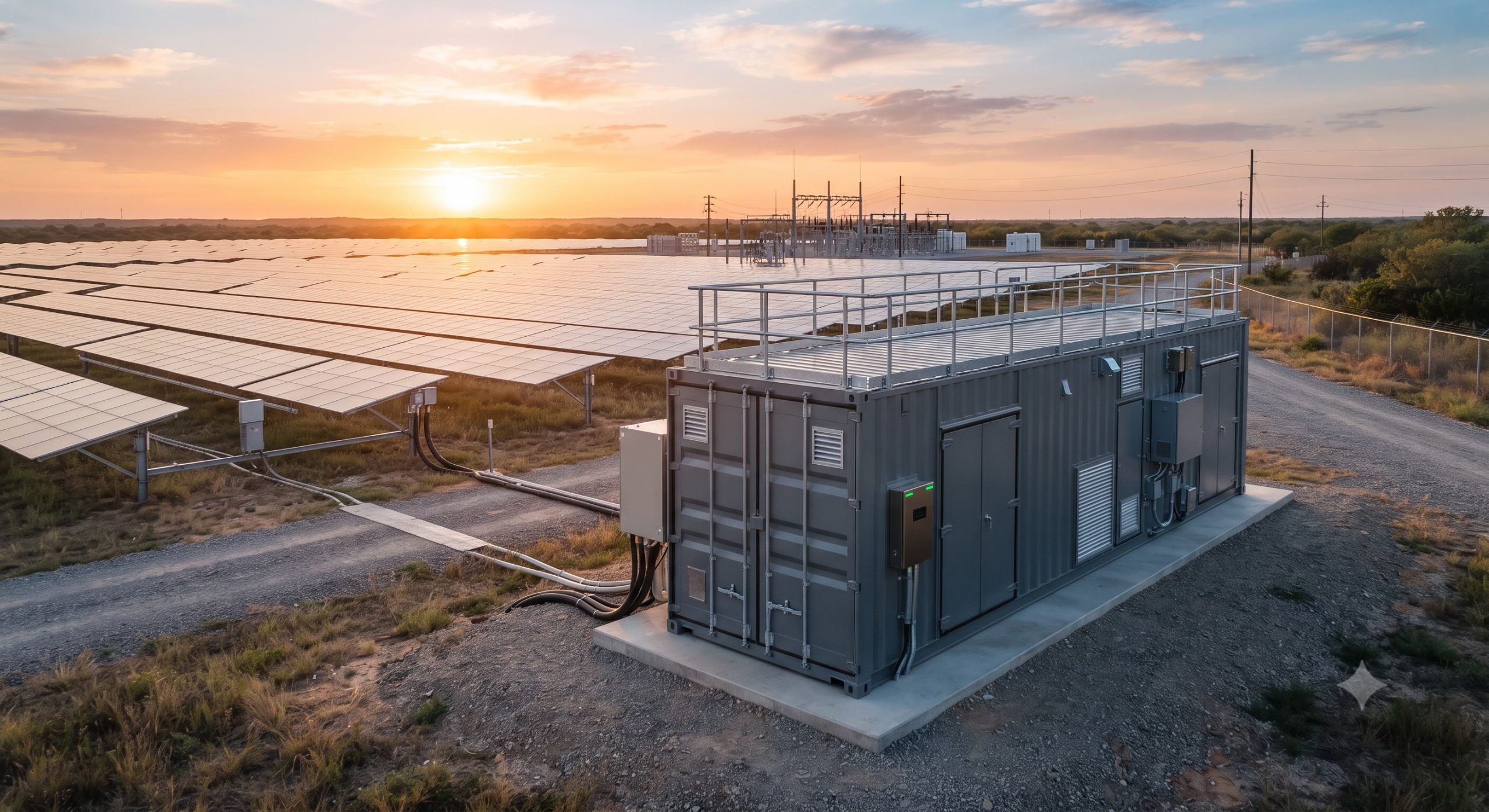

The ability to parallel multiple 372 kWh cabinets via the high-voltage DC busbar allows for the creation of MWh-scale storage farms that can be easily staged and commissioned. The reinforced outdoor housing allows for ground or pad mounting without the need for a dedicated building, drastically reducing civil works and deployment time. The cloud-based O&M platform provides real-time monitoring and predictive analytics, enabling a proactive maintenance approach that ensures maximum system uptime and a class-leading levelized cost of storage (LCOS).
