COMMERCIAL SYSTEMS ENGINEERING REFERENCE MANUAL: BATTERY MANAGEMENT SYSTEM CONFIGURATION GUIDE

EXECUTIVE SUMMARY

This document serves as the definitive engineering reference for the configuration, deployment, and operational optimization of the Battery Management System (BMS) within our Tier-1 commercial energy storage platforms. Designed for system integrators, facility engineers, and procurement specialists, this manual details the sophisticated logic, communication protocols, and safety architectures that ensure maximum asset longevity, grid-code compliance, and financial performance. Our BMS is not merely a monitoring tool; it is the cognitive core of the energy storage system, orchestrating cell-level balancing, thermal regulation, and grid interaction with precision.

SYSTEM ARCHITECTURE & SAFETY PROTOCOLS

The BMS architecture is built upon a distributed, multi-layered control topology to ensure redundancy and fail-safe operation. At the heart of the system is the Central BMS Controller, which communicates with high-speed CAN bus and Modbus TCP/IP to a network of Slave BMS modules attached to each battery rack. This master-slave configuration allows for granular data acquisition while maintaining a singular, unified command interface.

Critical to our design is the implementation of a three-tier safety strategy:
1. **Primary Protection (Hardware):** Independent, hardware-based over-voltage and over-current protection circuits that operate instantaneously, bypassing software latency to guarantee cell safety.
2. **Secondary Protection (Software):** The central controller executes advanced state-of-charge (SoC) and state-of-health (SoH) algorithms to dynamically adjust charge/discharge rates, preventing operation beyond safe thresholds.
3. **Tertiary Protection (System):** Integration with the site’s fire suppression panel and emergency stop (E-Stop) system allows for a complete, zero-current system shutdown upon detection of environmental anomalies.

KEY FEATURES

– **Intelligent Passive & Active Balancing:** Our system employs a hybrid balancing strategy. Passive balancing is utilized during standard float charging to equalize cell voltages, while active balancing is engaged during high-current cycling to transfer energy between cells, maximizing usable capacity and reducing energy waste. This results in a cycle life improvement of up to 15% compared to purely passive systems.
– **Predictive SoH Analytics:** The BMS leverages machine learning models to analyze internal resistance trends and capacity fade. This provides asset owners with predictive maintenance alerts and a transparent, data-backed assessment of the system’s remaining useful life, crucial for warranty claims and secondary market valuation.

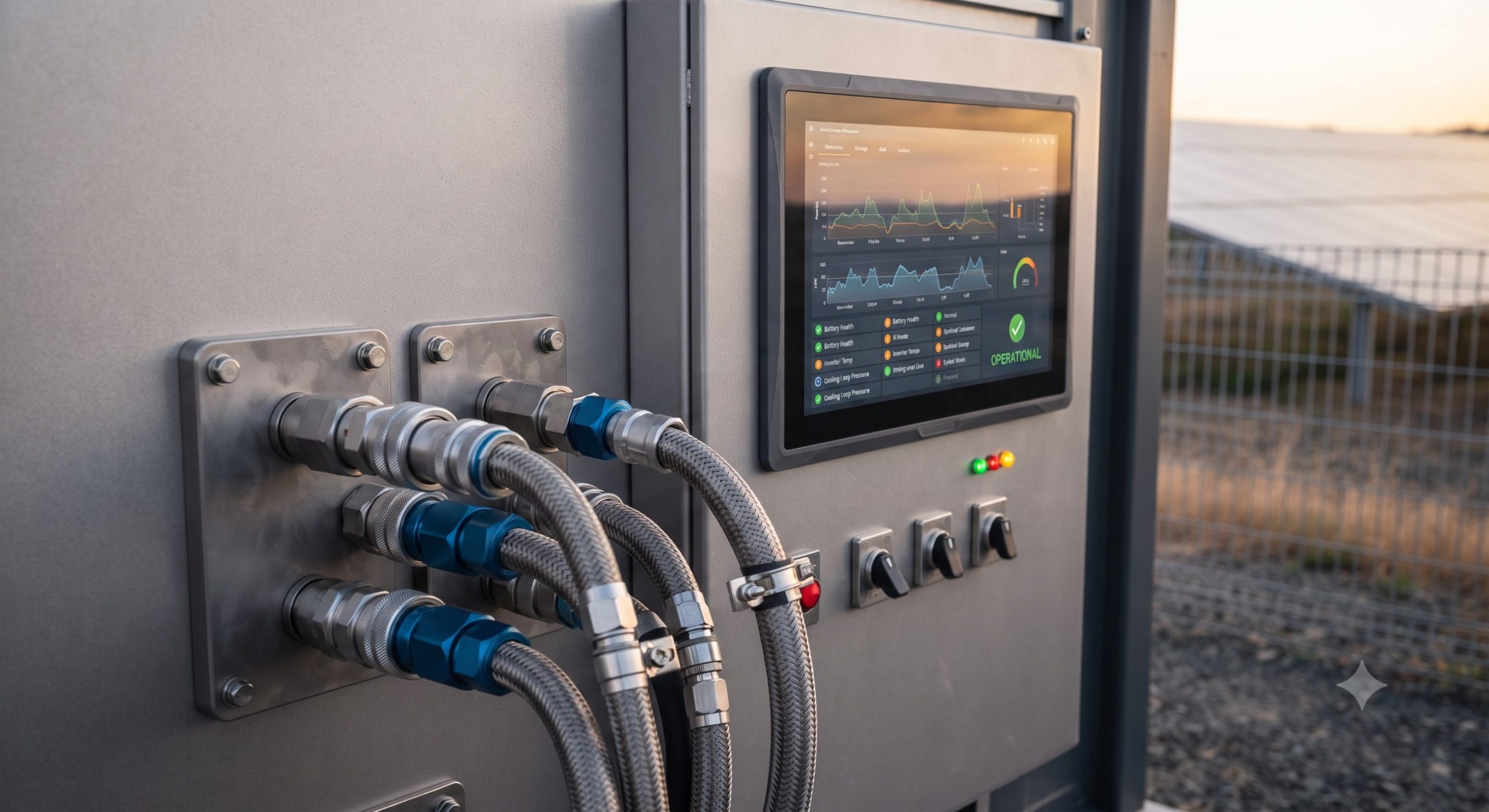

– **Adaptive Thermal Management:** The BMS directly controls the liquid cooling system’s variable-speed pumps and fans. It does not rely solely on static setpoints but uses predictive thermal modeling based on load forecasts to pre-cool the battery modules, ensuring that peak operating temperatures remain below 35°C even during aggressive 1C charging cycles.
– **Cybersecurity & Remote Access:** Industrial-grade firewall and encrypted communication protocols (TLS 1.3, IEC 62351) are standard. Remote firmware updates are executed through a secure, role-based access control portal, allowing for seamless feature enhancements and compliance updates without costly site visits.
– **Grid-Specific Customization:** The BMS configuration menu includes pre-set profiles for frequency regulation, peak shaving, renewable firming, and backup power. This allows for rapid re-configuration of the system’s response characteristics to adapt to changing tariff structures or grid service opportunities.

COMPLIANCE & STANDARDS

The BMS and its integration have been certified to the most stringent international standards:
– **UL 9540 (Safety of Energy Storage Systems)** – Full system certification, not just component-level.
– **UL 1973 (Batteries for Use in Stationary Applications)** – Ensuring the battery modules meet the highest fire and shock safety requirements.
– **IEC 62619 (Secondary Cells and Batteries – Safety Requirements)** – Compliant with European safety directives.
– **IEC 61508 / IEC 61511 (Functional Safety)** – The BMS is designed with SIL-2 rated components for critical sensing pathways.
– **IEEE 1547 (Interconnection Standard)** – Compliance for grid-interactive inverters ensures smooth integration with utility networks.

TECHNICAL SPECIFICATIONS

**BMS CONFIGURATION PARAMETERS (RECOMMENDED)**

Parameter	Specification	Configuration Note
Cell Balancing Voltage Threshold	3.55V ± 5mV	Factory calibrated; adjusts based on cell chemistry aging.
Maximum Charge Current (Continuous)	0.5C (Nominal) / 0.8C (Peak 15 min)	Configurable via BMS software to match grid profile.
Maximum Discharge Current (Continuous)	0.5C (Nominal) / 1.0C (Peak 10 min)	Limited by thermal envelope and warranty conditions.
Float Charge Voltage (System)	715V DC (for 200Ah cells)	Adjustable based on site-specific DOD requirements.
Operating Temperature Range (Ambient)	-20°C to 50°C (Derated above 45°C)	System will initiate self-protection at temperature limits.
SoC Accuracy	± 2% (After 5 cycles)	Based on advanced Coulomb counting and Kalman filtering.
Communication Interfaces	Ethernet (Modbus TCP), CAN 2.0B, RS-485	Dual-redundant Ethernet available as an option.

**SYSTEM TOPOLOGY**

– **Scalability:** The BMS architecture supports parallel connection of up to 20 cabinets ( 7.44 MWh total capacity) without requiring a separate central management controller. The system uses a daisy-chained communication bus for seamless expansion.
– **Integration:** Comprehensive libraries for SunSpec, Modbus, and DNP3 are pre-loaded, offering plug-and-play compatibility with major EMS and SCADA platforms.
