EXECUTIVE SUMMARY

This document serves as the definitive technical reference for the B2B Battery Supply Chain Optimization Guide, a comprehensive commercial energy storage platform engineered for industrial, commercial, and utility-scale applications. Designed to address the critical challenges of supply chain volatility, energy arbitrage, and peak demand management, this system integrates Tier-1 LFP cell technology, advanced liquid thermal regulation, and a modular, containerized architecture. The platform ensures maximum operational uptime, predictable return on investment, and seamless integration with existing PV, EV charging, and micro-grid infrastructures.

This datasheet provides system architects, procurement specialists, and facility engineers with the essential technical specifications, compliance certifications, and operational logic required to deploy and maintain a resilient energy storage asset.

SYSTEM ARCHITECTURE & SAFETY

The B2B Battery Supply Chain Optimization Guide is built upon a rigorously tested, modular hardware platform that prioritizes safety, scalability, and performance. At its core, the system utilizes a high-voltage DC bus architecture combined with a fully integrated Battery Management System (BMS) and a bi-directional Power Conversion System (PCS).

**Architecture Overview:**
The system is typically configured within a standard 20-foot or 40-foot ISO container or a compact outdoor cabinet, housing the battery racks, liquid cooling distribution unit, fire suppression system, and local control panel. The architecture supports multiple independent DC branches, enabling parallel expansion for MWh-scale projects.

**Safety Hierarchy:**
– **Cell-Level Protection:** Multi-layer fuse and isolation mechanisms within each LFP cell module.
– **Module-Level Monitoring:** Individual voltage and temperature sensing per cell.
– **Rack-Level Shutdown:** Contactor-based isolation for rapid disconnection.
– **System-Level Response:** Integration with a multi-stage fire suppression system utilizing aerosol and gas-based agents, compliant with NFPA 855 and UL 9540A.

KEY FEATURES
– **Tier-1 LFP Cell Integration:** Utilizes automotive-grade, prismatic LFP cells for unmatched cycle life, thermal stability, and cobalt-free chemistry, ensuring a safe and sustainable supply chain.

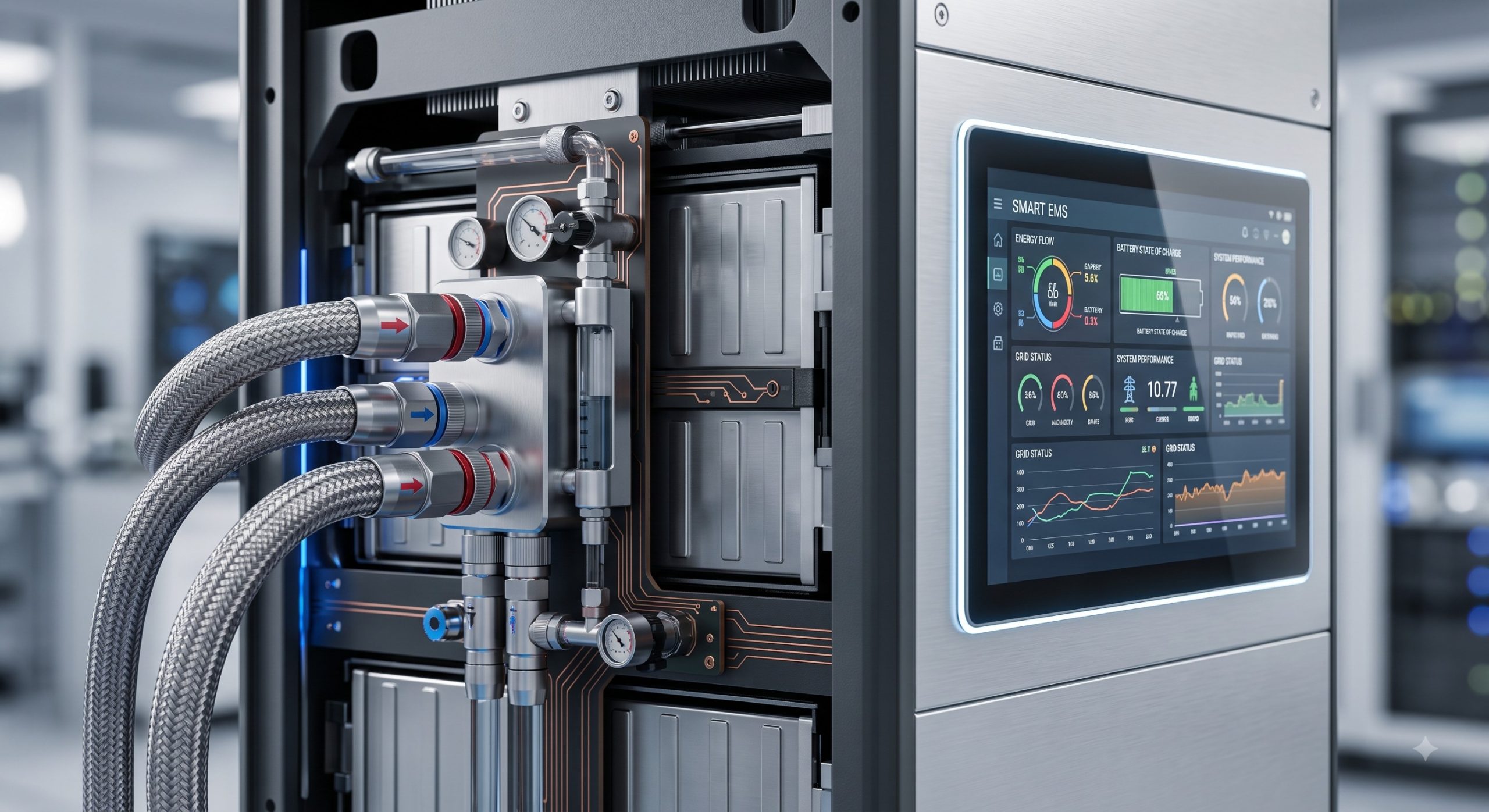

– **Advanced Liquid Cooling & Thermal Regulation:** Maintains cell temperature variance within ±2°C, significantly enhancing cycle life by up to 20% and enabling consistent performance in ambient temperatures ranging from -30°C to +55°C.
– **Modular & Scalable Cabinet Architecture:** Supports parallel connection of up to 10 units without additional central controllers, allowing for flexible capacity expansion from 215 kWh to over 2 MWh per site.
– **Seamless EMS & PCS Integration:** Pre-verified communication protocols (Modbus TCP/IP, CAN) ensure plug-and-play integration with leading Energy Management Systems and bi-directional inverters for peak shaving, load shifting, and islanding.

COMPLIANCE & STANDARDS

The B2B Battery Supply Chain Optimization Guide platform is certified to the most rigorous international safety and performance standards, ensuring global bankability and seamless regulatory approval.

– **Safety Certifications:** UL 9540 (Energy Storage Systems and Equipment), UL 9540A (Thermal Runaway Fire Propagation), IEC 62619 (Secondary Cells and Batteries – Safety Requirements).
– **Grid Interconnection:** IEEE 1547, UL 1741 (Inverters, Converters, Controllers), VDE-AR-E 2510-50 (Stationary Storage Systems).
– **Environmental Protection:** IP55 / NEMA 3R enclosure rating, ensuring robust performance in outdoor and industrial environments.
– **Transportation:** UN38.3 (Lithium Battery Transport) compliant.

TECHNICAL SPECIFICATIONS

Parameter	Specification
Nominal Capacity	215 kWh / 372 kWh per cabinet
System Voltage (DC)	768 V / 896 V
Cooling Method	Smart Liquid Cooling with Active Chiller (ΔT ≤ ±2°C)
Cell Chemistry	Tier-1 Prismatic LFP
Round-Trip Efficiency	≥ 92% (DC/DC)
Operating Temperature Range	-30°C to +55°C
IP Rating	IP55 / NEMA 3R
Communication Protocol	Modbus TCP/IP, CAN, IEC 61850
Cycle Life	≥ 8,000 cycles (at 25°C, 0.5C, 80% EOL)
Warranty	10-Year Standard / 15-Year Extended
Dimensions (mm)	6058 (L) x 2438 (W) x 2896 (H)
Weight	≤ 28 tons (depending on configuration)
Fire Suppression	Aerosol + Gas-based system with early warning sensors

INDUSTRIAL DEPLOYMENT

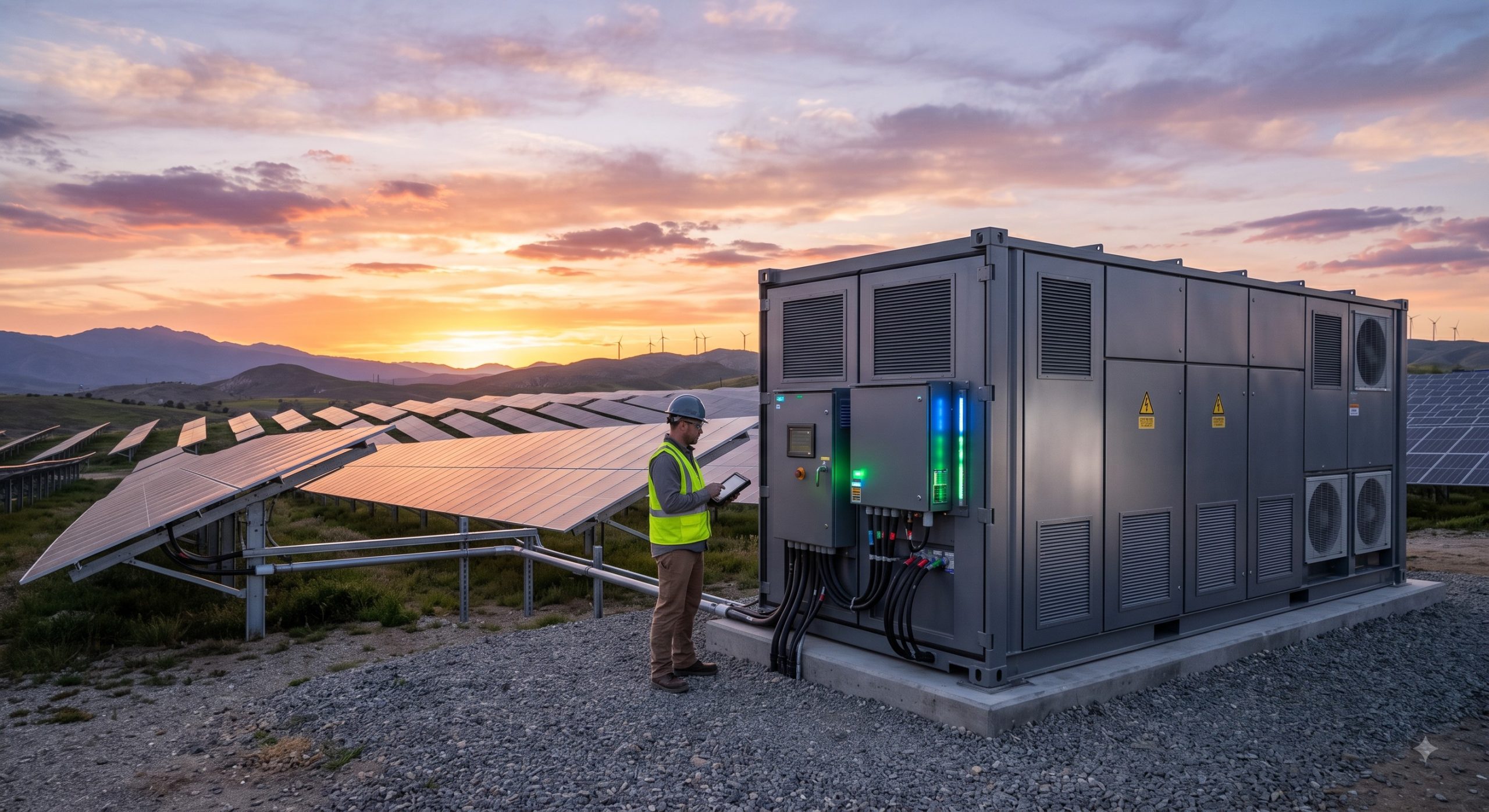

Deploying the B2B Battery Supply Chain Optimization Guide platform requires careful planning of the site’s electrical infrastructure and environmental conditions. The system is designed for outdoor, pad-mounted installation.

**Pad Prerequisites:**
– **Concrete Foundation:** A flat, level concrete pad with a minimum compressive strength of 28 MPa.
– **Clearance:** Minimum 1 meter clearance on all sides for airflow and maintenance access.
– **Cable Trench:** Pre-installed conduits for AC power, DC power, and communication cables.

**Grid Interfacing Logic:**
– **Peak Shaving:** The system dispatches stored energy during peak tariff periods, reducing demand charges.
– **Load Shifting:** Charges during low-cost off-peak hours and discharges during high-cost on-peak hours.
– **PV Self-Consumption:** Stores surplus solar generation for use during evening hours or cloudy periods.
– **Backup Power:** Provides seamless islanding capability for critical loads during grid outages.

**Recommended Facility Layouts:**
For optimal performance and safety, it is recommended to position the unit away from high-traffic areas and flammable materials. A dedicated, fenced-in area with clear safety signage is standard practice. The pad should be oriented to allow for direct, short cable runs to the main switchgear and any on-site PV inverters.
