Introduction: The Strategic Imperative of Advanced BMS in Modern C&I Infrastructure
In the current landscape of volatile energy markets and aggressive sustainability mandates, the commercial and industrial (C&I) sector faces unprecedented pressure to optimize energy consumption. The Battery Management System (BMS) has evolved from a simple protective circuit into the central nervous system of modern energy storage solutions . For system architects and facility managers, the BMS is the critical enabler of peak shaving, demand response, and seamless grid integration. A high-performance BMS is not merely a safety component; it is a strategic asset that maximizes the return on investment for assets ranging from 100 kWh cabinets to multi-MWh containerized solutions . This guide provides a deep technical dive into BMS architecture, its integration with Power Conversion Systems (PCS) and Energy Management Systems (EMS), and its role in unlocking value in micro-grids and virtual power plants (VPPs).
Core Architecture & Battery Management: Beyond Basic Monitoring
Topology: From Cell-Level to Distributed Hierarchies
The architecture of a commercial BMS is dictated by system scale and safety requirements. For large-scale C&I projects, a distributed architecture is increasingly standard, deploying local monitoring circuits (slave boards) on each module or cell, with a central controller (master) aggregating data . This contrasts with simpler pack-level BMS designs found in smaller systems. The choice significantly impacts diagnostic granularity and fault tolerance. In high-density deployments with over 2,000 cells, a modular approach combining cell-level voltage and temperature sensing with a central processing unit is essential for maintaining efficiency and safety .
State Estimation Algorithms: The Core Intelligence
The accuracy of state estimation is the primary metric defining BMS quality. Advanced BMS units employ Kalman filtering and machine-learning models to calculate State of Charge (SOC) with an industry-leading precision of ±2-3%, far surpassing simple voltage-based coulomb counting . Beyond SOC, the BMS must accurately determine State of Health (SOH) to project remaining useful life (RUL) and State of Power (SOP) to ensure immediate performance availability . High-end systems like Narada’s BMS achieve single-cell voltage measurement errors within ±1.5 mV and current acquisition accuracy under ±0.3%, ensuring the reliability of full-lifecycle data collection for precision SOC estimation .
Thermal Management Integration: Liquid vs. Air Cooling
Thermal control is paramount, as lithium-ion cells degrade 20-50% faster when consistently exposed to temperatures above 45°C . The BMS actively manages thermal systems to maintain optimal temperature ranges. Advanced liquid cooling solutions are gaining traction in C&I for their superior efficiency, with systems like the HoyUltra 2 integrating fully liquid-cooled BMS architectures to maintain tight temperature differentials (e.g., <3°C across the pack) . This precision extends cycle life and ensures consistent performance. The BMS controls coolant flow rates, valve positions, and fan speeds via data from embedded thermistors .
Safety Protocols: Preventing Thermal Runaway
Safety is the non-negotiable foundation of BMS design. The BMS acts as the primary defense against thermal runaway, monitoring for voltage anomalies and temperature spikes and initiating immediate system disconnect to prevent catastrophic events . This is complemented by multi-level protection layers including insulation monitoring, contactor control, and fire suppression system integration . BMS-triggered early shutdown prevents over 95% of potential thermal incidents in properly designed systems .
Technical Specifications
For an architect or procurement specialist, specific metrics are non-negotiable. The following table details the critical specifications and target values for a modern, high-performance C&I BMS:
| Key Parameter | Technical Specification |
|---|---|
| Battery Chemistry | Tier-1 LFP (Lithium Iron Phosphate) with >7,000 cycles @ 90% DoD |
| System Capacity (Range) | 50 kWh to 5+ MWh (Modular/Containerized) |
| Communication Protocol | CAN Bus, Modbus TCP/IP, Ethernet |
| State Estimation Accuracy | SOC: ±2-3% (Kalman Filter); Voltage Measurement: ±1.5 mV |
| Thermal Management | Liquid Cooling with intelligent temperature control (ΔT <3°C) or Forced Air |
| Safety & Compliance | UL 9540, IEC 62619, UN38.3 |
| Round-trip Efficiency | >90% (System level with liquid cooling PCS integration) |
Commercial ROI & Grid Support
Peak Shaving and Arbitrage Optimization
The primary financial driver for C&I energy storage is peak shaving and energy arbitrage. The BMS plays a decisive role here by enabling an intelligent dispatch strategy. By accurately forecasting SOC and coordinating with the EMS, the BMS ensures the battery is discharged during expensive peak demand periods and charged during low-cost periods. In industrial parks, a 5 MW/10 MWh system can perform two full charge-discharge cycles daily, generating significant daily revenue through arbitrage . This intelligent cycle management is crucial for Total Cost of Ownership (TCO).
Demand Response and VPP Readiness
With the growth of Virtual Power Plants (VPPs), the ability to respond to grid signals is increasingly valuable. Modern BMS platforms feature bidirectional communication interfaces (CAN bus, Modbus TCP/IP) that allow external dispatch signals to adjust charge/discharge rates in real time (often with millisecond response times) . This supports critical ancillary services like frequency regulation and demand-side response, turning the storage asset into a revenue-generating grid resource .
Deployment Scenarios
The versatility of a robust BMS architecture allows for deployment across a wide range of C&I applications:

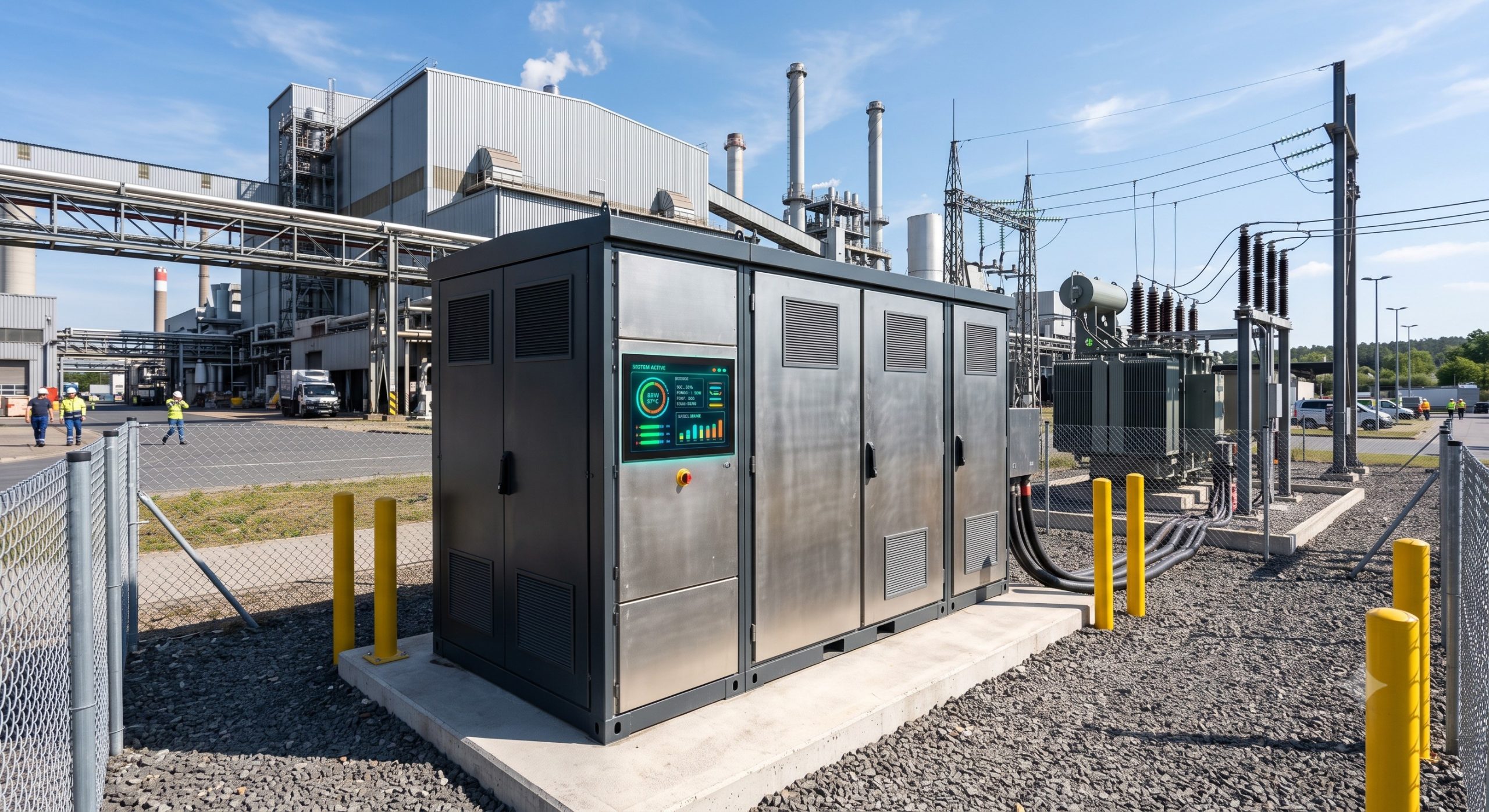

- Industrial Parks and Manufacturing: Mitigating power restrictions, reducing demand charges, and ensuring production stability. A BMS capable of active balancing and high accuracy is essential for high-intensity two-charge/two-discharge operations .

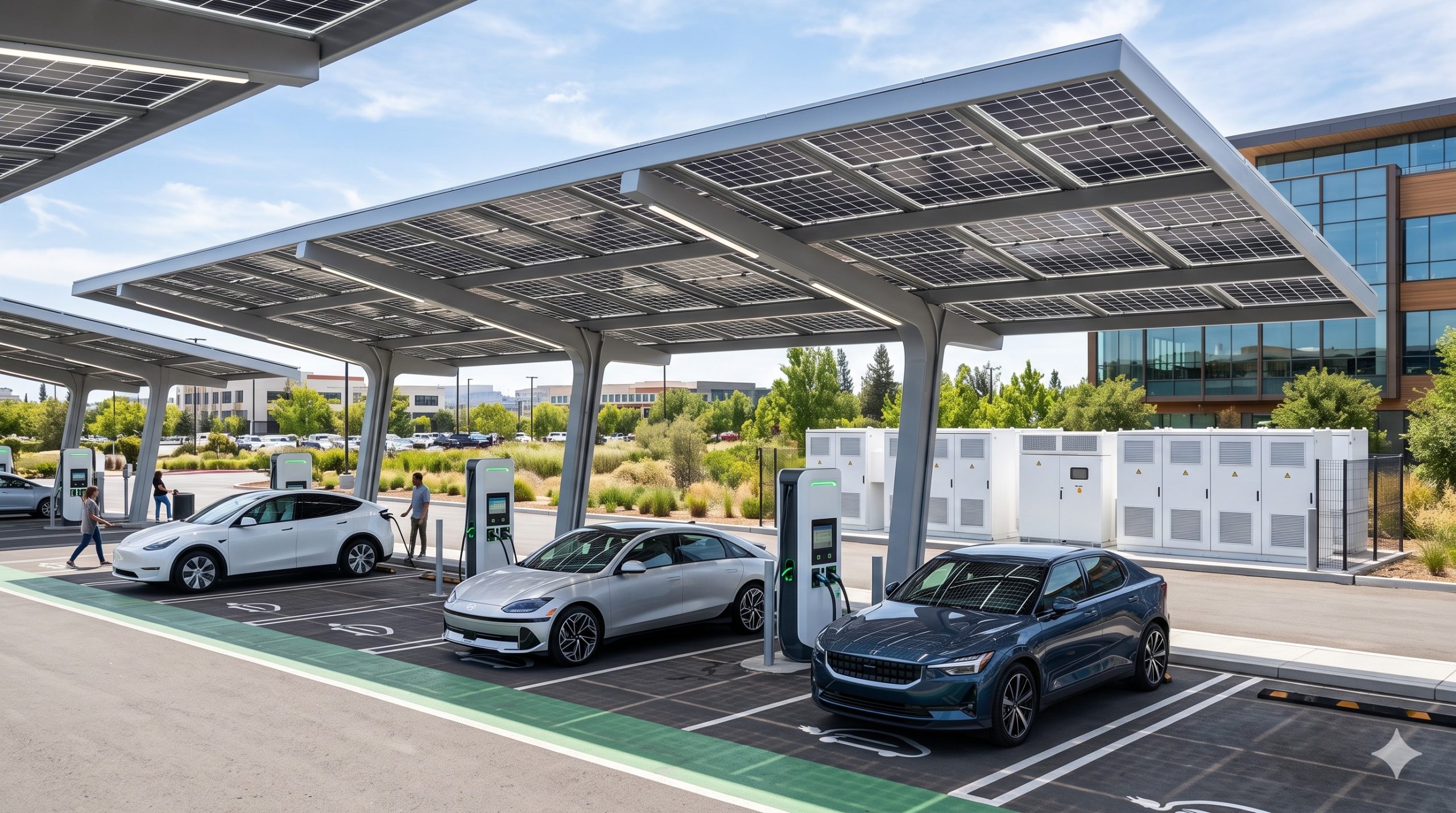

- PV-Storage-Charging (光储充) Hubs: The BMS acts as the central coordinator for EV supercharging stations, managing dynamic loads from solar canopies and rapid charging cycles .
- Micro-grids and Off-Grid Operations: Providing energy independence and grid stability where grid access is unreliable or unavailable, often requiring seamless off-grid transition capabilities .
Conclusion: The BMS as a Long-Term Strategic Asset
The selection of a Battery Management System is a strategic decision that influences every aspect of C&I energy storage performance, from initial CAPEX to long-term OPEX. As compliance standards like IEC 62619 and UL 9540 become more rigorous, the BMS must offer demonstrable reliability and safety . The integration of cloud-based AI algorithms and digital twin analytics is the next frontier, promising to further optimize energy storage performance, reduce O&M costs, and maximize the lifecycle value of assets . For the modern system architect, the BMS is the keystone of a resilient, profitable, and sustainable energy strategy.
