Overview
For utility-scale BESS, the expected degradation rate over 10 years is a critical metric for project finance, ROI, and operational planning. Our expert technical guide answers the most pressing pre-sales and post-sales questions to help you accurately forecast capacity fade, warranty terms, and overall system value. From cell chemistry and thermal management to BMS calibration and safety integration, we provide the definitive data plant engineers and procurement teams need.
Frequently Asked Questions
- Q1: What is the expected degradation rate of a utility-scale LFP battery over 10 years?
- The expected degradation rate for a Tier-1 LFP battery is between 20% and 25% capacity fade over 10 years (80% to 75% State of Health remaining), which equates to roughly 2% to 2.5% per year, depending on operating conditions. This rate is validated under standard 25°C ambient temperature and 0.5C charge/discharge rates. Advanced liquid cooling and precise BMS balancing keep the battery within this optimal range, significantly reducing the calendar aging effect compared to standard NMC chemistries.
- Q2: How does operating temperature affect the 10-year degradation profile?
- Temperature is the primary accelerator of degradation: every 10°C increase above 25°C doubles the degradation rate, potentially pushing 10-year capacity loss to over 40%. To counter this, our systems use a closed-loop liquid cooling system that maintains the cells within a 22°C to 28°C window, ensuring the degradation stays on the predicted linear curve. This thermal control is essential to preserve the 10-year warranty and maximize energy throughput over the system’s lifetime.
- Q3: What is the maximum cycle life and DoD for utility-scale BESS?
- The maximum cycle life is 6,000 to 8,000 cycles at 90% Depth of Discharge (DoD) for LFP cells, with the potential to exceed 10,000 cycles at 80% DoD. This high cycle life is achieved through a combination of low-voltage cell design, precise active cell balancing, and a conservative charge/discharge profile managed by the BMS. For 10-year degradation planning, you can expect to maintain over 70% capacity even after 10,000 cycles, ensuring the system remains a profitable asset for peak shaving and frequency regulation.
- Q4: How does the Battery Management System (BMS) monitor and slow degradation?
- The BMS monitors cell voltage, internal resistance, and temperature at the individual cell level every 100ms, performing inter-cell balancing to prevent any single cell from overcharging or deep-discharging. By actively equalizing cell voltages and limiting the max C-rate during high grid-demand events, the BMS reduces electrical stress, which is a key factor in maintaining the 10-year linear degradation curve. The data is also used for predictive analytics, allowing for early intervention before degradation accelerates.
- Q5: What is the role of the cooling system in preventing degradation and thermal runaway?
- The liquid cooling system is the primary safeguard against both accelerated degradation and thermal runaway; it extracts heat directly from cell pouches, keeping temperature variance across the pack to less than 2°C. This uniform cooling prevents hot spots that can lead to lithium plating (capacity loss) and minimizes the risk of internal short circuits. Additionally, the system is integrated with a multi-tier fire suppression system, which, in tandem with temperature monitoring, ensures that any thermal anomaly is isolated before it can cause catastrophic failure.
- Q6: How do I calculate the 10-year ROI and LCOE considering degradation?
- To calculate the 10-year ROI, use the formula: (Total MWh dispatched over 10 years) x (Average arbitrage price) – (CAPEX + OPEX) / CAPEX. The dispatchable MWh must be derated annually by the 2-2.5% capacity fade. For Levelized Cost of Energy (LCOE), divide the total lifecycle cost (CAPEX + 10-year OPEX) by the total cumulative MWh output over the decade. With a degradation rate of 20%, a 100MWh system will effectively deliver ~90MWh of usable capacity over its life, making a strong case for oversizing the initial capacity to achieve financial targets.
- Q7: How do local lifecycle service and O&M contracts cover degradation?
- Local lifecycle service and O&M contracts typically include annual capacity tests and performance guarantees that tie to the 10-year degradation curve. If the capacity falls below the predicted curve (e.g., below 80% at year 10), the manufacturer is obligated to replace the affected modules or provide a capacity compensation payment. These contracts often include remote monitoring, scheduled liquid coolant replacement, and on-site BMS firmware updates to ensure the system remains at peak performance for the full warranty period.

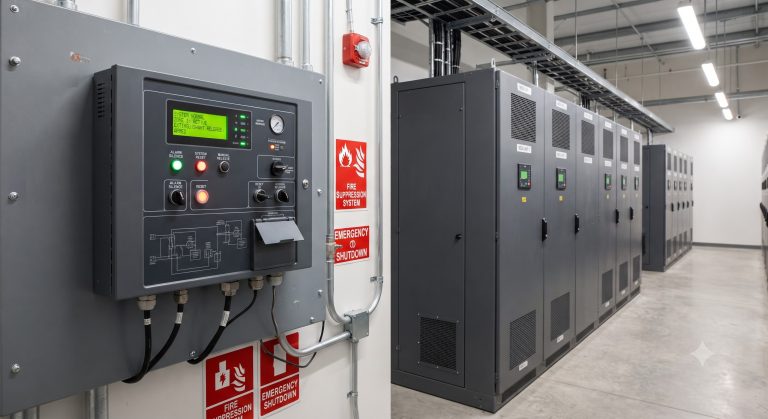

- Q8: What fire safety and isolation mechanisms are integrated to prevent degradation-related incidents?
- Early gas and smoke detection systems, combined with a three-level fire suppression protocol (gas detection, aerosol suppression, and water mist), are integrated to mitigate any risks that could arise from degradation, such as thermal runaway. The system also features electromagnetic isolation switches that physically disconnect the battery from the PCS in milliseconds upon detecting over-temperature or excessive internal pressure. These protections ensure that even if degradation leads to a cell failure, the rest of the system remains safe and operational.
