Introduction: The Non-Negotiable Imperative of BESS Quality Assurance
In the rapidly evolving landscape of Commercial & Industrial (C&I) energy storage, the difference between a profitable asset and a stranded liability often comes down to one critical factor: BESS quality control protocols. As global deployments of utility-scale battery energy storage systems surge past 200 GWh annually, procurement managers and system architects are demanding more than just datasheet promises. They require stringent, verifiable quality benchmarks that ensure performance, safety, and ROI over a 15-year operational lifespan.
This masterclass dissects the engineering rigor behind IEC 62619, UL 9540, and UN38.3 compliance. We move beyond theoretical frameworks to provide a granular, data-driven analysis of how cell selection, thermal management, and factory acceptance testing converge to define best-in-class BESS quality. For C&I buyers, understanding these protocols is not just about risk mitigation—it is the foundation of energy independence and peak-shaving profitability.
Core Engineering Architecture: Building Quality from the Cell Up
1. Tier-1 LFP Cell Sourcing and Incoming Quality Control (IQC)
The quality journey begins at the cell level. Lithium Iron Phosphate (LFP) chemistry is the industry standard for C&I applications due to its inherent thermal stability and long cycle life. However, not all LFP cells are created equal. Tier-1 manufacturers provide 100% laser-marked traceability with detailed formation test data. Our protocols mandate a rigorous IQC process that includes:
- Voltage & Capacity Sorting: Cells are binned with a voltage variance of ≤ 5mV and capacity variance of ≤ 1% to ensure optimal cell balancing.
- AC Internal Resistance (ACIR) Testing: Measured at 1 kHz, with strict pass/fail criteria (e.g., ≤ 0.5 mΩ) to guarantee consistent electrochemical performance.
- High-Potential Insulation Test: Applying 2500V DC between terminals and the casing to verify dielectric integrity.
2. Battery Management System (BMS) Logic and Redundancy
The BMS is the brain of the system, ensuring cells operate within a safe envelope. In a UL 9540-compliant system, the BMS must feature multi-layer redundancy:
- Voltage/Temperature Monitoring: Each cell is monitored individually with a sampling rate of 100 ms. The system triggers a derating or shutdown if any cell exceeds 3.65V or a temperature gradient of > 5°C across modules.
- State of Charge (SOC) and State of Health (SOH) Calibration: Using extended Kalman filter (EKF) algorithms, the BMS provides SOC accuracy within ± 3% and SOH degradation curves to predict end-of-life accurately.
- Canbus & Modbus Integration: Seamless communication with the Power Conversion System (PCS) and Energy Management System (EMS) enables real-time demand response and grid support functions.
Thermal Control: Liquid Cooling vs. Air Cooling
Thermal management directly impacts the cycle life and safety of a BESS. Our quality protocols rigorously validate the thermal control system, typically choosing liquid cooling for high-energy-density installations. Key validation steps include:
- Thermal Uniformity Test: Under a 1C charge/discharge cycle, the temperature differential between the hottest and coolest cells within a module must be ≤ 3°C.
- Coolant Flow Rate Validation: Ensuring the integrated coolant (e.g., 50/50 water-glycol mix) flows at a rate that dissipates heat effectively, maintaining round-trip efficiency above 94%.
- Leakage and Pressure Testing: The closed-loop liquid cooling system undergoes a 24-hour nitrogen pressure test at 1.5 times the working pressure to ensure zero leakage, a critical factor for fire safety.
Technical Specifications Matrix
The following table outlines the key performance indicators (KPIs) and quality thresholds for a reference 1MWh/2MWh BESS system. These metrics are central to our factory acceptance testing (FAT) and site acceptance testing (SAT) procedures.
| Key Parameter | Technical Specification | Quality Protocol / Standard |
|---|---|---|
| Battery Chemistry | Tier-1 LFP (Lithium Iron Phosphate) | IEC 62619 / UN38.3 |
| System Capacity | 1 MWh / 2 MWh Configurable | UL 9540 |
| Cycle Life @ 90% DoD | > 8000 cycles to 80% EOL | Internal SOH Algorithm |
| Round-Trip Efficiency | ≥ 94% (DC/AC) | Factory Calibrated |
| Thermal Control | Liquid Cooling (Water-Glycol) | Leakage Test @ 1.5 MPa |
| Operating Temperature Range | -25°C to 55°C (Derated above 40°C) | Thermal Uniformity ≤ 3°C |
| BMS Accuracy (SOC) | ± 3% (Extended Kalman Filter) | Voltage/Current Sensor Calibration |
| IP Rating (Ingress Protection) | IP54 (Outdoor Rated) | UL 9540A |
| Fire Suppression | Aerosol / NOVEC 1230 | Response Time ≤ 15s |
| Response Time (PCS to EMS) | < 50 ms (Frequency Regulation) | Modbus / CANbus Integration |
Compliance and Safety Audits: UL 9540, IEC 62619, and UN38.3
UL 9540 covers the entire energy storage system, including electrical, mechanical, and fire safety. Our protocols demand that every installation undergo:
- Fire Suppression System Validation: Using aerosol-based or clean agent (e.g., NOVEC 1230) systems, we test detection and activation times to ensure a response within 15 seconds of a thermal event.
- IEC 62619 Compliance: This standard focuses on safe operation of secondary lithium cells and batteries. We test for overcharge, over-discharge, and short-circuit resilience. A mandatory 150% overcharge test verifies the system’s ability to prevent thermal runaway.
- UN38.3 Transportation Testing: Essential for logistics, this ensures the battery cells are safe for transport. Our internal audits require a full set of tests, including altitude simulation, thermal shock, and vibration tests, before units are shipped.
Commercial ROI and Grid Support Analysis
Quality control protocols directly translate to financial performance. A BESS with stringent quality checks achieves a lower degradation rate (e.g., <1% per year), maintaining a usable capacity of > 80% of its original rating for over 10 years. This longevity ensures peak-shaving ROI is maximized. For a facility with a 1 MW load, effective load-shifting can reduce annual electricity costs by 20-30%.
In terms of grid support, systems with high round-trip efficiency and low latency dispatch (50 ms response time) are better positioned to participate in frequency regulation markets, generating additional revenue streams through virtual power plant (VPP) aggregators.
Deployment Scenarios and Industrial Applications

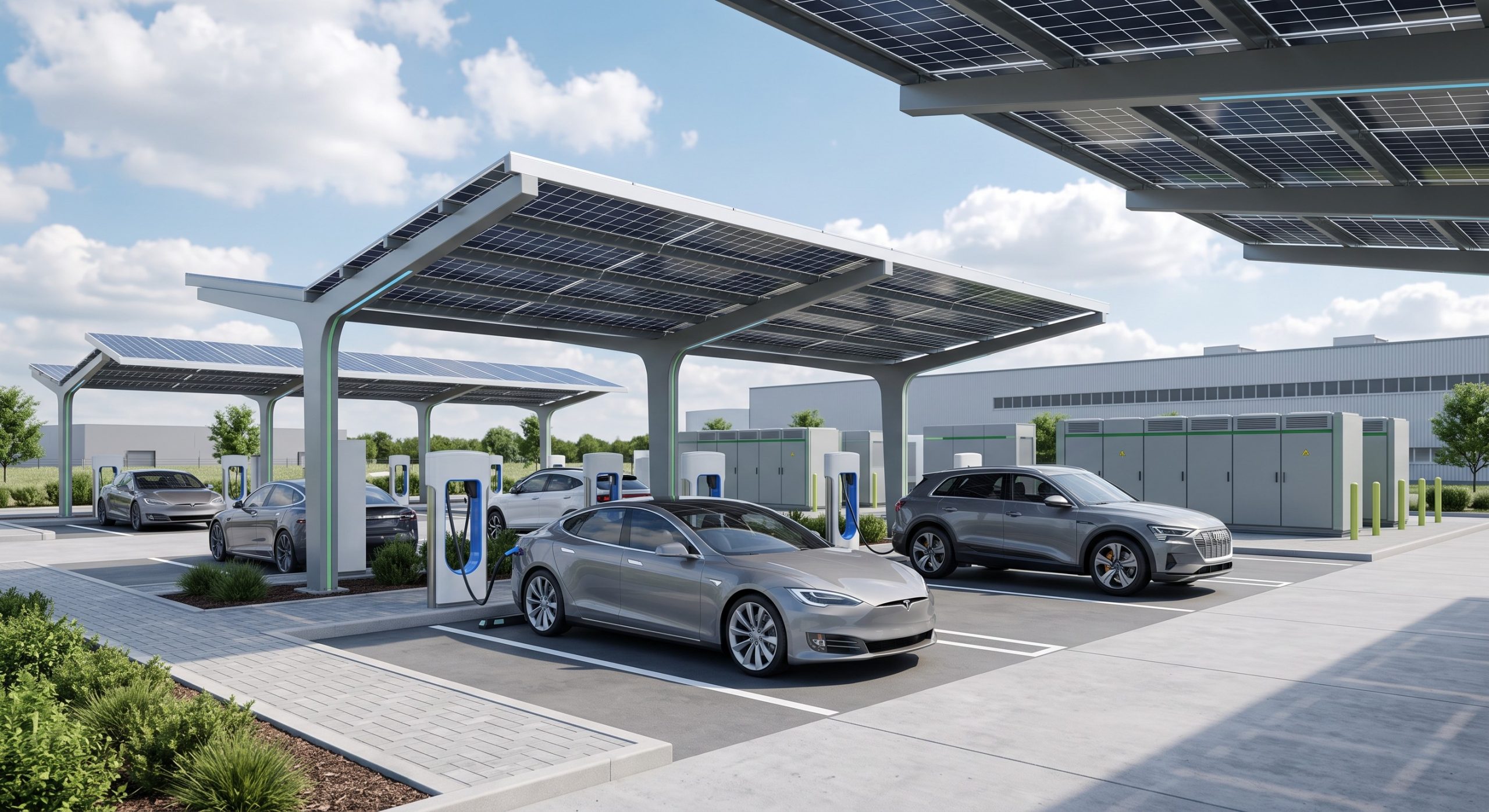

The integration of robust BESS quality protocols is critical across various deployment scenarios, including industrial parks, EV supercharging stations, and micro-grids. For example, in an industrial park, a modular BESS with verified UL 9540 certification can seamlessly integrate with an existing PV canopy, reducing the park’s reliance on the grid by up to 40%. The turnkey delivery of these systems requires on-site O&M support to ensure continuous compliance and performance.
Conclusion
Navigating the complexities of BESS quality control protocols is the cornerstone of successful C&I energy storage investments. By adhering to IEC 62619, UL 9540, and UN38.3 standards, and deploying advanced liquid cooling and BMS technology, procurement managers and system architects can ensure high availability, low operational risk, and superior financial returns. The message is clear: in the world of commercial energy storage, proactive quality assurance is not an operational cost—it is a strategic competitive advantage.
