Wholesale Supply: Smart Metering ESS | 215kWh Liquid Cooled Cabinet | C&I Global Delivery
Wholesale Smart Metering (215kWh) for commercial projects. Features Tier-1 LFP cells, liquid cooling, and 10-year performance warranty. Maximize project ROI with turnkey global logistics and local O&M support.
Product Summary

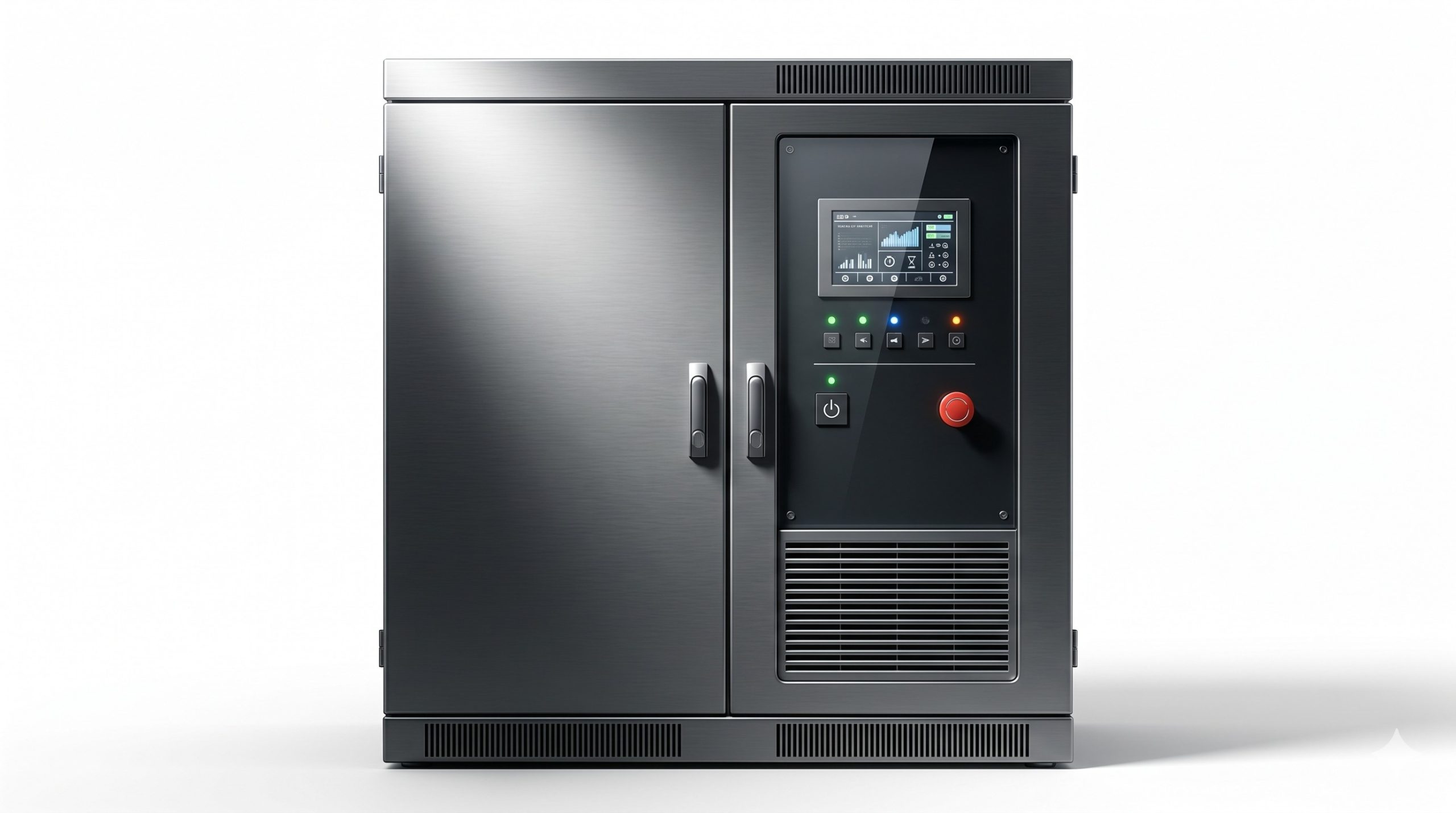

Optimize your commercial energy infrastructure with the Smart Metering 215kWh Liquid Cooled Battery Energy Storage System (BESS). Engineered for rigorous peak shaving and EV supercharging support, this unit integrates Tier-1 LiFePO4 cells with an active balancing BMS. As a direct wholesale source, we provide 10-Year Performance Warranty, IP55 outdoor-rated durability, and dedicated local O&M support for global distributors.
Why C&I Sourcing Chooses Smart Metering (High ROI Focus)
The Smart Metering ESS is architected for maximum return on investment in commercial and industrial applications. By leveraging ultra-low degradation LFP chemistry and a liquid cooling loop that maintains optimal cell delta-T below 3°C, the system delivers >6,000 cycles at 90% DoD. This translates to a superior Levelized Cost of Storage (LCOS) compared to air-cooled alternatives. Global shipping availability ensures your project timelines are met without premium logistics surcharges.
Key Financial & Performance Drivers

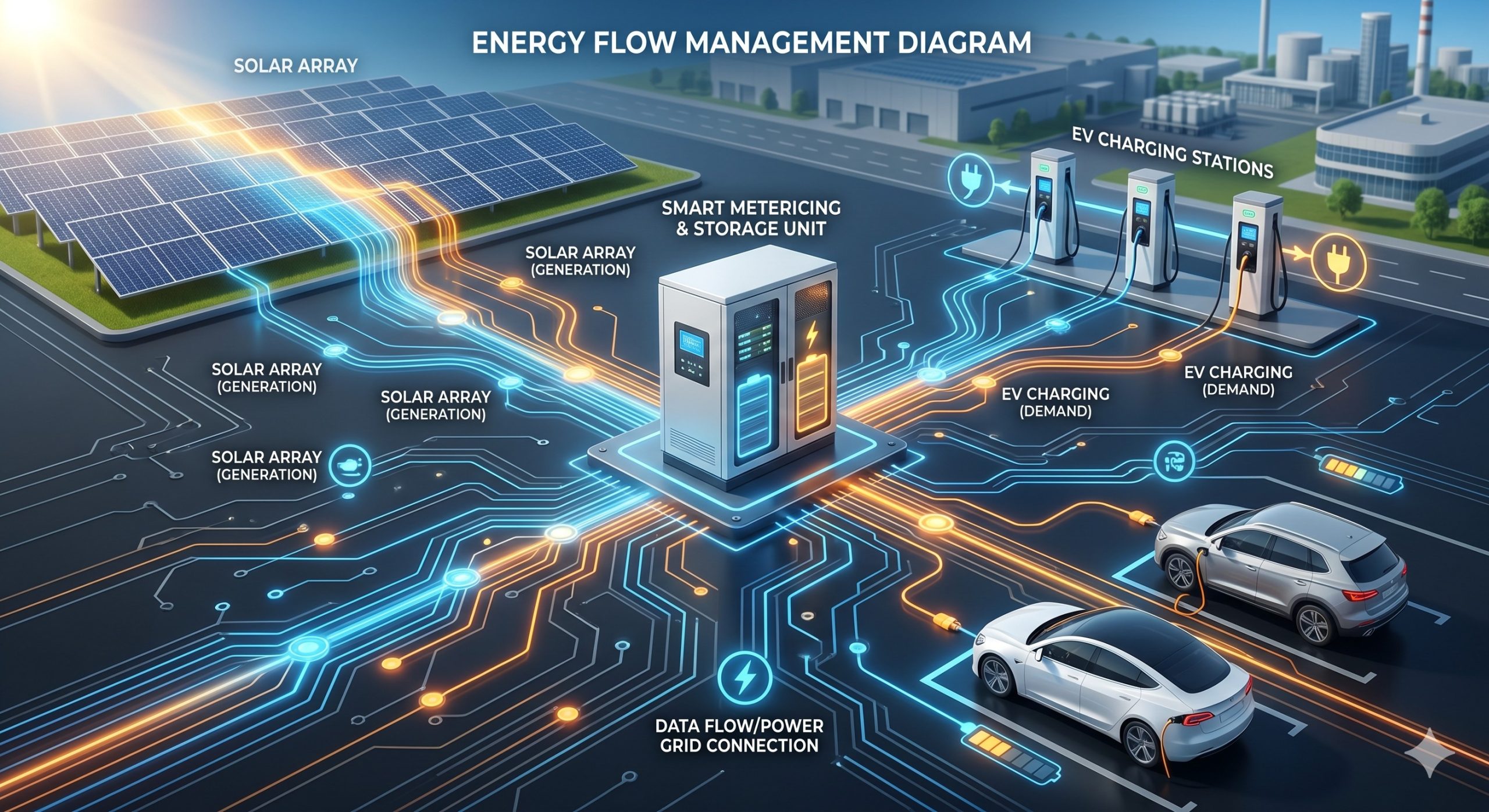

Turnkey PV-Storage-Charging Solutions: Seamlessly integrate with existing solar canopies and EV fast chargers via the onboard EMS dispatch interface. Local O&M Support: Our regional service partners guarantee <24-hour remote diagnostics and <72-hour on-site response for critical commercial assets.
Product Overview & Safety Architecture
The Smart Metering cabinet adopts a three-layer safety architecture: cell-level fusing, pack-level isolation monitoring, and a dual-signaling aerosol fire suppression system. The liquid cooling plate directly contacts each battery module, maintaining core temperature within the optimal 25-35°C band even at 1C continuous charge/discharge rates. This design directly prevents thermal runaway propagation, securing UL 9540A compliance readiness. The industrial-grade PCS supports grid-forming and grid-following modes, enabling seamless transition for micro-grid and industrial park backup applications.
Technical Specifications
Below are the factory-verified parameters for the Smart Metering 215kWh BESS unit. Each system undergoes a 72-hour factory acceptance test (FAT) prior to sea freight dispatch.
| Technical Feature | Specification |
|---|---|
| Battery Chemistry | Tier-1 LFP (LiFePO4), prismatic cells |
| Cooling / Thermal Control | Smart Liquid Cooling (coolant: water-glycol) |
| Usable Energy (kWh) | 215 kWh (100% DoD) |
| Nominal Voltage (V) | 768 V DC |
| Round-trip Efficiency | ≥ 92% (at +25°C, 0.5C) |
| Cycle Life | ≥ 6,000 cycles @ 90% DoD (70% SOH EOL) |
| Performance Warranty | 10 Years (unlimited cycles, performance prorated) |
| Communication Protocols | Modbus TCP, CAN 2.0, IEC 61850 |
| Ingress Protection | IP55 (cabinet), IP20 (battery racks) |
| Fire Suppression | Aerosol-based + passive intumescent barriers |
| Dimensions (W x D x H) | 1200 x 800 x 2100 mm |
| Weight (approx.) | 2,200 kg |
| Operating Temperature | -20°C to +55°C (derated above 45°C) |
Application Scenarios

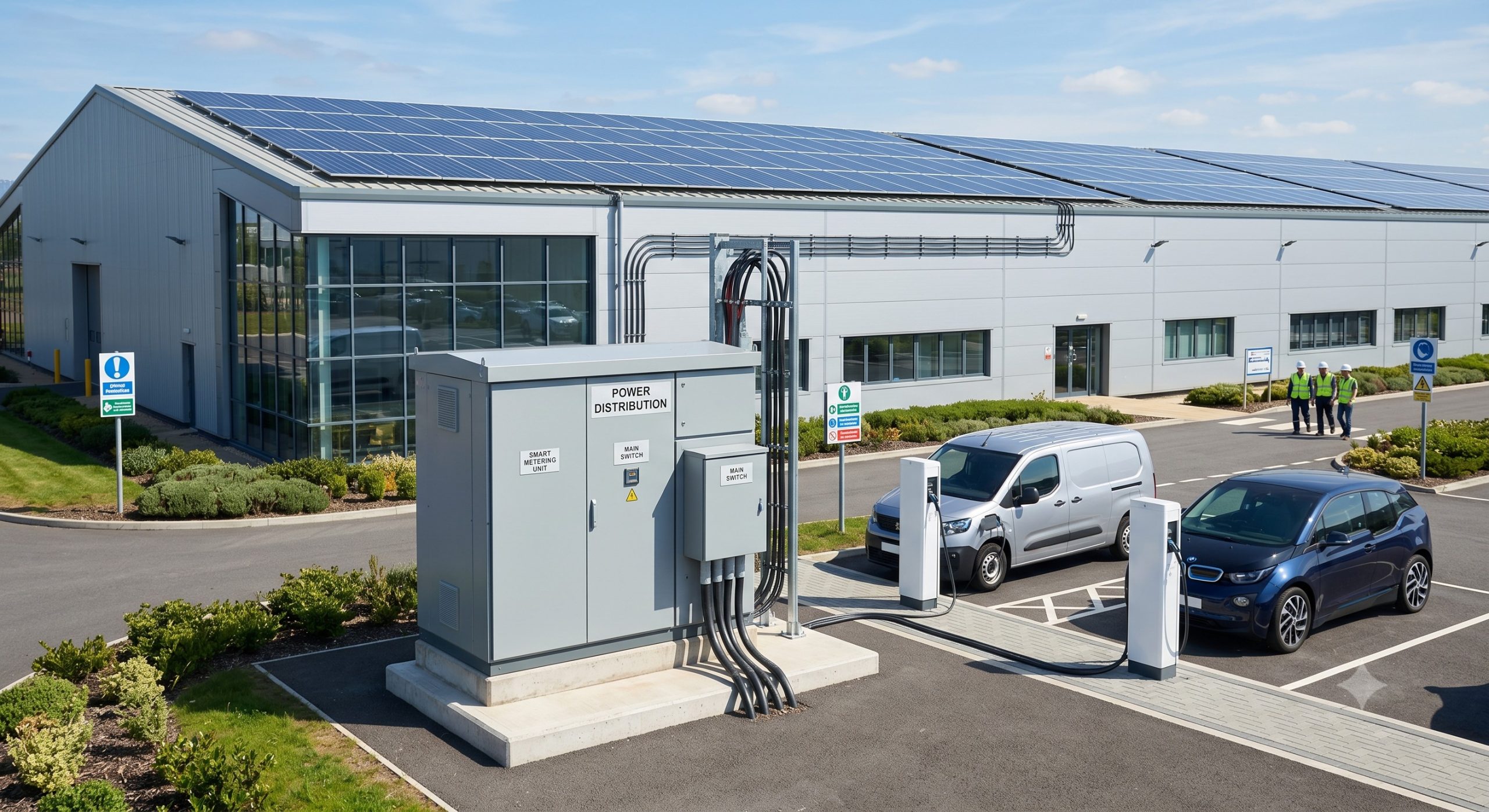

EV Supercharging Stations
Pair the Smart Metering cabinet with 150kW-350kW DC fast chargers to slash demand charges by up to 40%. The system buffers low-cost off-peak energy and deploys it during peak grid hours, directly reducing operational expenses for charging plaza operators. The integrated Smart Metering accuracy (Class 1) ensures precise billing and load tracking.
Industrial Parks & Micro-Grids

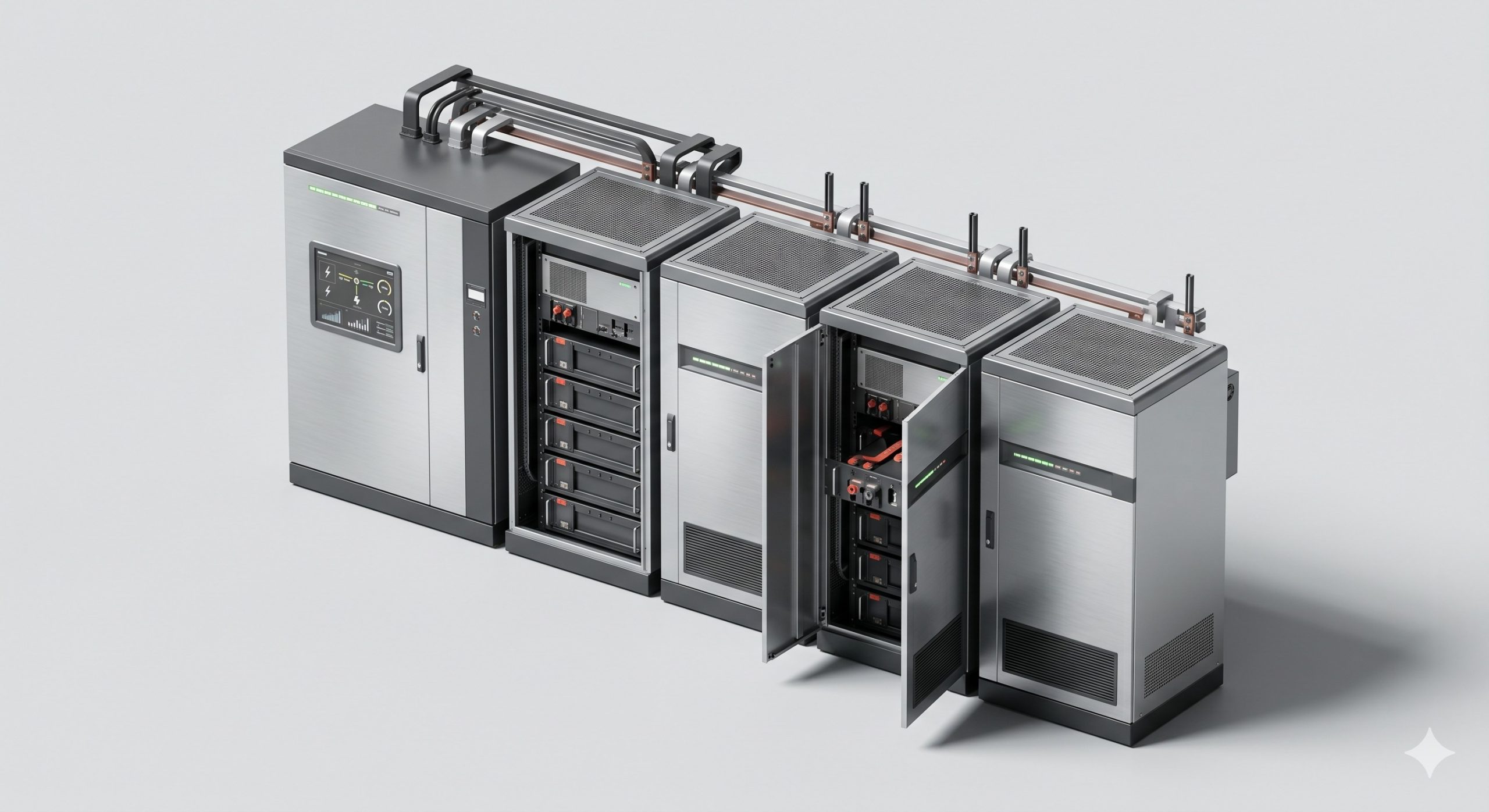

Deploy this cabinet for peak shaving, backup power, or photovoltaic self-consumption enhancement. Its modular parallel interface supports scaling from 215kWh to over 2MWh by connecting up to 10 units via a shared DC bus. The 10-Year Performance Warranty (EOL 70% SOH) provides project financiers and EPCs with bankable asset security.
Supply Assurance & Global Logistics
As a premier manufacturer with 15 years in power electronics, we maintain a ready-to-deploy inventory for the Smart Metering series. Lead times for wholesale orders (10+ units) are 25-35 days FOB major port. We provide complete documentation: commercial invoice, packing list, Bill of Lading, CE/UL/IEC certificates, and project-specific single-line diagrams. Local O&M support contracts are available for EU, NA, SEA, and MEA regions.
Frequently Asked Questions
- What is the typical return on investment (ROI) period for this Smart Metering ESS?
- For commercial peak shaving applications with a tariff spread of $0.15/kWh, typical ROI is 3-4 years. The 10-year warranty ensures 6+ years of net positive cash flow. We provide a customized financial model upon request.
- Can this system be integrated with existing third-party PV inverters and EV chargers?
- Yes. The Smart Metering cabinet’s EMS supports Modbus TCP/RTU and CAN 2.0 protocols, allowing open integration with leading inverters (Huawei, Sungrow, SMA) and chargers (ABB, Delta, BTC).
- What certifications does the Smart Metering 215kWh cabinet carry?
- It is designed to meet IEC 62619, IEC 62477, UL 1973, and UN38.3 for transport. UL 9540 and CE certifications are available for specific regional batches. Fire suppression follows NFPA 855 guidelines.
- How does your local O&M support work for international buyers?
- We contract with regional integrators to provide local O&M coverage. The package includes remote monitoring via our cloud EMS, annual capacity tests, and priority parts replacement. SLA options range from next-business-day to 4-hour response for critical sites.
- What are the MOQs and payment terms for wholesale orders?
- MOQ: 2 units (430kWh) for standard wholesale. Larger project-based orders (20+ units) qualify for ODM branding options. Payment: 30% T/T deposit, 70% against copy of Bill of Lading. LC at sight is accepted for qualified distributors.
