Wholesale Supply: 7kW AC EV Charger | Commercial L2 Charging Station | Global Delivery

Product Summary: 7kW AC EV Charger – Reliable L2 Charging for Commercial Operations

Introducing the 7kW AC EV Charger, a robust Level 2 (L2) AC charging solution engineered specifically for commercial properties, auto dealerships, fleet depots, and hospitality venues. Unlike residential chargers, this unit is built for continuous daily duty cycles and features industrial-grade components, including a durable polycarbonate/ABS enclosure, Type 1 (SAE J1772) or Type 2 (IEC 62196) connector options, and an intuitive user interface. With global delivery capabilities and a 3-Year Performance Warranty, this station reduces operational downtime and offers a superior ROI through its OCPP 1.6J backend compatibility, enabling smart load management and remote diagnostics. It is the ideal entry point for property owners to build a turnkey PV-Storage-Charging ecosystem, providing a future-proof asset that enhances property value and attracts EV-driving customers.

Why Commercial Sourcing Chooses the 7kW AC EV Charger (High ROI Drivers)

For procurement managers and project integrators, the decision hinges on total cost of ownership (TCO) and operational reliability. This 7kW AC EV Charger delivers on both fronts. Its smart charge scheduling allows businesses to shift charging to off-peak hours, maximizing utility bill savings. The unit’s compatibility with leading Charge Point Management Systems (CPMS) via OCPP ensures you are not locked into a proprietary network. Furthermore, our direct wholesale pricing model removes intermediary markups, delivering a premium, factory-tested unit at a highly competitive price point. Local O&M Support agreements are available in key markets, guaranteeing rapid response times and minimizing downtime, which is critical for revenue-generating public charging stations or employee fleet reliability.

Product Overview & Safety Architecture

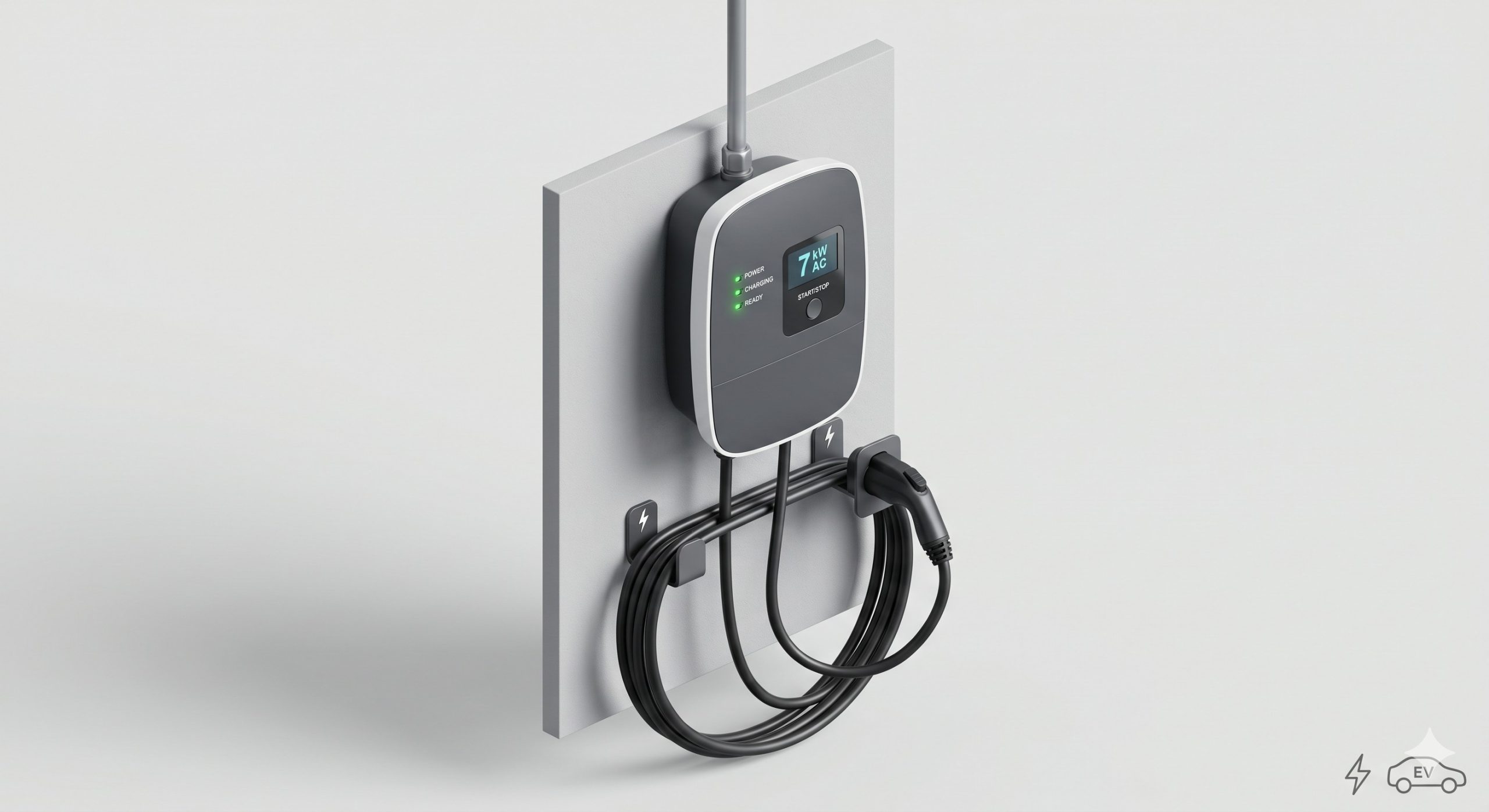

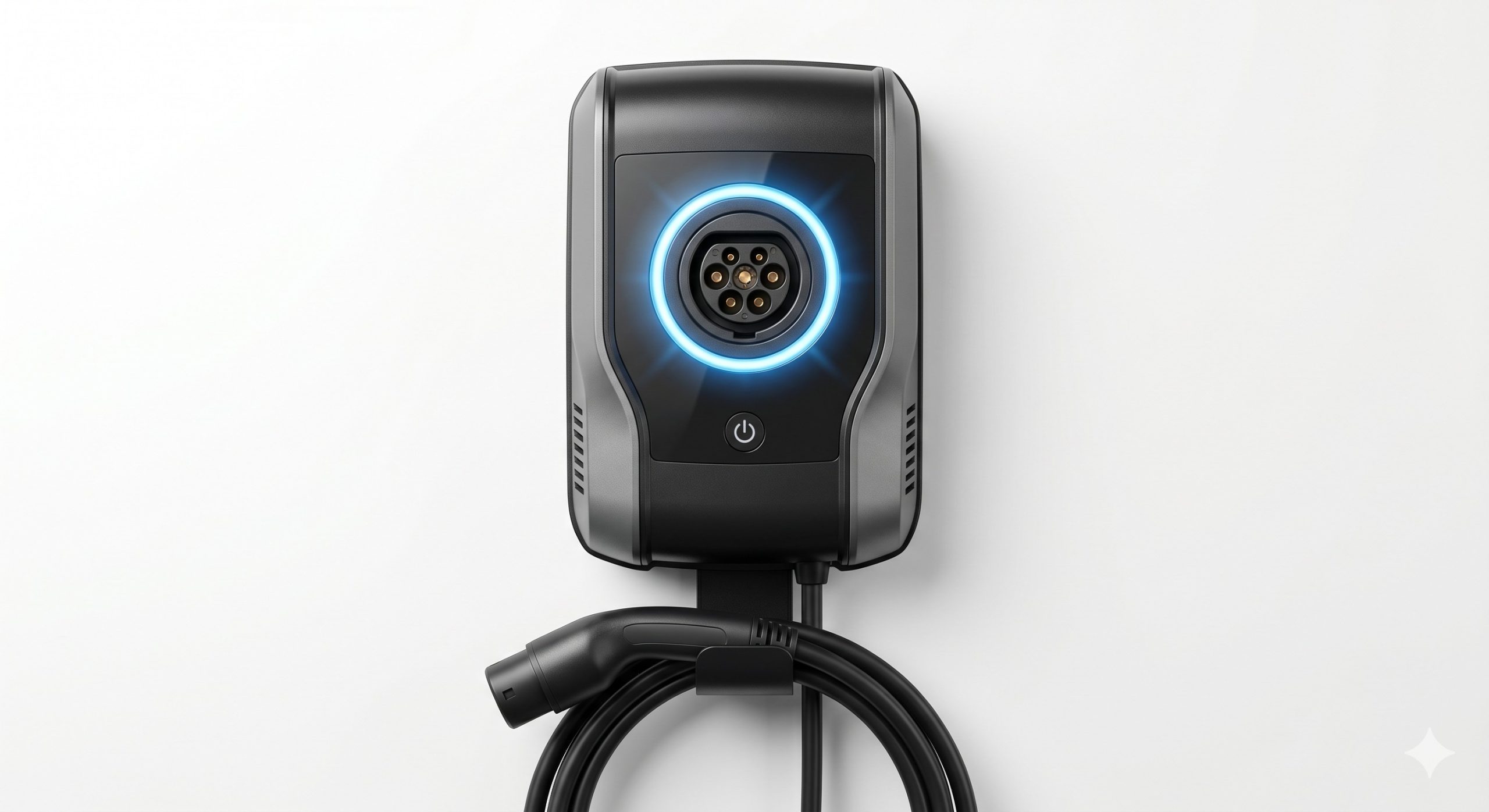

The 7kW AC EV Charger is designed with a multi-layered safety and reliability architecture. The core includes a Type A + 6mA DC leakage protection circuit breaker, integrated over-voltage, under-voltage, over-current, and over-temperature protection. The enclosure meets IK10 impact resistance and IP54/NEMA 3R ingress protection standards, making it resilient against dust, rain, and physical tampering in public parking areas. An emergency stop button provides a manual override, while internal relay welding detection ensures a failsafe disconnection. The user interface features a clear 2.0-inch LCD screen and LED status indicator ring (Standby/Charging/Charged/Fault), providing immediate operational feedback.

Technical Specifications

The following verified parameters are critical for engineering, procurement, and compliance verification.

Technical Feature	Specification
AC Input (Rated)	220V / 240V (±10%), Single Phase, 50/60Hz
Rated Output Power	7kW (32A max)

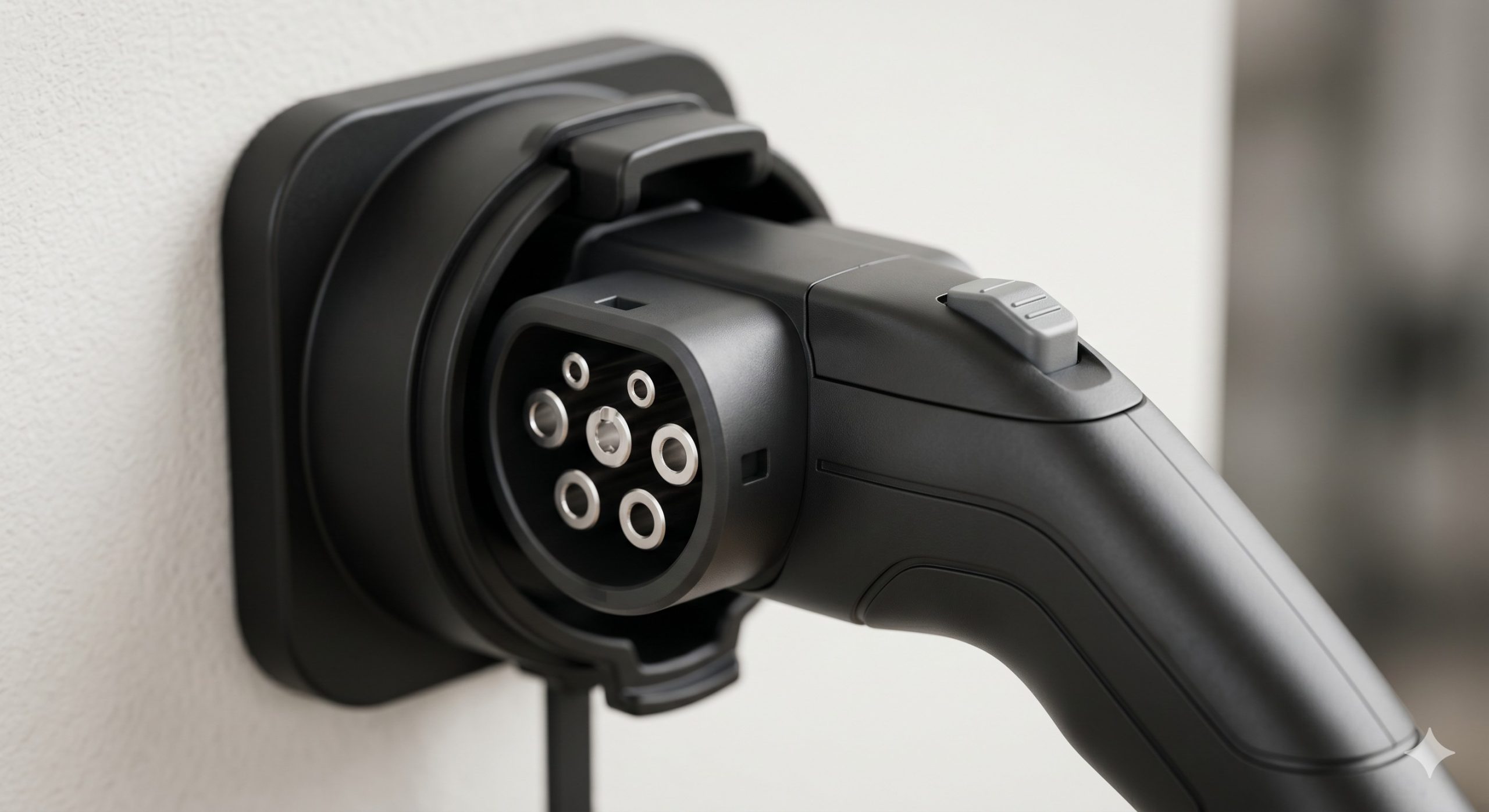

Connector Type	Type 1 (SAE J1772) or Type 2 (IEC 62196)
User Interface	2.0 inch LCD screen + LED status ring
Communication Protocol	OCPP 1.6J (Wi-Fi / 4G / Ethernet optional)
Protection Rating	IP54 (Indoor/Outdoor), IK10
Operating Temperature	-30°C to +50°C
Safety Certifications	CE, FCC, RoHS
Warranty	3-Year Performance Warranty (extendable)

below outlines the core technical features.

Technical Feature	Specification
AC Input (Rated)	220V / 240V (±10%), Single Phase, 50/60Hz
Rated Output Power	7kW (32A max)
Connector Type	Type 1 (SAE J1772) or Type 2 (IEC 62196)
User Interface	2.0 inch LCD screen + LED status ring
Communication Protocol	OCPP 1.6J (Wi-Fi / 4G / Ethernet optional)
Protection Rating	IP54 (Indoor/Outdoor), IK10
Operating Temperature	-30°C to +50°C
Safety Certifications	CE, FCC, RoHS
Warranty	3-Year Performance Warranty (extendable)

Application Scenarios

Turnkey Integration for EV Supercharging Hubs & Commercial Fleets

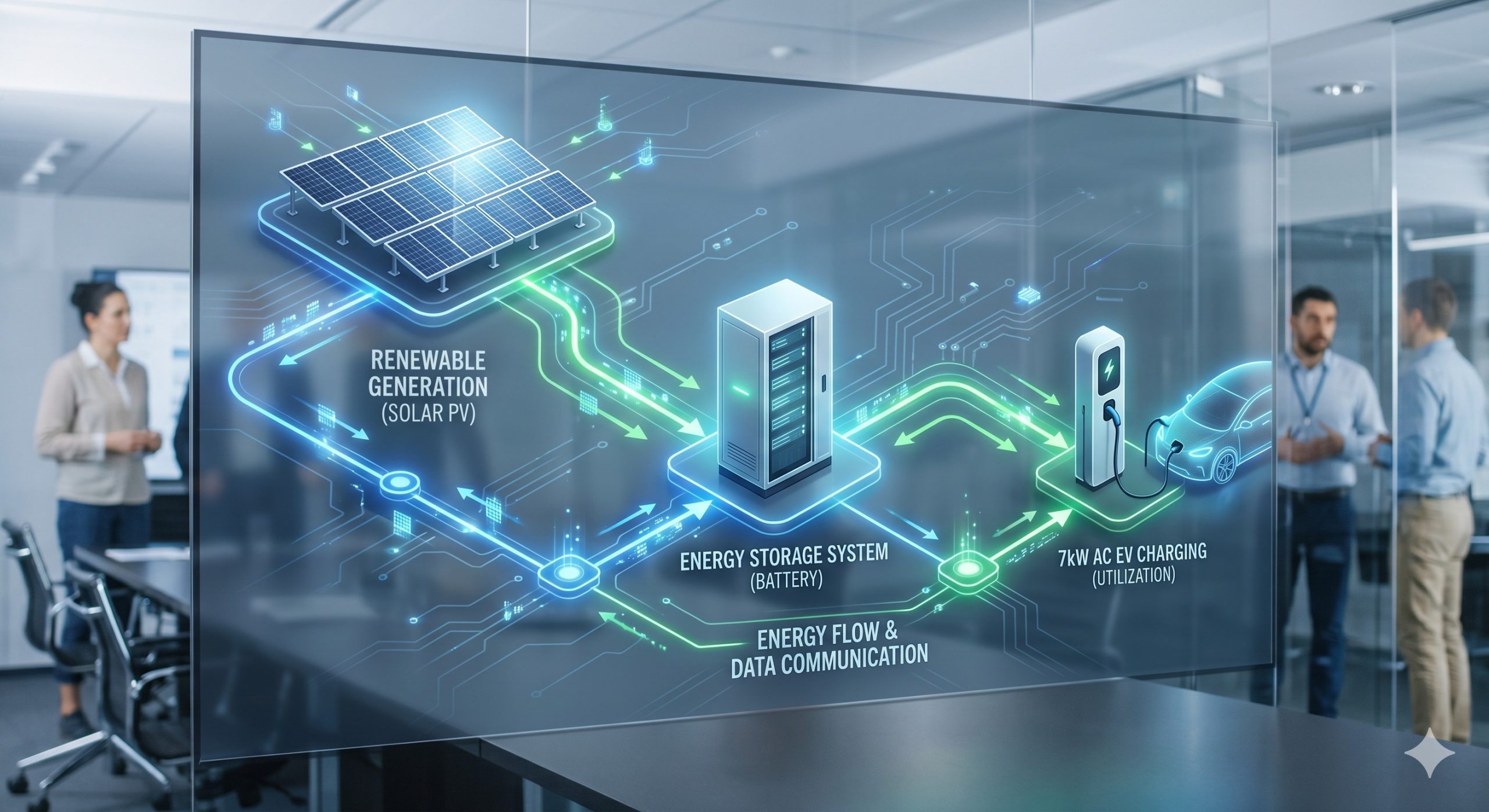

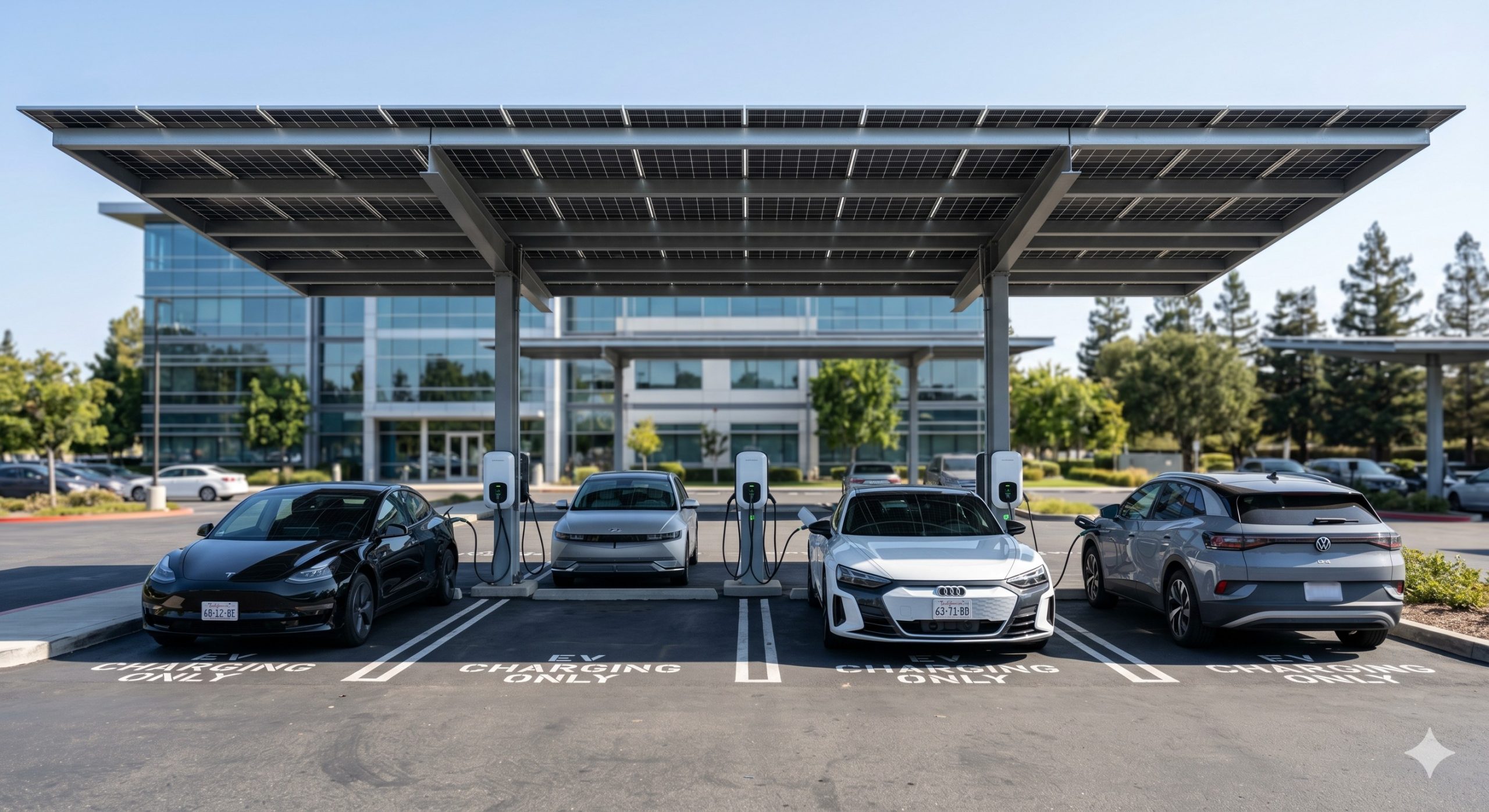

While high-power DC chargers serve long-haul needs, the 7kW AC EV Charger is the essential solution for destination charging. At EV Supercharging stations, install these units alongside DC fast chargers to offer overnight or workplace charging for local employees and residents, maximizing station utilization. For corporate and municipal fleets, this charger provides cost-effective overnight charging for plug-in hybrid and battery electric vehicles. It also excels in retail parking lots, hotels, and multi-family residential buildings, acting as a customer amenity that increases dwell time and revenue. When integrated with solar canopies and our battery energy storage systems (BESS), it completes a sustainable, grid-independent micro-grid that lowers operational carbon footprint and energy costs.

Supply Assurance & Global Logistics

As a leading manufacturer, we ensure supply chain transparency and security. Each 7kW AC EV Charger undergoes a 24-hour burn-in test and 100% final functional test before packaging. Our global logistics partnerships enable door-to-door sea and air freight to major ports worldwide (Rotterdam, Los Angeles, Shanghai, Dubai). Standard lead times for wholesale orders (≥50 units) are 15-20 days after deposit confirmation. We provide all necessary documentation, including commercial invoices, packing lists, CE, FCC, and RoHS certificates, for smooth customs clearance. Our dedicated project management team coordinates with your local integrator to ensure a seamless handoff and commissioning process.

Frequently Asked Questions (B2B Procurement)

What are the MOQ (Minimum Order Quantity) and wholesale pricing tiers?

Our standard MOQ for the 7kW AC EV Charger is 20 units. Volume discounts are available at 50, 100, and 500+ unit tiers. Please contact our B2B sales team for a customized quote based on your annual forecast and delivery schedule.

Is the 7kW AC EV Charger compatible with my existing CPMS?

Yes, the charger is compliant with OCPP 1.6J (JSON) and can be integrated with major open and proprietary Charge Point Management Systems (CPMS) such as Monta, GreenFlux, and others. We can provide API documentation for custom integrations.

What is the process for warranty claims and local O&M support?

The unit comes with a 3-Year standard warranty. We have an advanced replacement policy for critical components (main control board) within the first year. For authorized partners, we offer extended warranty packages and can provide remote diagnostics and on-site service dispatch through our regional O&M partners in North America and Europe.

Can I get a branded version or an ODM solution?

Absolutely. We offer OEM/ODM services including custom logo printing on the enclosure, custom plastic color options (minimum quantity required), and software customization for specific back-office platforms. Our engineering team is ready to discuss your brand requirements.

What certifications does the 7kW AC EV Charger hold for global shipping?

Our standard model is certified with CE (LVD, EMC, RED), FCC, and RoHS, compliant for the EU and North American markets. For specific country requirements (e.g., UKCA, CCC), please confirm with our sales team during order placement.
