Wholesale Supply: 720kW Power Cabinet | Commercial Energy Storage Cabinet | Global Delivery

Executive Overview

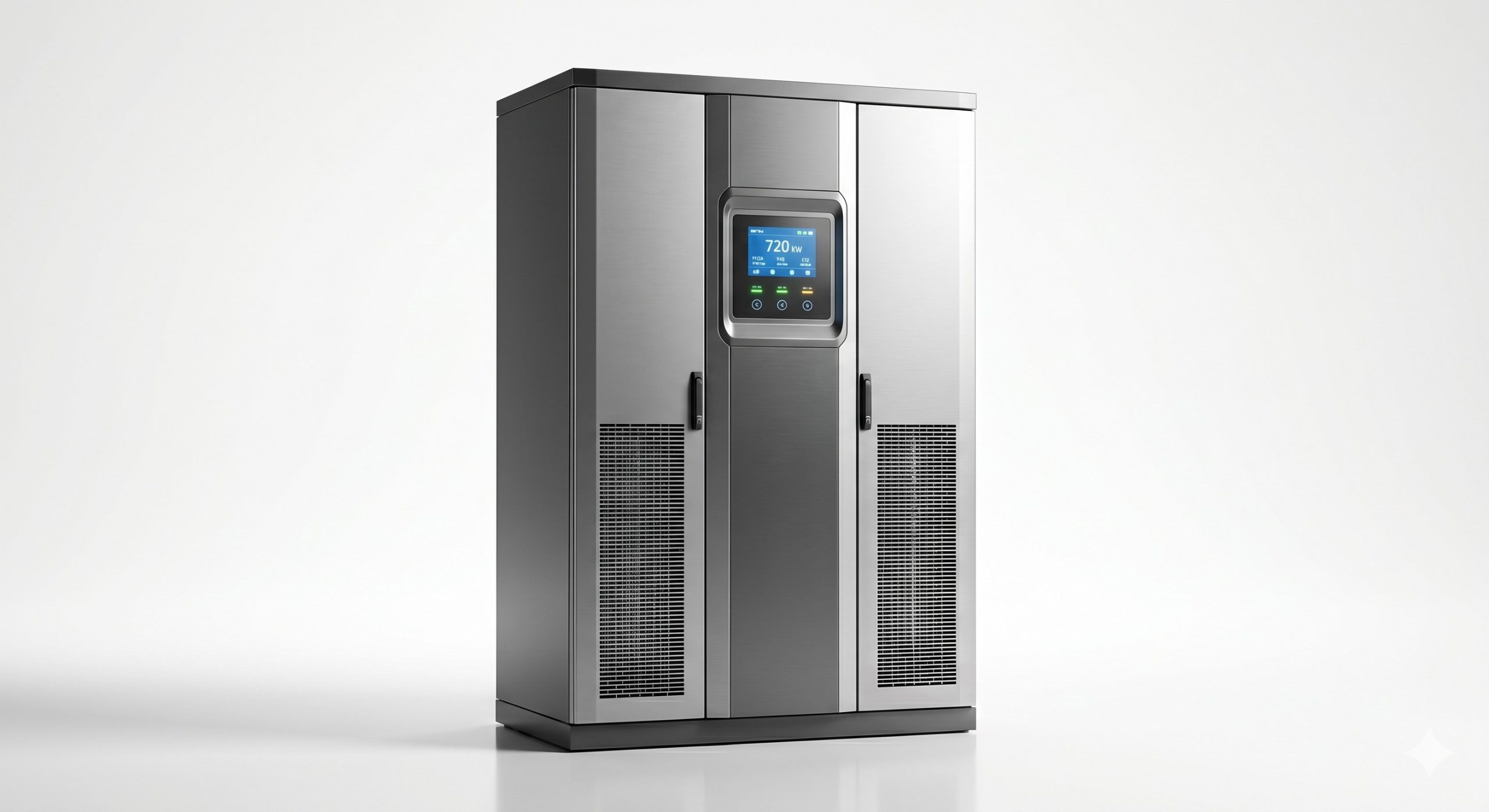

The 720kW Power Cabinet is a high-density, utility-grade Battery Energy Storage System (BESS) designed specifically for large-scale commercial and industrial (C&I) applications. This unit is optimized for peak shaving, demand charge management, and EV supercharging support. With a robust liquid cooling system and Tier-1 Lithium Iron Phosphate (LFP) cells, it delivers a cycle life exceeding 8,000 cycles at 80% Depth of Discharge (DoD), ensuring a superior Levelized Cost of Storage (LCOS) over its 10-year performance warranty period. As a turnkey solution, it supports global shipping and is backed by comprehensive local Operations & Maintenance (O&M) support.

Competitive Edge: Built for Extreme ROI & Thermal Safety

Integrators and wholesalers choose the 720kW Power Cabinet for its bankable specifications and supply chain reliability. The active liquid cooling system maintains a ±1°C cell温差, preventing capacity degradation and enabling a round-trip efficiency of 94%. The system’s advanced Battery Management System (BMS) with active cell equalization maximizes usable capacity. For project financiers, the 10-year performance warranty and transparent factory test metrics for DoD and end-of-life (EOL) criteria provide absolute project落地保障. Our direct sourcing model, combined with warehouse hubs in key logistics zones, ensures 5-7 day lead times for critical components.

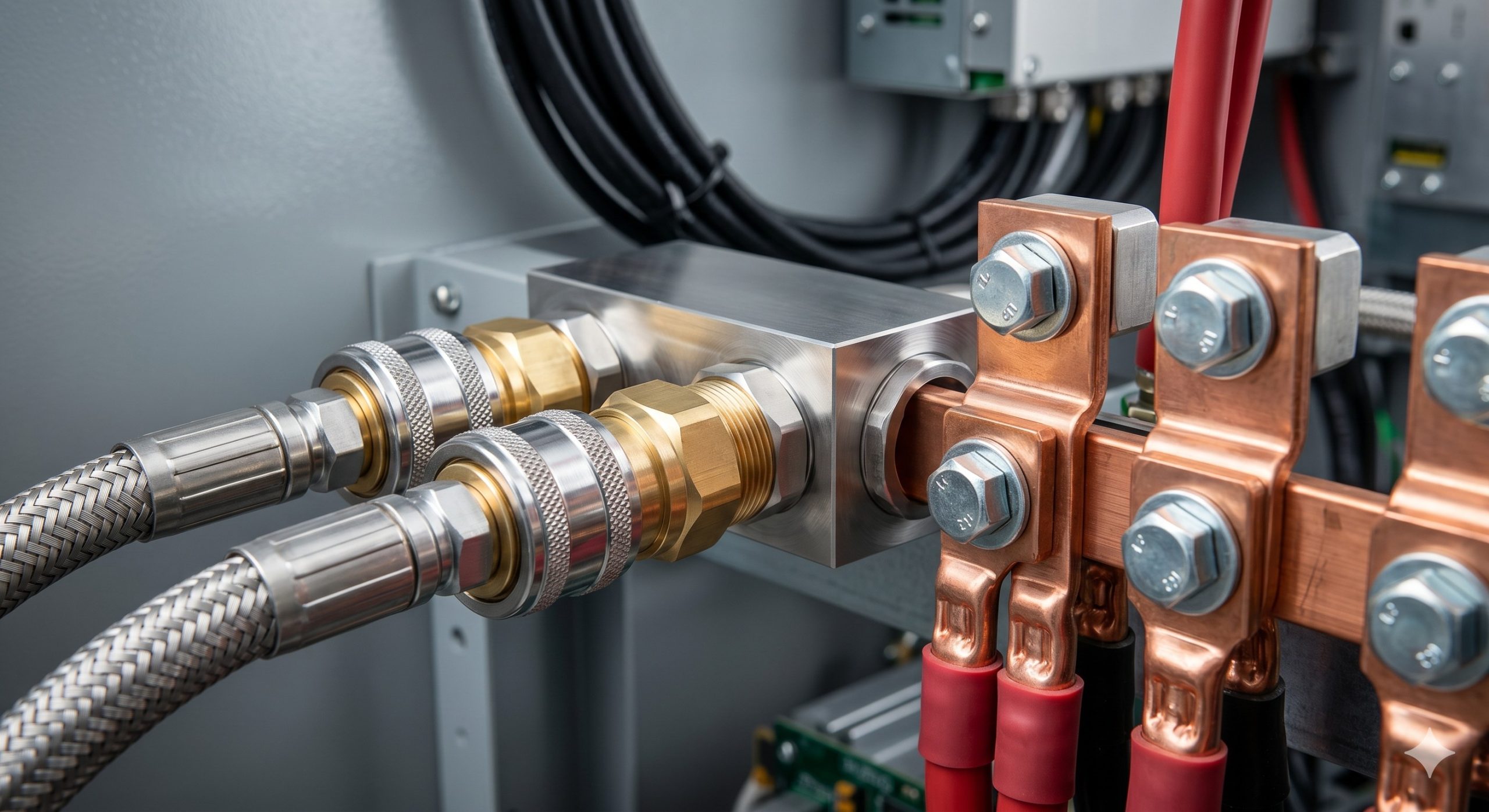

Advanced Liquid Cooling & BMS Architecture

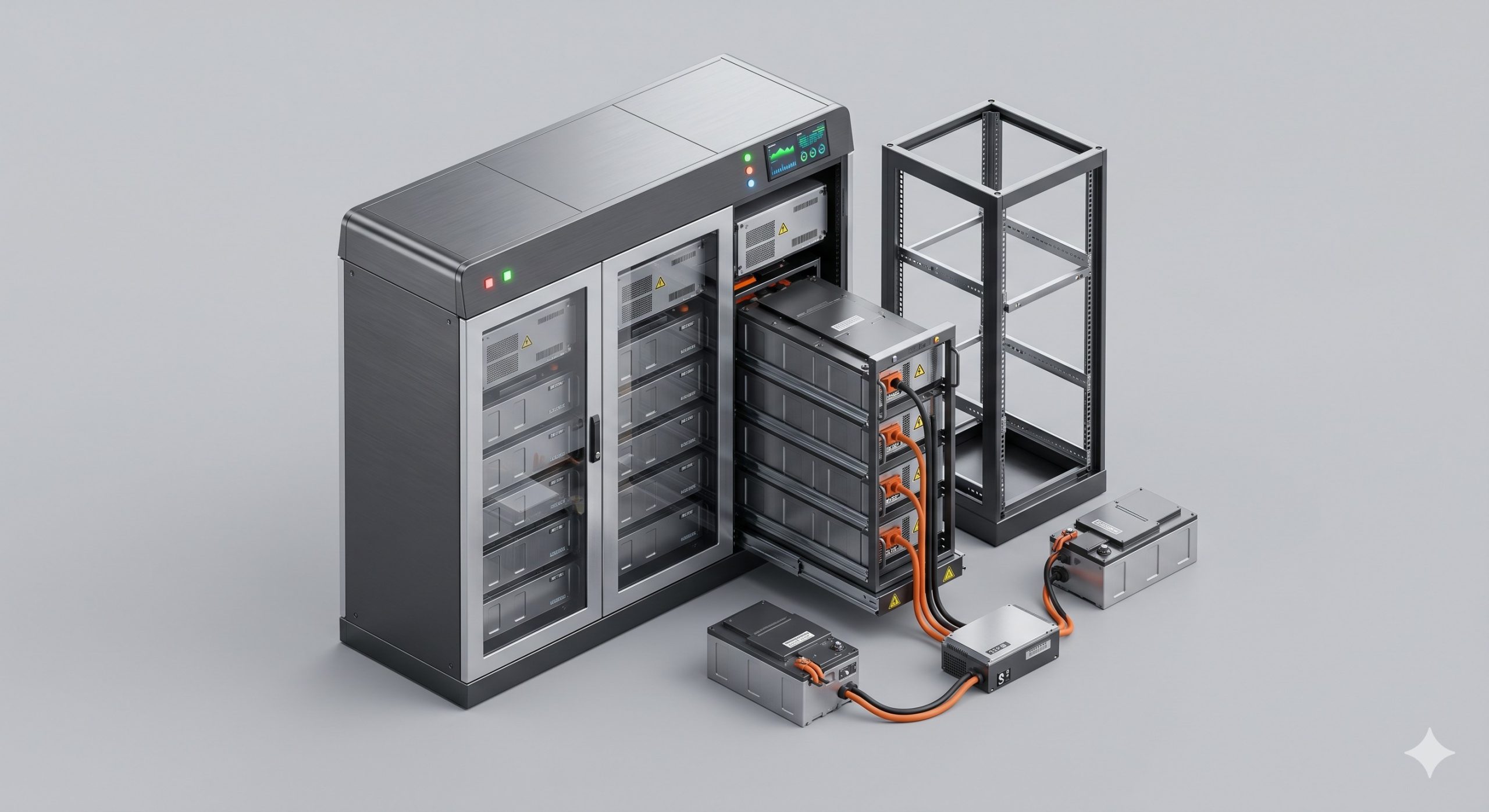

The 720kW Power Cabinet integrates a multi-layer safety architecture, including an aerosol-based fire suppression system and IP55-rated outdoor enclosure. The proprietary EMS supports seamless PV-Storage-Charging logic, enabling micro-grid independence or grid-tied arbitrage. Each rack undergoes a 72-hour factory acceptance test (FAT) to verify insulation resistance, voltage consistency, and thermal performance. The system is pre-wired for parallel expansion, allowing up to 10 units to be combined for a 7.2MW/14.4MWh block.

Technical Specifications

Below are the verified engineering parameters for the 720kW Power Cabinet. All values are tested under standard test conditions (STC) and are guaranteed at the point of commissioning.

Technical Feature	Specification
Rated AC Power	720kW (adjustable 360kW-720kW)
Usable Energy Capacity	1440 kWh (C-rate: 0.5C)
Battery Chemistry	Tier-1 LFP (LiFePO4), prismatic cells
Cooling / Thermal Control	Smart Liquid Cooling (Coolant: Water-Glycol)
Round-trip Efficiency (AC-AC)	94% @ 0.5C, 25°C
Cycle Life	≥8,000 cycles to 80% DoD (70% EOL capacity)
Grid Interconnection	3-phase, 480V/60Hz (customizable to 400V/50Hz)
Protection Rating	IP55 (NEMA 3R)

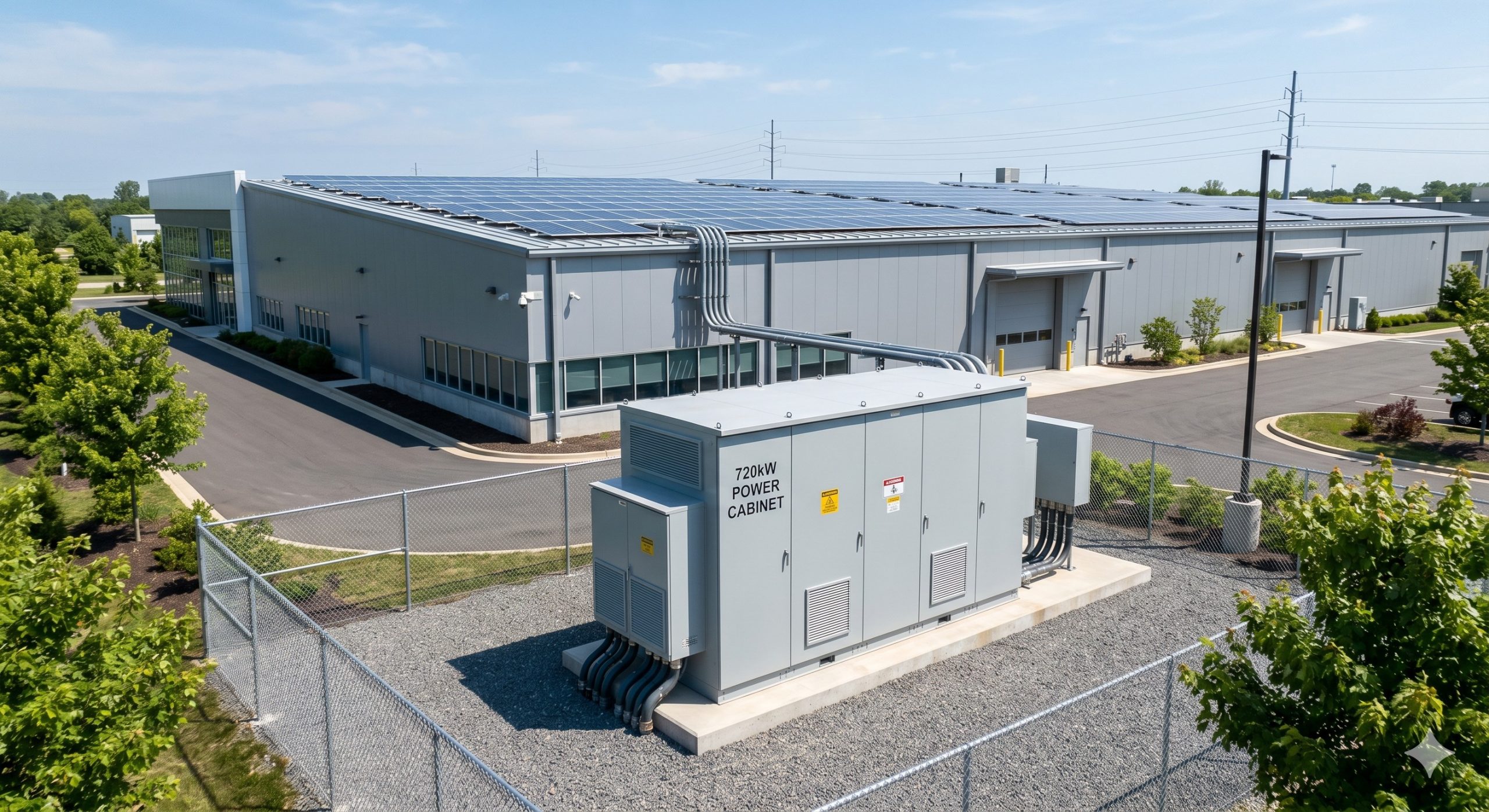

Target C&I Facilities & Micro-grid Deployments

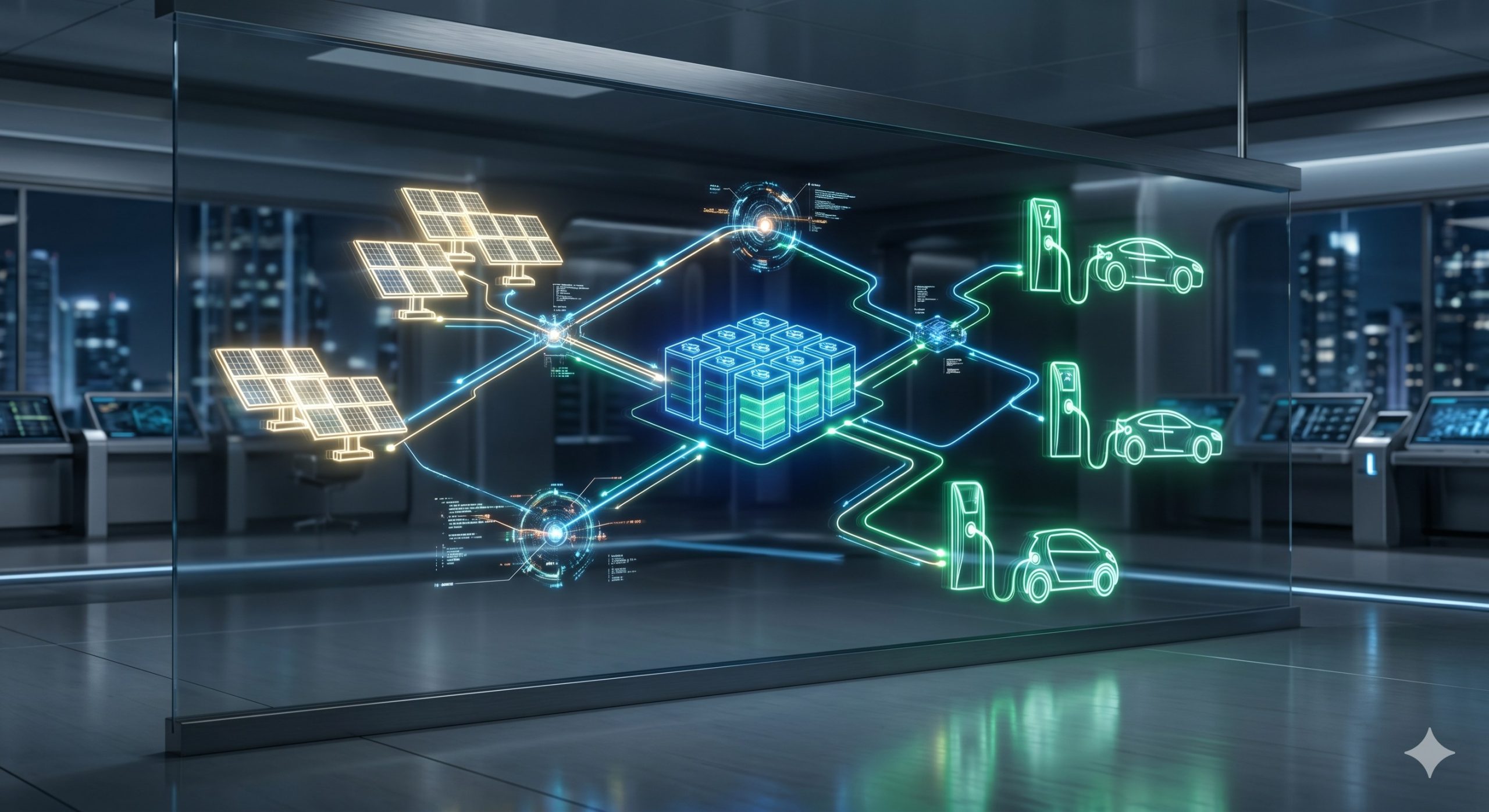

The 720kW Power Cabinet excels in high-load scenarios: automotive manufacturing plants, data centers, and electric vehicle (EV) supercharging hubs. When paired with a solar canopy, it forms a complete energy independence ecosystem, reducing grid dependency by up to 85% during peak tariff periods. Its seamless transition capability (≤20ms) makes it ideal for micro-grids in industrial parks or islands, ensuring power stability during grid faults. For diesel generator replacement, the cabinet’s instant ramp rate (30MW/s) outperforms traditional gensets.

EV Supercharging Stations & High-Demand Response

Integrating the 720kW Power Cabinet with 360kW dual-gun chargers eliminates demand spikes. The system’s peak shaving capability lowers fixed demand charges by over 40%, while providing backup power for critical loads. For utility demand response (DR) programs, the 720kW unit offers a 4-hour discharge window (at rated power), enabling C&I sites to monetize grid flexibility.

Turnkey Delivery & Local O&M Linkage

Our global supply network guarantees sea shipping with full insurance and door-to-door tracking. Every unit includes a commissioning kit and remote EMS setup via our cloud platform. Local O&M partners are pre-vetted in 15 countries (including USA, Germany, Australia, and Brazil) to provide on-site repairs, firmware updates, and warranty replacements within 48 hours. The 10-year performance warranty covers linear capacity retention (≥70% at EOL) and parts availability.

Frequently Asked Questions

What is the typical payback period for this 720kW unit?

Based on a 2-cycle per day arbitrage model (peak/off-peak spread of $0.15/kWh) and demand charge reduction, the payback period is 3.5 to 4.5 years. This excludes any subsidies or demand response incentives. Our ROI calculator is available upon request.

Does the 10-year warranty cover the liquid cooling system?

Yes, the comprehensive 10-year performance warranty includes the sealed liquid cooling loop, pumps, and control logic, provided the coolant is replaced every 5 years and annual flow checks are performed by an authorized local O&M partner.

Is the 720kW Power Cabinet UL 9540 or IEC 62619 certified?

Yes. The system is certified to UL 9540 (Edition 3) and UL 9540A for thermal runaway, as well as IEC 62619, IEC 62477, and UN38.3 for transport. Certificates are available for customs clearance and utility interconnection filing.

How many units can be paralleled? What is the maximum system size?

Up to 20 units can be paralleled via the high-speed CAN bus, achieving a 14.4MW/28.8MWh system. The EMS master supports SCADA integration and third-party controllers via Modbus TCP/IP.

What is the MOQ and lead time for global delivery?

MOQ is 1 unit (FOB main port). Standard lead time is 30-35 days for 1-5 units, and 45 days for container orders (20+ units). Air sample delivery is available in 10 days.
