Wholesale Supply: 215kWh / 100kW C&I Energy Storage System Supplier | Commercial BESS with Liquid Cooling | Global Delivery

Product Summary

Designed for top-tier commercial and industrial (C&I) energy storage distributors and project developers, this model is a fully integrated cabinet-level Battery Energy Storage System (BESS). Supporting a robust 100kW continuous output with a 215kWh usable capacity, the unit combines high-density Tier-1 LFP (LiFePO4) cells with a sophisticated smart liquid cooling system. This guarantees an extended service life and minimal degradation, making it an ideal choice for peak shaving, load shifting, and backup power in demanding industrial environments.

Why Choose This System

Unmatched ROI & Total Cost of Ownership (TCO) – The Sourcing Advantage

When evaluating capital equipment for energy storage, the total cost of ownership is critical. We combine high-performance engineering with a direct factory supply chain to deliver a superior Levelized Cost of Storage (LCOS). This cabinet is engineered for over 6,000 deep cycles at 90% DoD, ensuring decades of reliable service. The integrated liquid cooling system not only enhances safety but also actively manages cell temperatures, improving round-trip efficiency by up to 5% compared to air-cooled equivalents. For distributors and EPCs, this means a more compelling financial model for your clients. Furthermore, we back every system with a comprehensive 10-Year Performance Warranty, ensuring your investment remains protected.

Designed for Global Project Deployment

This system is built to meet the rigorous demands of global projects. It comes fully certified with UL 9540 and IEC 62619, removing barriers for international installation. Supported by our global logistics network, we ensure reliable sea shipping and delivery to major ports worldwide. For post-installation peace of mind, our global network of local O&M partners provides rapid-response service and technical support, guaranteeing maximum system uptime.

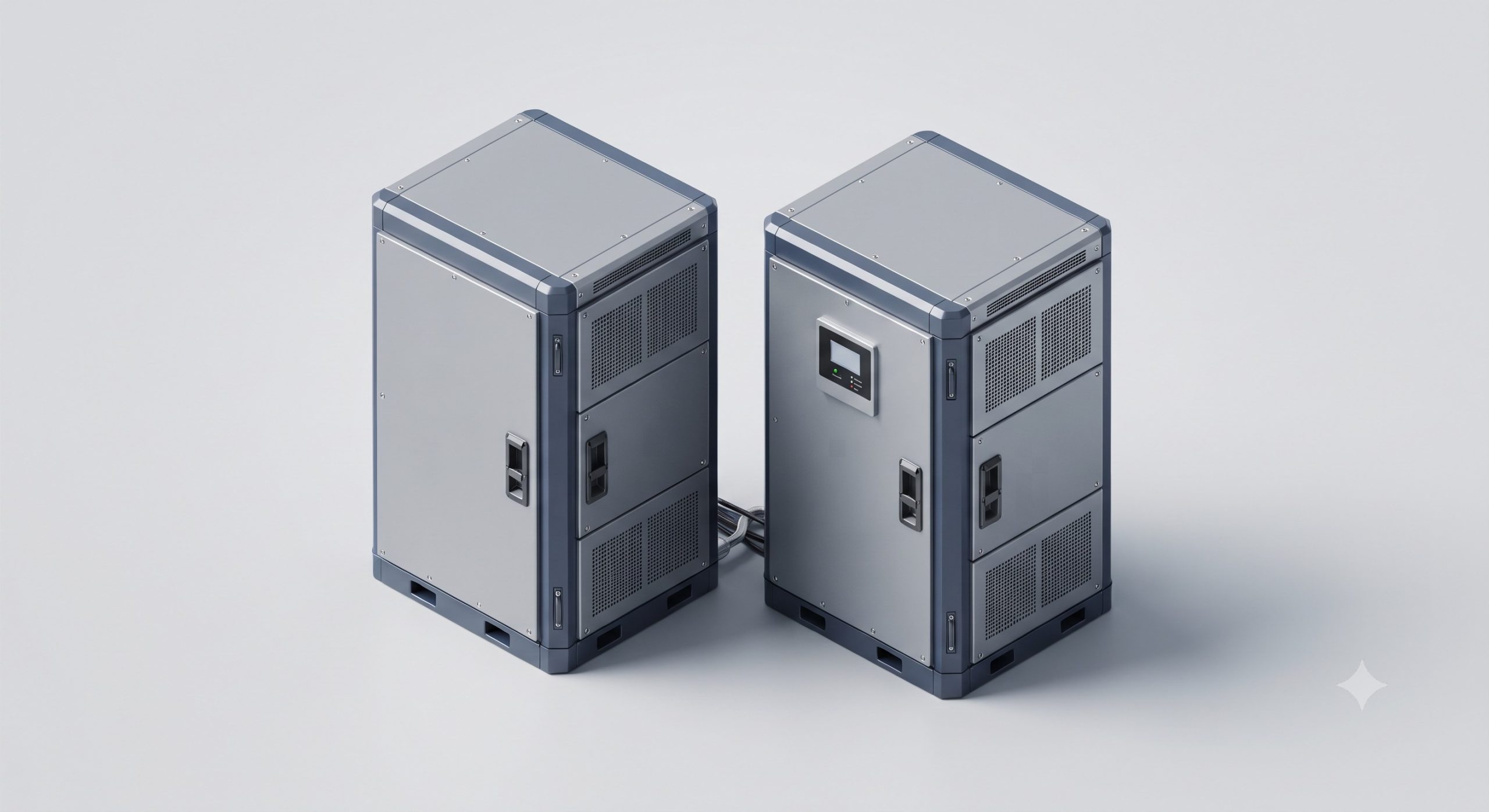

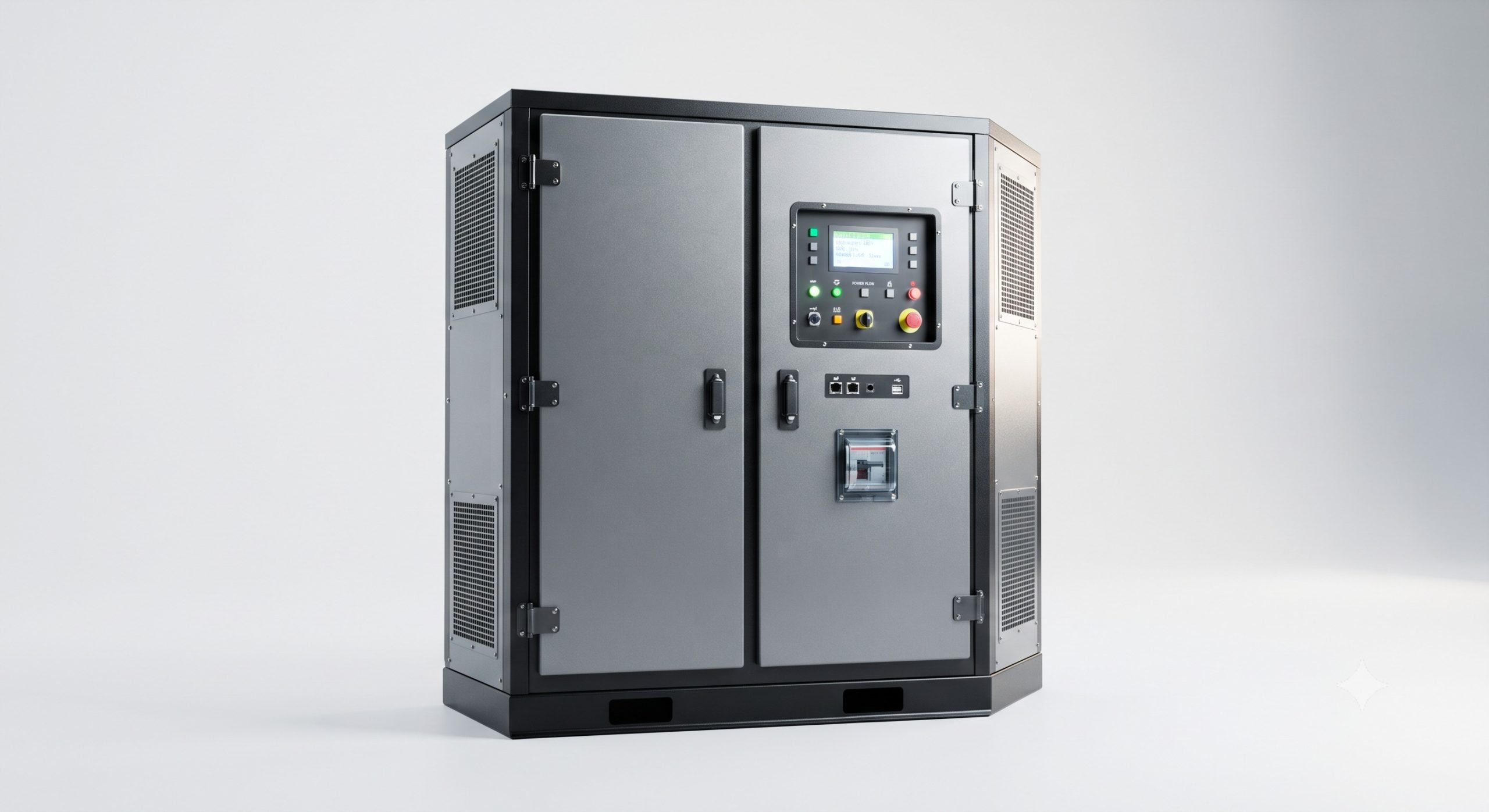

Product Overview & Safety Architecture

The system is housed in a robust, IP55-rated outdoor-rated cabinet, designed to withstand harsh environments. At its core, it utilizes A-grade prismatic LFP cells known for their inherent thermal stability and long life. The multi-layered safety architecture includes: 1) An active cell-balancing Battery Management System (BMS) that monitors voltage, current, and temperature at the cell level. 2) A fully integrated Fire Suppression System (aerosol-based) that is automatically triggered upon detection of thermal runaway. 3) A high-performance Power Conversion System (PCS) that provides seamless on/off-grid switching and supports black-start capabilities.

Technical Specifications

Beneath the sleek exterior lies a powerhouse of industrial-grade engineering. Our engineering team has meticulously validated every component to ensure compatibility and performance in the most rigorous commercial applications. We invite you to review the core specifications that define this industry-leading BESS solution. This datasheet forms the bedrock of our performance guarantee, ensuring that each unit delivered meets the high standards required for your C&I projects. All ratings are based on a nominal testing environment of 25°C (77°F) and are subject to our standard factory testing protocols.

Technical Feature	Specification
Model Capacity / Power	215 kWh / 100 kW
Battery Chemistry	Tier-1 LFP (LiFePO4), A-Grade Prismatic Cells
Cooling / Thermal Control	Intelligent Liquid Cooling System
Round-trip Efficiency	Up to 92% (DC/DC, @25°C)
Cycle Life	> 6,000 Cycles @ 90% DoD
System Voltage	600V – 800V DC
Protection Rating	IP55 (Outdoor Rated)
Safety Certifications	UL 9540, UL 1973, IEC 62619, CE
BMS / EMS Communication	Modbus TCP/IP, CAN Bus
Dimensions (W x D x H)	1200mm x 800mm x 2100mm
Gross Weight	Approx. 2,200 kg
Warranty	10-Year Performance Warranty

Application Scenarios

Optimizing Industrial Parks and Manufacturing Plants

This 215kWh/100kW BESS unit is designed for high-consumption facilities. It mitigates the impact of high demand charges (peak shaving) by powering down battery reserves during peak tariff periods, delivering substantial monthly savings. It also provides a reliable backup power source to protect critical operations from grid instability. The system’s ability to participate in frequency regulation and grid services transforms a cost center into a potential revenue stream.

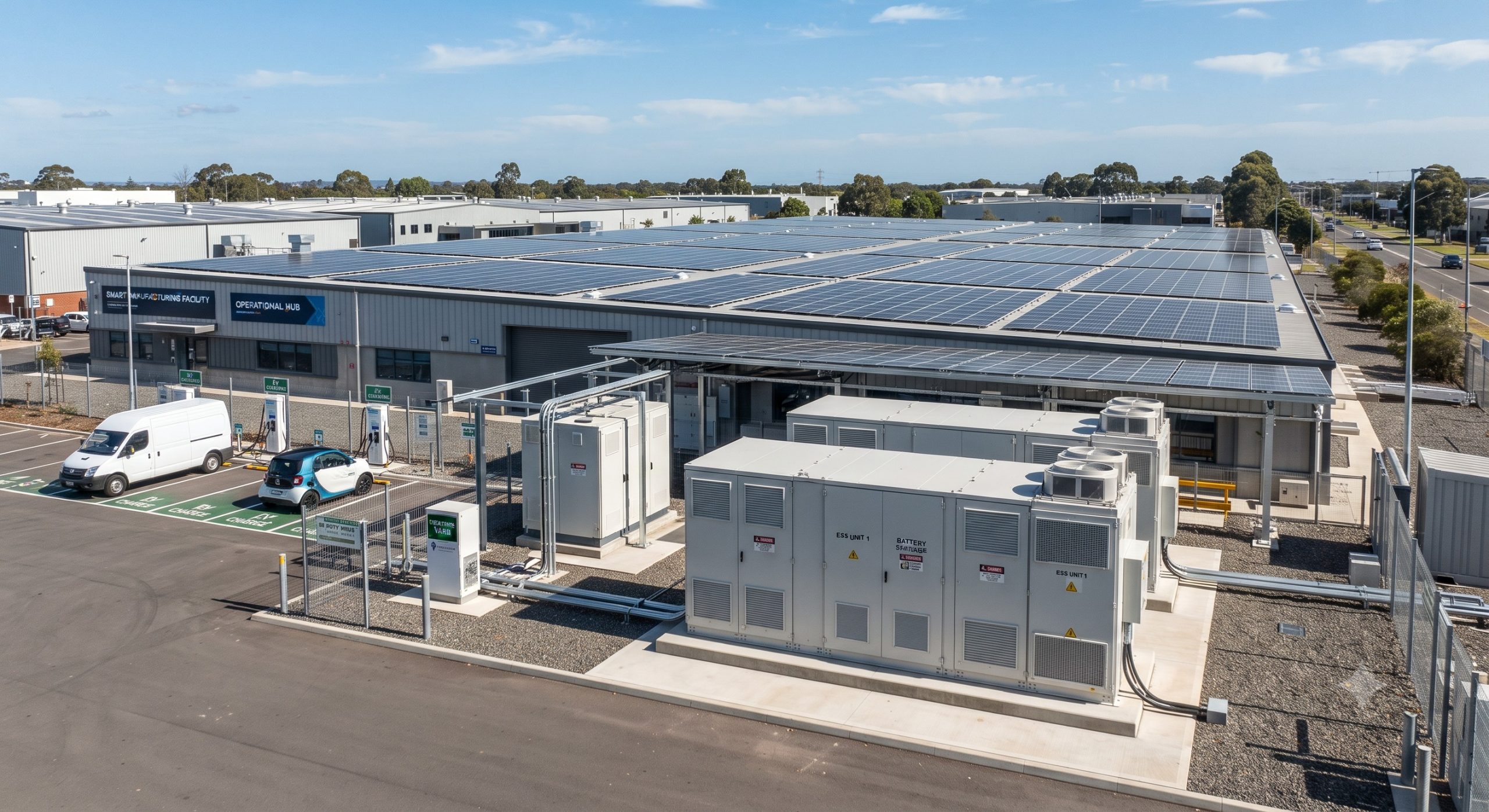

Integrated PV-Storage-Charging for EV Supercharging Stations

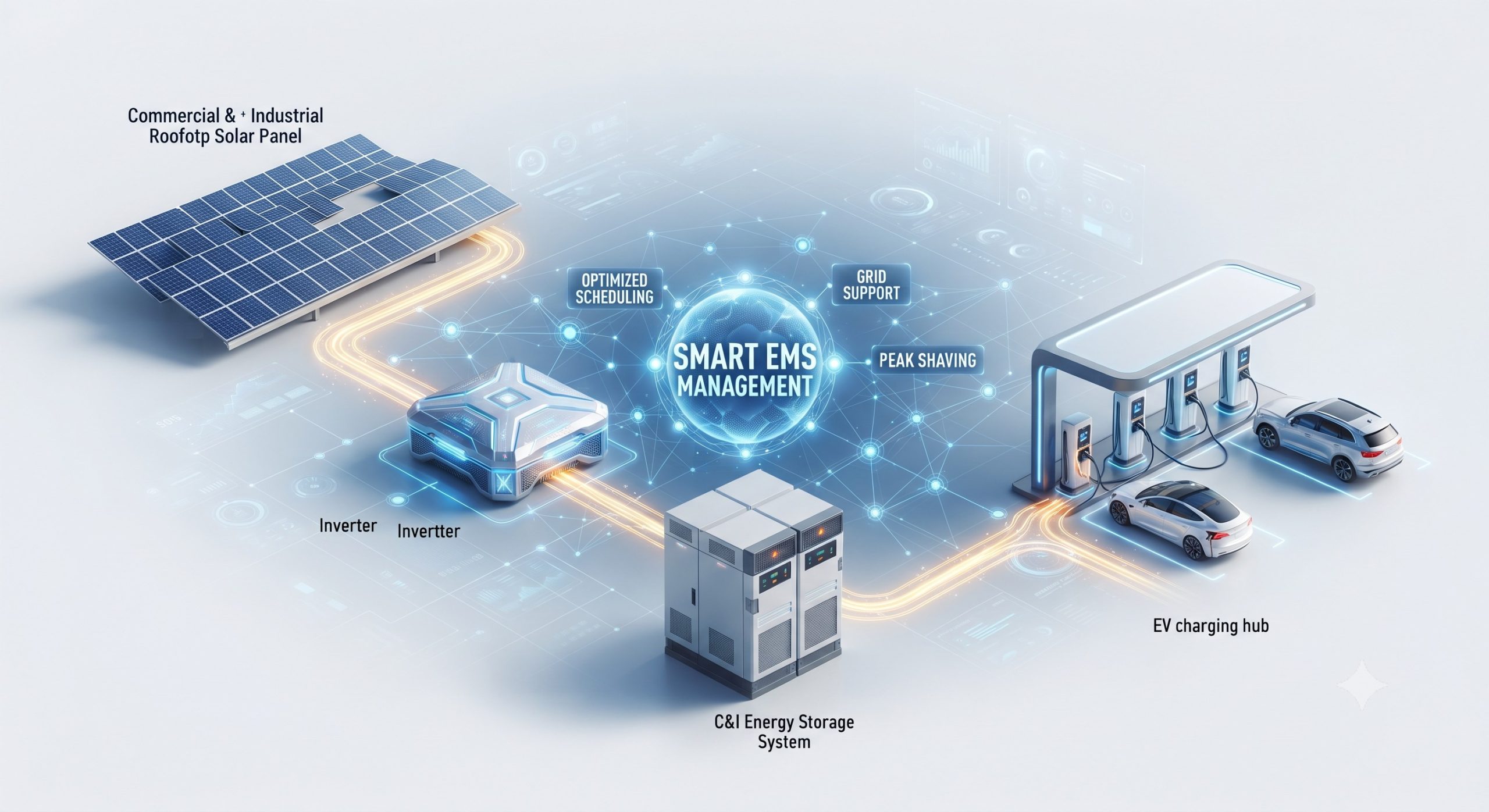

As a turnkey supplier, we provide the complete ecosystem. This storage cabinet directly couples with PV canopies, storing solar energy for later use. In an EV charging scenario, it acts as a powerful buffer, allowing fast-charging capabilities without incurring massive peak demand penalties from the grid. The 100kW output is ample for supporting multiple 150kW+ DC fast chargers, effectively leveling the load curve.

Supply Assurance & Global Delivery Network

Our competitive advantage is rooted in our secure supply chain and massive manufacturing capacity. As a volume manufacturer, we offer the most competitive C&I energy storage pricing without compromising on quality. This model is designed for efficient container shipping (20ft/40ft HC), and with our strategic partnerships with major shipping lines, we guarantee FOB/CIF delivery options to virtually any global destination. Lead times are consistently optimized, ensuring your projects stay on schedule.

Frequently Asked Questions

What is the estimated lead time for a wholesale order?

For standard wholesale orders (MOQ 5 units), the estimated lead time is 25-30 business days from order confirmation. This includes factory acceptance testing (FAT) and final quality assurance checks. Expedited shipping options are available.

What does the 10-Year Performance Warranty cover?

The warranty guarantees that the system will retain at least 70% of its initial rated capacity after 10 years of operation or a defined number of cycles, whichever comes first. It also covers all defects in materials and workmanship, ensuring long-term project viability.

Is this system compatible with my existing PV array or diesel generator?

Yes, the system is designed for seamless AC coupling, making it compatible with virtually all standard PV inverters and generator transfer switches. Our EMS software manages the hybrid power flow intelligently.

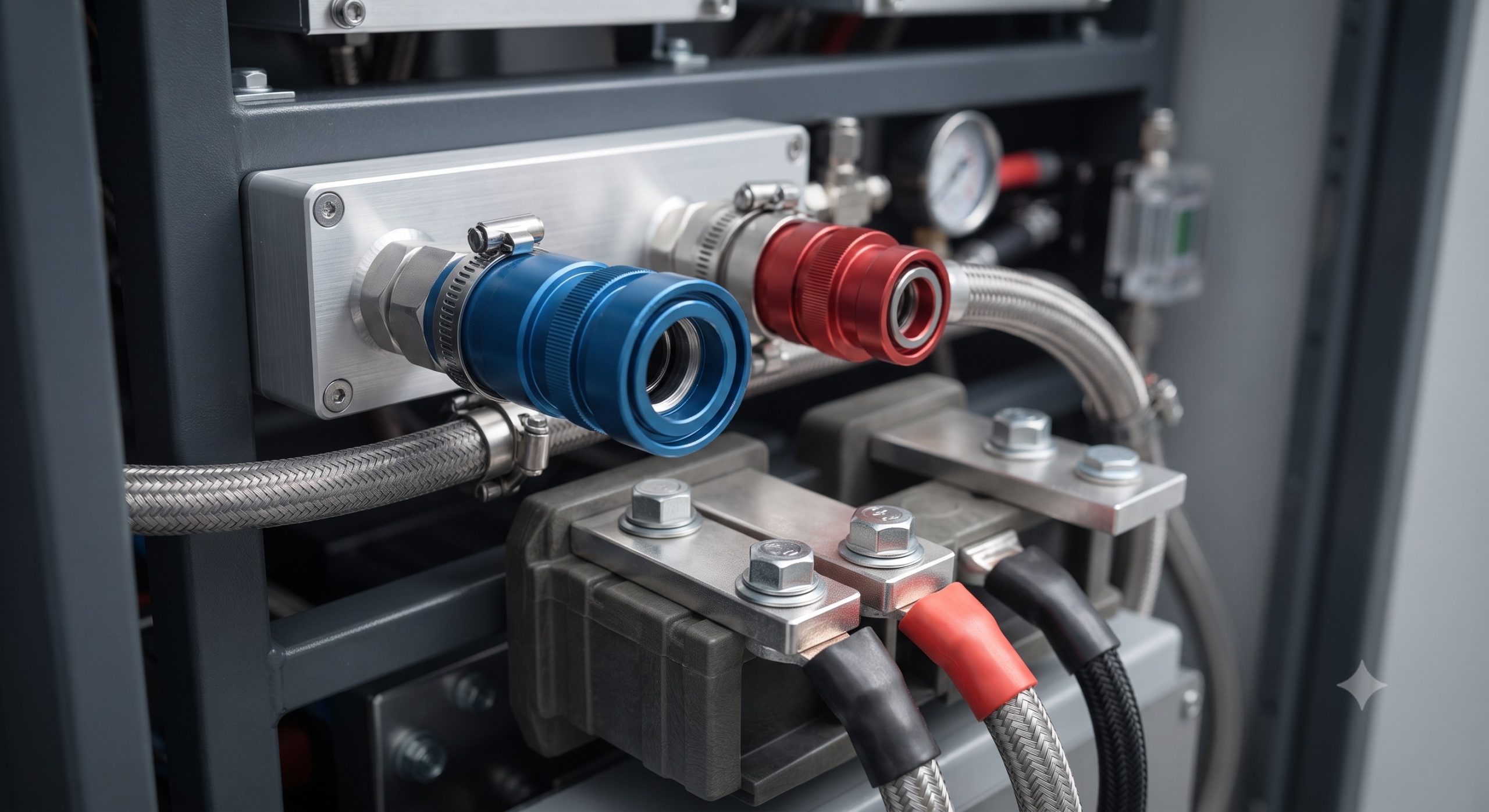

How does the liquid cooling system work and what is its advantage?

The smart liquid cooling system circulates a non-conductive, thermally efficient fluid directly through cold plates attached to the battery modules. This maintains a consistent cell temperature, drastically reducing the risk of hotspots, enhancing cycle life, and improving overall energy efficiency by up to 8% compared to air-cooled systems.

What after-sales technical support is available?

We provide comprehensive technical support, including remote system monitoring and diagnostics. For on-site issues, we utilize our network of Local O&M partners to ensure rapid resolution, minimizing downtime and safeguarding your energy assets.
