UL 9540 & IEC Certified BESS: Container BESS with PCS integrated | Safe Energy Independence
Wholesale Container BESS with PCS integrated for your commercial projects. Features Tier-1 LFP cells, liquid cooling, and EMS dispatch. Maximize ROI with turnkey global delivery.
Product Summary

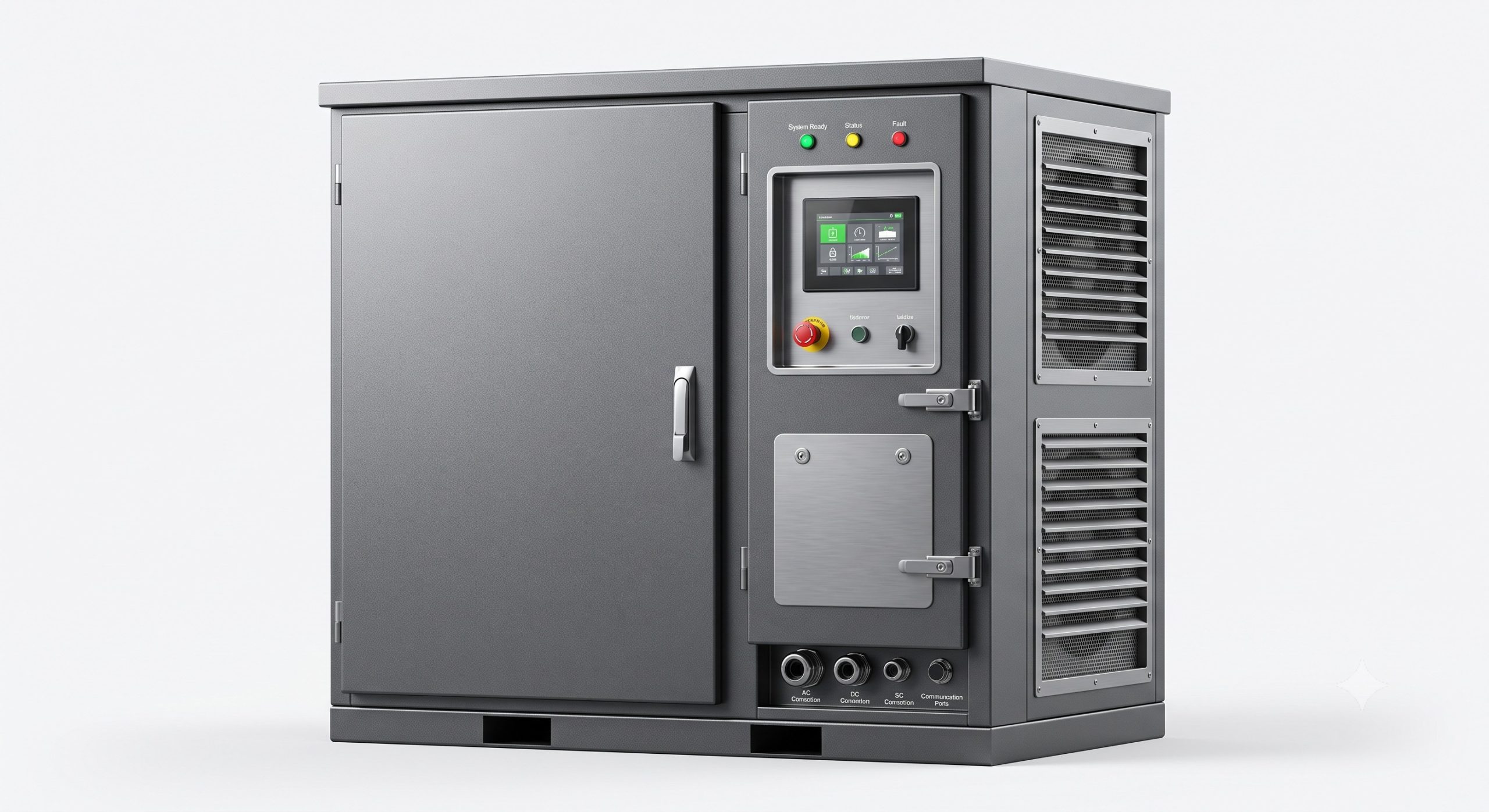

Introducing the Container BESS with PCS integrated, a fully integrated, utility-grade energy storage solution designed for the most demanding commercial and industrial (C&I) applications. This turnkey system combines high-capacity Tier-1 LFP batteries, a bi-directional power conversion system (PCS), and an advanced liquid thermal management system within a rugged, IP54-rated container. Engineered for maximum peak shaving ROI and seamless grid independence, this unit is the ideal hardware foundation for EV supercharging hubs, micro-grids, and high-load industrial parks. Backed by a 10-Year Performance Warranty and global O&M support, this is the definitive choice for project developers seeking bankable, long-term assets.
Why C&I Sourcing Chooses This Container BESS
This system is engineered to deliver an exceptional Levelized Cost of Storage (LCOS) by combining high round-trip efficiency with long cycle life. The integrated PCS and BMS create a single, streamlined point of responsibility, minimizing installation complexity and maximizing operational reliability. Project developers and EPCs will recognize the immediate value in its standardized, prefabricated design, which drastically reduces on-site commissioning time and associated costs.
- Superior ROI: Designed for maximum peak shaving and demand charge reduction, delivering a rapid payback on capital investment.
- Proven Bankability: Utilizes Tier-1 LFP cells, ensuring top-tier safety, long cycle life, and a robust 10-Year Performance Warranty.
- Turnkey & Scalable: A complete PV-Storage-Charging solution ready for parallel connection, allowing for seamless capacity expansion.
- Global Deployability: Supported by international shipping protocols and a network of local O&M partners for rapid, on-the-ground service.
Product Overview & Safety Architecture
At the heart of the Container BESS is a sophisticated, multi-layered safety architecture that goes far beyond simple component protection. The system integrates an advanced, four-level Battery Management System (BMS) that monitors every cell’s voltage, temperature, and state of health in real-time. This is coupled with a multi-level fire suppression system, utilizing aerosol and gas-based extinguishing agents to contain any thermal event rapidly and effectively. The smart liquid cooling system maintains optimal cell temperature, enhancing performance and ensuring a consistent, extended service life.
The integrated PCS provides seamless grid-forming and grid-following capabilities, enabling smooth transitions between on-grid and off-grid modes. The entire system is housed in a robust, IP54-certified container, making it suitable for a wide range of harsh environmental conditions without the need for additional shelter. This holistic approach to safety and integration positions the Container BESS with PCS integrated as a reliable pillar for any mission-critical energy infrastructure.
Technical Specifications
| Technical Feature | Specification |
|---|---|
| Battery Chemistry | Tier-1 LFP (LiFePO4) |
| Cooling / Thermal Control | Smart Liquid Cooling (with active chiller) |
| Nominal Energy Capacity | 1 MWh / 2 MWh / 5 MWh (Configurable) |
| Nominal Power (PCS) | 500kW / 1MW / 2.5MW (Configurable) |
| System Voltage | 800V DC / 1500V DC |
| Round-trip Efficiency | > 92% (at 0.5C, 25°C) |
| Cycle Life | ≥ 6,000 cycles @ 80% DoD |
| Safety & Compliance | UL 9540, UL 1973, IEC 62619, UN38.3 |
| Enclosure Protection | IP54 / IP65 (Optional) |
| Dimensions (L x W x H) | 10ft / 20ft / 40ft Container (Customizable) |
| Fire Suppression | Aerosol + Gas-based multi-level system |
| Communication Protocols | CAN, RS485, Modbus TCP/IP |
Application Scenarios
EV Supercharging Stations
This BESS is specifically optimized to support the high-power, rapid-charging demands of modern EV supercharging stations. It effectively buffers the grid connection, preventing costly peak demand spikes and enabling a larger number of high-power chargers to operate on a limited grid connection. This translates to faster charger deployment, lower infrastructure costs, and a more stable charging experience for end-users.

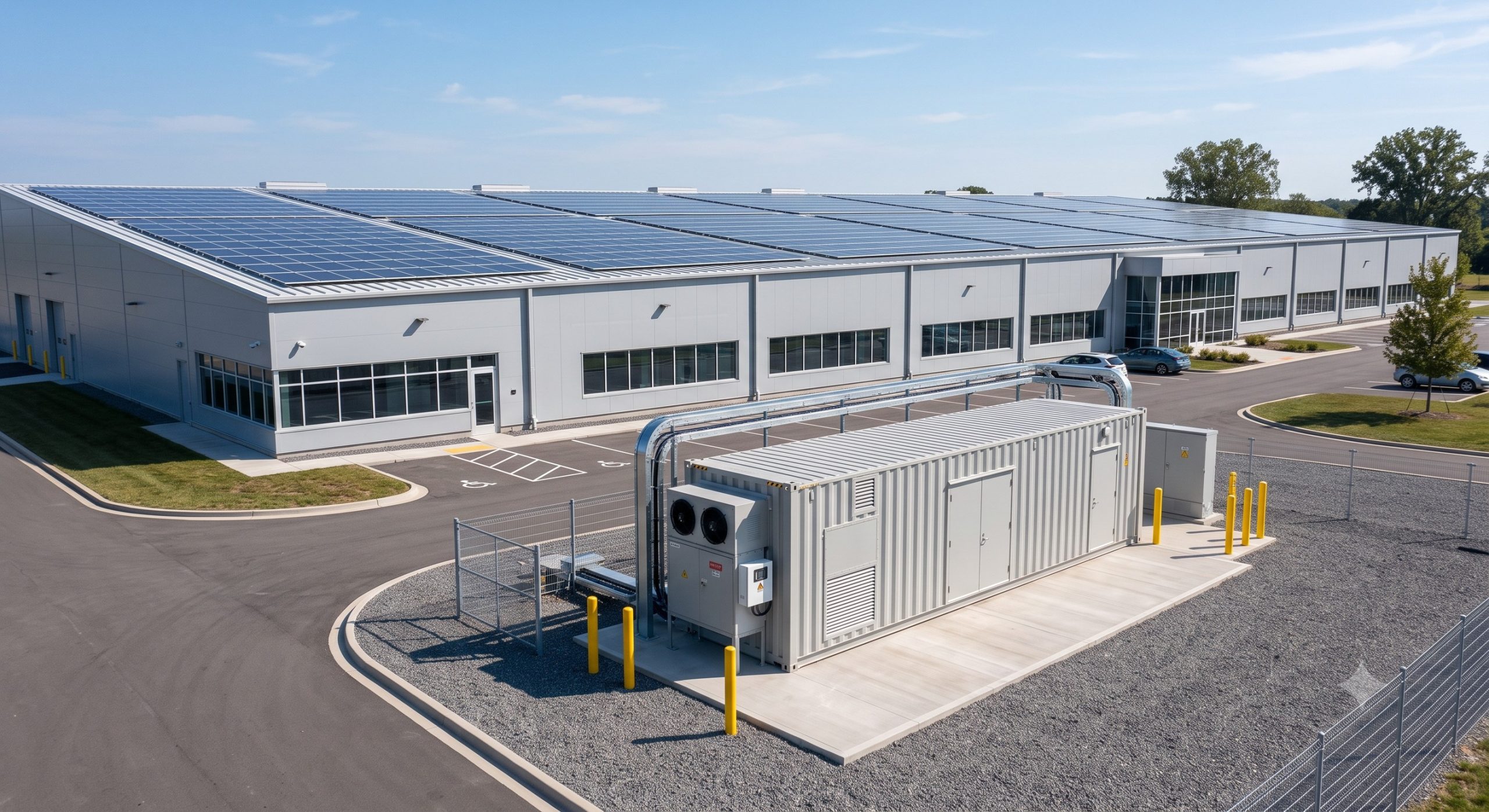

Industrial & Commercial Parks
Manufacturing facilities, data centers, and large commercial properties can leverage this system to achieve significant energy cost savings through peak shaving and load shifting. It provides a reliable backup power source to protect against grid instability and outages, ensuring business continuity. Furthermore, the system is integral to micro-grid configurations, enabling facilities to achieve energy independence and optimize on-site solar PV generation.
Frequently Asked Questions
- What is the estimated lead time for a Container BESS with PCS integrated order?
- Standard lead times are typically 8-12 weeks from order confirmation, depending on the specific configuration and volume. Expedited shipping options are available for urgent projects. We partner with leading global logistics providers to ensure secure, timely, and insured delivery to any major port worldwide.
- How does the 10-Year Performance Warranty work?
- Our 10-Year Performance Warranty guarantees that the system will maintain a minimum specified energy throughput capacity (e.g., 70% of nameplate capacity) over the warranty period. This is not just a product warranty; it is a performance guarantee, providing absolute confidence in the long-term financial returns of your investment.
- Can this system be integrated with existing solar PV installations?
- Yes, the Container BESS with PCS integrated is designed as a core component of a complete PV-Storage-Charging solution. Its sophisticated EMS and bi-directional PCS allow for seamless integration with both new and existing solar arrays, optimizing self-consumption and grid feed-in strategies.
- What is the total cycle life of this system?
- At a 0.5C charge/discharge rate and 25°C ambient temperature, the Tier-1 LFP cells are rated for over 6,000 cycles at 80% Depth of Discharge (DoD) before reaching end-of-life criteria. This translates to over 15 years of daily cycling, ensuring a long and productive asset life.
- How is local O&M support structured?
- We provide a comprehensive global support network. Our remote monitoring service operates 24/7, while our local partners are stationed in key regions to provide on-site diagnostics, preventative maintenance, and rapid emergency response, minimizing system downtime and protecting your revenue stream.
