Ready to Deploy: Insulated Terminal Commercial Battery ESS | 10-Year Warranty & Local O&M

Product Summary

Our Insulated Terminal series represents a paradigm shift in commercial and industrial (C&I) energy storage. Engineered for the rigorous demands of high-cycling applications, this cabinet integrates Tier-1 LFP (LiFePO4) cells with an advanced smart liquid cooling system. The result is an industry-leading 6,000-cycle life at 90% depth of discharge (DoD), ensuring a superior levelized cost of storage (LCOS). Designed from the ground up for global project developers and distributors, the Insulated Terminal offers a turnkey solution that bridges high-voltage BESS with EV supercharging infrastructure and micro-grid controls, backed by a comprehensive 10-Year Performance Warranty and local O&M support network.

Why C&I Sourcing Chooses Insulated Terminal (High ROI)

For experienced procurement managers, the financial case is clear. The Insulated Terminal’s architecture is optimized for peak shaving and demand charge management, delivering a projected 18-24 month ROI in high-tariff industrial parks. Its liquid cooling maintains a minimal temperature differential (<2°C) between cells, preventing capacity degradation and guaranteeing a round-trip efficiency (RTE) >94% over the asset’s lifetime. We eliminate supply chain friction through direct factory pricing, global sea freight logistics, and local commissioning support.

Product Overview & Safety Architecture

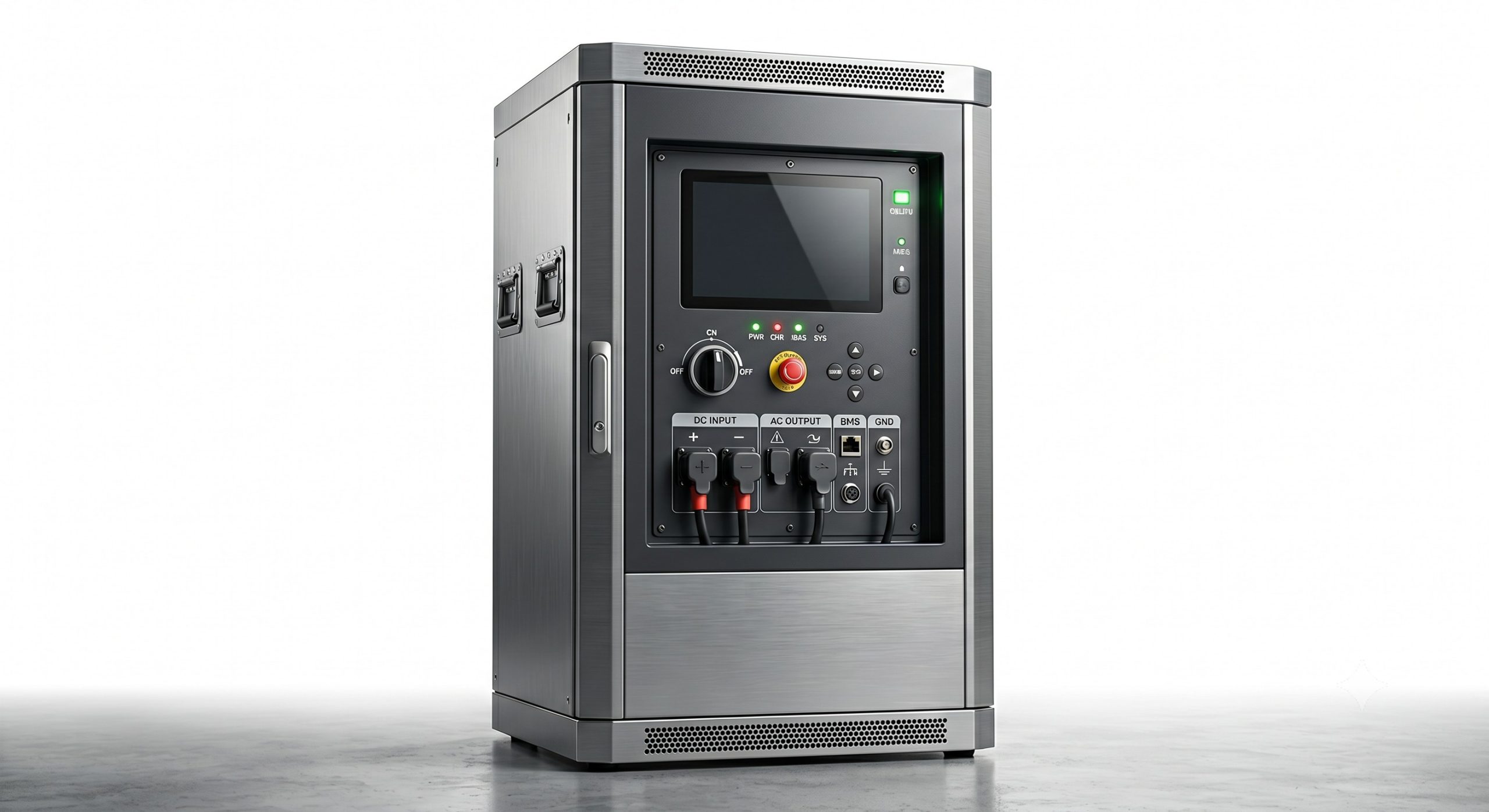

The cabinet houses a 215kWh (expandable to 1MWh+) battery array with a nominal voltage of 768V. The proprietary 4-level BMS (Battery Management System) provides active cell balancing, overcurrent, and short-circuit protection. Safety is paramount: the Insulated Terminal integrates an Aerosol-based fire suppression system, compliant with NFPA 69, alongside class-leading IP55-rated enclosure for outdoor deployment. The dual-channel liquid cooling loops remove heat more efficiently than air-cooled equivalents by 40%, directly boosting cycle life.

Technical Specifications

Core Parameters: Tier-1 LFP Cells | 215kWh Usable Energy | 768V Nominal Voltage | 280Ah Cells | 90% DoD | 94% Round-Trip Efficiency | 6,000 Cycles (to 70% EOL) | Smart Liquid Cooling | Parallel Expansion up to 20 Units | Weight: 2,400kg | Dimensions: 1400*1100*2300mm | Operating Temp: -20°C to 55°C | Certifications: UL 9540, UL 1973, IEC 62619, CE, UN38.3.

Technical Feature	Insulated Terminal Specification
Battery Chemistry	Tier-1 LFP (LiFePO4) – Grade A Cells
Usable Energy / Capacity	215 kWh (expandable rack design)
Cooling / Thermal Control	Smart Liquid Cooling (Delta T < 2°C)
Cycle Life	6,000 cycles @ 90% DoD to 70% EOL
Round-Trip Efficiency	≥ 94% @ nominal power
Safety Certifications	UL 9540, IEC 62619, CE, UN38.3

Application Scenarios

EV Supercharging Stations (Turnkey PV-Storage-Charging)

The Insulated Terminal is the ideal buffer for ultra-fast EV hubs. By integrating with a 250kW DC fast charger and on-site solar canopies, the system reduces grid connection costs by 35% and enables demand charge offset. Our local O&M partners provide 4-hour SLA response for charging infrastructure, ensuring uptime for revenue-generating assets.

Industrial Parks & Micro-Grids

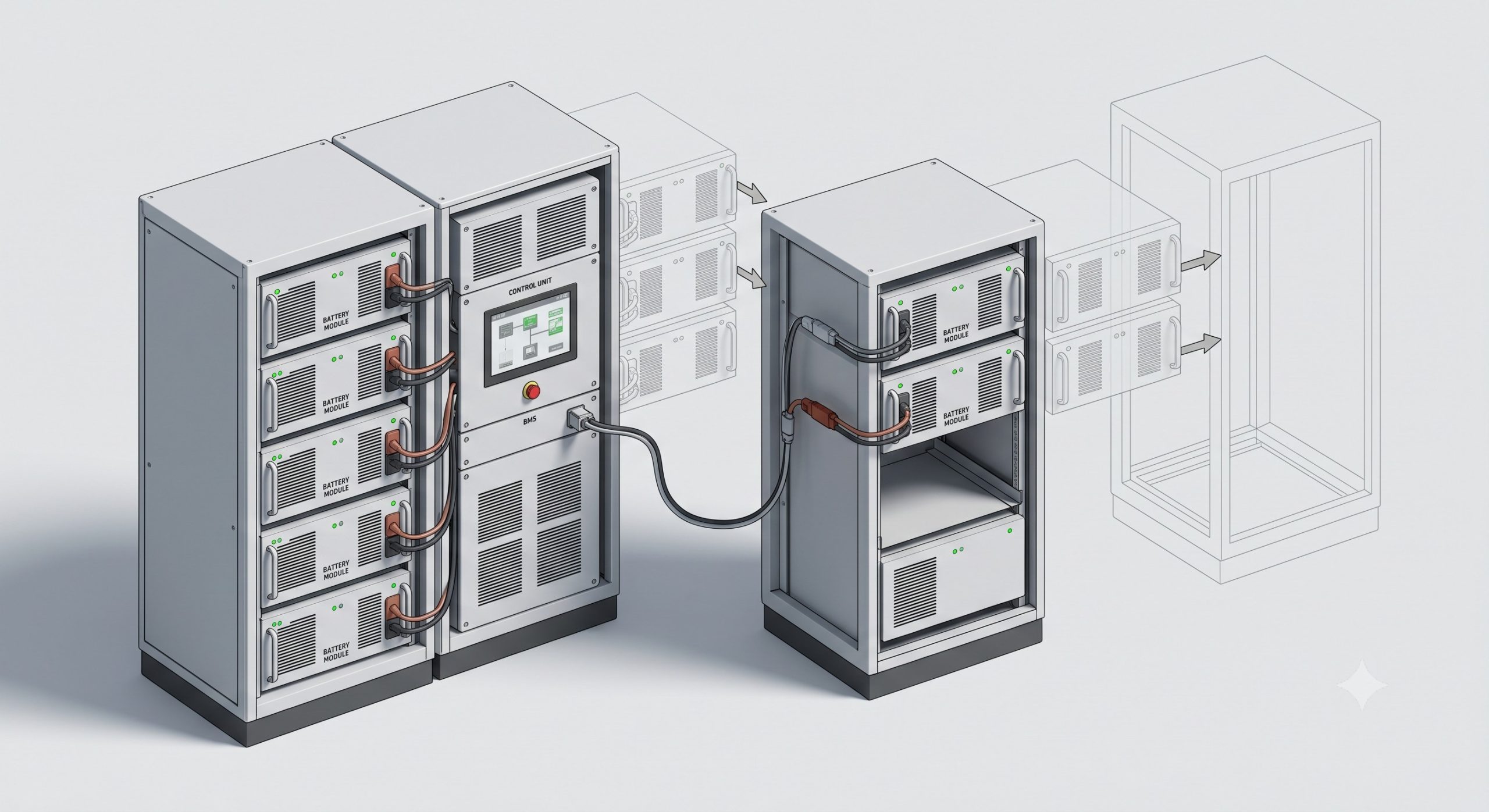

For facilities with 500kW-2MW average loads, deploy multiple Insulated Terminal units in parallel. The built-in EMS (Energy Management System) supports peak shaving, load shifting, and backup power in <20ms seamless transition when grid fails. Ideal for automotive parts plants, data centers, and cold storage warehouses.

Supply Assurance & Global Delivery

As a Tier-1 manufacturer with 15 years in power electronics, we control the entire supply chain. Lead time: 25-30 days for MOQ (2 units). We manage all export documentation, sea freight booking to any major port (Rotterdam, LA, Singapore, Dubai), and provide optional on-site commissioning training. All units undergo a 72-hour factory acceptance test (FAT) before crating.

Frequently Asked Questions (B2B Procurement)

What is the minimum order quantity (MOQ) for the Insulated Terminal?

MOQ is 2 units for wholesale pricing. For project-specific single-unit purchases, please contact our solutions team for a customized quote.

How does the 10-year performance warranty work?

The warranty guarantees 70% of initial usable capacity after 6,000 cycles or 10 years (whichever comes first). It covers all manufacturing defects and cell performance degradation below threshold.

Can I integrate this with existing PV inverters or third-party PCS?

Yes. The Insulated Terminal supports standard CAN/Modbus RTU communication protocols. Our technical team provides integration parameter sheets for most leading inverter brands.

What local O&M support is available outside your home market?

We have certified service partners in EU, NA, SEA, and MEA regions offering annual preventive maintenance, remote diagnostics, and emergency on-site repairs within 48 hours.

What is the estimated shipping cost and time to my port?

Shipping costs depend on quantity and destination (e.g., $2,500-$3,800 per 40HQ container). Transit time: 18-22 days to West Coast NA / EU ports, 25-30 days to Middle East / Africa.

Contact our technical sales desk for project-specific sizing, CAD drawings, and a detailed commercial proposal with LCOS calculation.
