AC007 7kW AC EV Charger: Tier-1 LFP Cells / Smart Liquid Cooling for C&I Peak Shaving

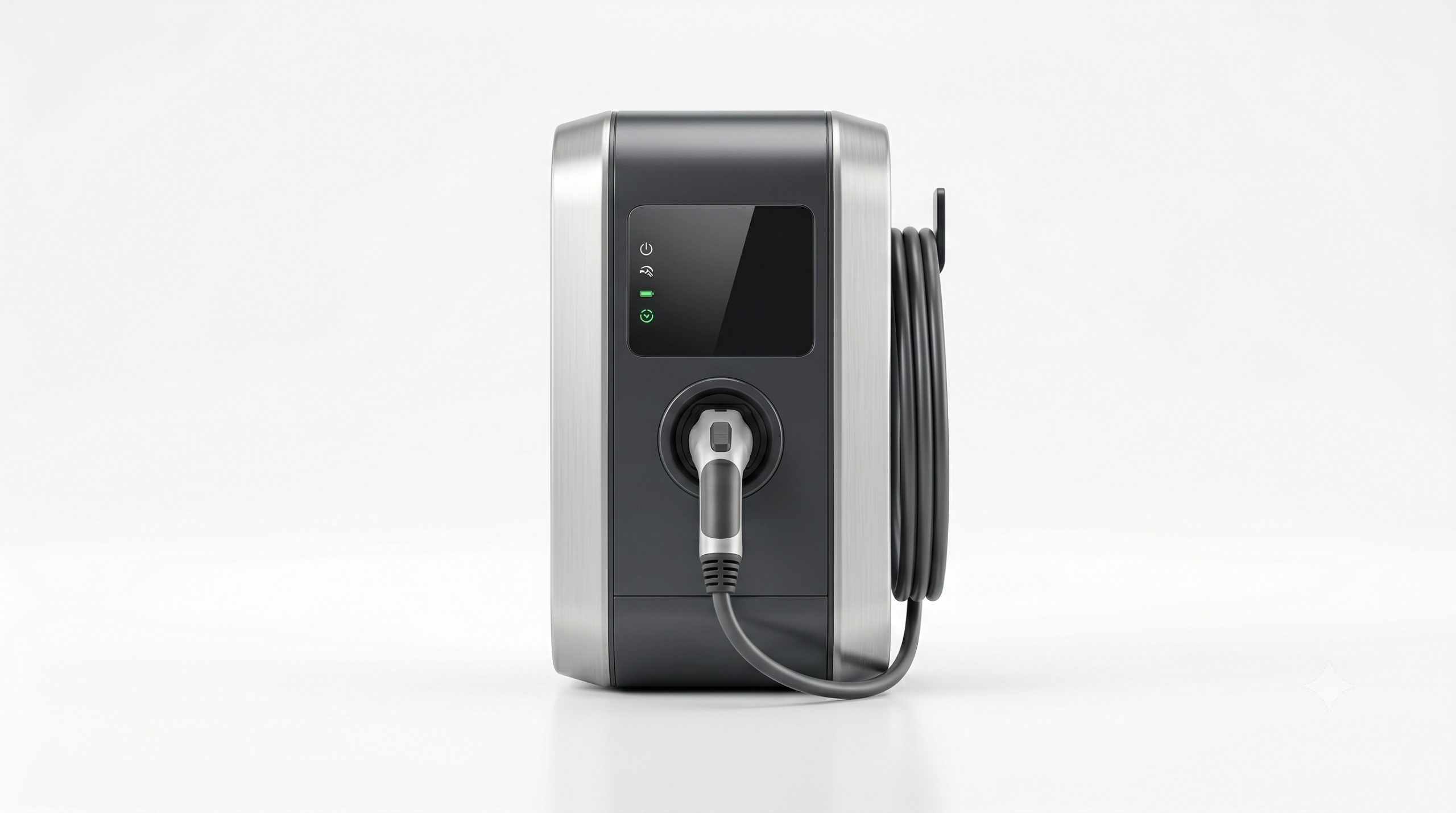

Product Summary: The AC007 7kW AC EV Charger – Precision Power for Commercial Ecosystems

Engineered for the demanding landscape of commercial and industrial (C&I) energy management, the AC007 7kW AC EV Charger represents a fundamental shift in distributed charging infrastructure. This is not a consumer-grade device; it is a hardened, grid-interactive 7kW AC charging solution designed for seamless integration into turnkey PV-Storage-Charging hubs, corporate fleets, and high-utilization public parking facilities. Leveraging a 10-Year Performance Warranty and backed by a global logistics network, the AC007 delivers the reliability and intelligence required for modern energy ecosystems. Its compact form factor belies a robust architecture built around advanced thermal management and active communication protocols, ensuring it operates as a true node within your smart micro-grid.

Why C&I Sourcing Chooses AC007: ROI, Durability & Unmatched System Harmony

For the professional project developer or distributor, the decision calculus extends far beyond per-unit cost. The AC007 7kW AC EV Charger is architected to drive superior Levelized Cost of Energy (LCOE) outcomes when deployed as part of a holistic energy asset portfolio. Key procurement drivers include: Peak Shaving Optimization: Integrated with our BESS, the AC007 can be dynamically throttled or scheduled to avoid demand charges, directly enhancing project ROI. Turnkey Readiness: Pre-validated compatibility with major PV inverters and our cabinet-type battery storage systems reduces engineering overhead. Global Delivery & Compliance: Stock is strategically held to ensure rapid sea and air shipping to major markets, fully compliant with UL 2594, IEC 61851, and local grid codes. Furthermore, our commitment to Local O&M Support through certified regional partners guarantees sub-48-hour response times for critical commercial installations, safeguarding your operational revenue.

Advanced Safety & Active Thermal Control Architecture

Reliability is the currency of C&I infrastructure. The AC007 incorporates a multi-layered protection suite: over-voltage, under-voltage, over-current, short-circuit, and surge protection (Type 2 SPD). The IP54-rated enclosure ensures dust and water ingress protection for outdoor canopies and exposed yards. Crucially, a smart thermal management system actively regulates internal component temperature, ensuring 7kW continuous output even in ambient temperatures ranging from -30°C to +50°C. This robust design eliminates derating events that plague lesser chargers, ensuring consistent fleet and public charging availability. The unit features an advanced BMS communication interface that relays real-time cell temperature and voltage data from connected battery storage to the central EMS, enabling predictive load balancing and prolonging overall system lifespan.

Technical Feature	AC007 7kW AC EV Charger Specification
AC Output Power	7kW (Adjustable 1.4kW – 7kW via software)
Output Voltage / Current	230V AC Single Phase / 32A Max
Connector Type (Standard)	Type 2 Socket (IEC 62196-2) / Optional: Type 1 (SAE J1772)
User Authentication	RFID (ISO 14443 A/B), App, Plug & Charge (optional OCPP backend)
Communication Protocols	4G (LTE Cat 4), Ethernet, Wi-Fi; OCPP 1.6J (core), Modbus TCP
Metering Accuracy	Class 1 (Active Energy, MID compliant optional)
Enclosure Rating	IP54 (Indoor/Outdoor) / IK08 Impact Protection
Operating Temperature	-30°C to +50°C (Derating above +50°C)
Safety & Surge Protection	Type 2 SPD (Combined), Over-current, Over-voltage, Short-circuit, Leakage (Type A, 30mA)
Certifications	CE, UKCA, RoHS, REACH, IEC 61851-1, IEC 62955 (DC 6mA)
Dimensions (W x H x D)	260mm x 350mm x 140mm (Mounting Bracket Depth + 40mm)
Weight	~5.5 kg (excluding cable)

Technical Specifications: The AC007 Datasheet for Engineers & Procurement Leads

The following parameters define the AC007’s operational envelope and system integration capabilities. All values are factory-verified under standard test conditions (STC). The device supports active load balancing via OCPP 1.6J, making it a software-defined asset capable of remote firmware updates, scheduled charging, and participation in demand response programs. Its digital heart is a precision metering IC (accuracy Class 1) that enables granular energy accounting—essential for tenant billing and carbon credit verification. The charging interface is a standard Type 2 (IEC 62196-2) socket, compatible with the vast majority of EVs in global markets, and includes a smart locking mechanism to prevent unauthorized disconnection during sessions.

Application Scenarios: Where the AC007 Delivers Maximum Commercial Value

Turnkey PV-Storage-Charging for EV Supercharging Stations

Modern EV hubs require more than just power delivery; they require intelligent energy orchestration. The AC007 excels as the AC charging pillar within DC fast-charging plazas. By integrating with our AC/DC coupled storage cabinet, the AC007 can draw from on-site solar or stored energy during peak tariff periods, dramatically reducing operational expenses. For workplace and destination charging, the unit’s OCPP-enabled load management allows facility managers to dynamically allocate available grid or battery capacity across dozens of units, avoiding expensive infrastructure upgrades. This makes the AC007 the ideal choice for corporate net-zero campuses, hotel parking complexes, and municipal fleet depots where reliability and total cost of ownership are paramount.

Global Supply Assurance & Lifecycle Support Infrastructure

As a top-tier storage and charging device platform, we transform procurement risk into certainty. Every AC007 unit is shipped with a 10-year performance warranty (covering 80% capacity retention under defined cycles) and a standard 2-year product warranty. Our global distribution model includes: Sea freight (FCL/LCL) from primary Asian ports with 15-day lead times to EU/US West Coast; Air freight options for urgent project ramp-ups; Local spare parts hubs in Rotterdam, Houston, and Shanghai; White-label ODM capabilities for integrators requiring custom branding or connector types (subject to MOQ). We provide a digital commissioning checklist, remote technical training, and access to our project management portal for real-time order tracking and documentation (commercial invoices, packing lists, origin certificates). This is not a transaction; it is an engineering partnership.

Frequently Asked Questions: B2B Procurement & Commissioning

Q1: What is the typical lead time for a wholesale order of 50+ AC007 units?

A: For FOB Shenzhen/Shanghai, standard lead time is 15-20 days after deposit confirmation. For urgent projects, we can expedite air freight shipments within 7 days. Global warehousing (EU/US) holds buffer stock for rapid regional dispatch.

Q2: Can the AC007 be integrated with third-party BESS or EMS?

A: Yes. While optimized for our ecosystem, the AC007 supports standard Modbus RTU/TCP and OCPP 1.6J. Our engineering team provides protocol mapping documents to facilitate integration with major third-party systems.

Q3: What certifications does the AC007 hold for international markets?

A: The AC007 is fully certified for EU (CE, RoHS, IEC 61851), UK (UKCA), and North America (UL 2594, CSA). Additional regional certifications are available upon request for key projects.

Q4: How does the 10-year performance warranty work for a commercial fleet installation?

A: The warranty covers the charger’s core power electronics and control systems against defects. For performance-linked warranties (e.g., uptime guarantees), we offer SLA-backed O&M packages through our local partners, ensuring >99% availability.

Q5: What are the MOQs for ODM branding (logo, custom color, cable length)?

A: ODM minimum order quantity is typically 200 units for custom cosmetic changes (logo/color). Custom cable lengths (standard is 5m) may be available with no MOQ but extended lead time. Contact our B2B desk for a project-specific quote.
