TURNKEY C&I ENERGY STORAGE SOLUTION BRIEF: DEPLOYING HYBRID INVERTER BESS COMPATIBILITY MATRIX

EXECUTIVE SUMMARY

This document serves as the definitive technical reference for the deployment of our advanced Hybrid inverter Battery Energy Storage System (BESS), with a specific focus on the comprehensive compatibility matrix that ensures seamless integration with a wide array of photovoltaic (PV) systems, grid-tied inverters, and on-site loads. Designed for commercial and industrial (C&I) applications, this platform delivers unparalleled flexibility, enabling peak shaving, load shifting, and emergency backup with optimized system efficiency. The core of this solution lies in its intelligent power management system, which dynamically communicates with and controls various power electronics, ensuring a harmonious and reliable energy ecosystem.

SYSTEM ARCHITECTURE & SAFETY

The Hybrid inverter BESS is engineered around a modular, scalable architecture. The system’s brain is a central Energy Management System (EMS) that orchestrates power flow between the PV arrays, the grid, the battery storage, and the facility’s loads. This EMS features a proprietary compatibility matrix that pre-configures communication protocols (including Modbus RTU/TCP, CAN Bus, and IEC 61850) for over 50 leading inverter and charge controller brands, significantly simplifying engineering, procurement, and construction (EPC) processes. Safety is paramount, with a multi-layered protection scheme that includes an IP54-rated cabinet, active thermal management, and cell-level fusing to mitigate electrical and thermal risks. The architecture supports both AC-coupled and DC-coupled configurations, making it adaptable to new installations and retrofit projects.

KEY FEATURES
– Seamless Inverter Compatibility: The built-in compatibility matrix includes pre-verified drivers and settings for major Tier-1 inverter manufacturers, enabling plug-and-play integration and reducing on-site commissioning time by up to 60%.
– Intelligent PV-Storage Coordination: The hybrid inverter BESS can prioritize solar self-consumption, store excess PV energy, or discharge stored power to optimize time-of-use (TOU) arbitrage, all managed via a single, user-friendly interface.
– Robust Off-Grid & Backup Capability: With a seamless switchover time of <10ms, the system provides reliable backup power to critical loads during grid outages, ensuring business continuity. - Scalable Energy Capacity: The modular design allows for parallel expansion, enabling capacity scaling from 215kWh up to several MWh to meet evolving energy demands. - Advanced Thermal Runaway Prevention: A multi-level safety system, including a dedicated Battery Management System (BMS) with cell voltage and temperature monitoring, a fire suppression system, and integrated gas detection, provides industry-leading protection. COMPLIANCE & STANDARDS The Hybrid inverter BESS has been rigorously tested and certified to meet the most stringent global safety and performance standards, ensuring bankability and ease of permitting. Key certifications include: - Safety: UL 9540 (Energy Storage Systems and Equipment), UL 1973 (Batteries), IEC 62619 (Secondary Cells), UN 38.3 (Transportation). - Grid Interconnection: IEEE 1547, UL 1741, IEC 61727, VDE-AR-N 4105. - Electromagnetic Compatibility: FCC Part 15, IEC 61000-6-2, IEC 61000-6-4. - Environmental: RoHS, REACH, CE, UKCA. The system's Fire Suppression System is designed to NFPA 70 (NEC) and NFPA 855 (ESS) guidelines. TECHNICAL SPECIFICATIONS The following section details the core technical parameters for the standard 215kWh / 372kWh C&I cabinet. For project-specific customizations, please refer to the detailed engineering datasheet or contact our technical sales team.

Parameter	Specification
Nominal Energy (per cabinet)	e.g., 215 kWh / 372 kWh
Cooling Method	e.g., Smart Liquid Cooling
Cell Chemistry	e.g., Tier-1 LFP (Lithium Iron Phosphate)
AC Output (Grid-Tied)	e.g., 100 kW / 150 kW
AC Output (Off-Grid/Backup)	e.g., 100 kVA / 150 kVA
Max. PV Input Power (DC)	e.g., 150 kWp
PV Input Voltage Range (MPPT)	e.g., 500V – 850V DC
Communication Protocols	e.g., Modbus, CAN Bus, IEC 61850
Round-Trip Efficiency	e.g., >88%
Protection Degree	e.g., IP54 (Outdoor Rated)

INDUSTRIAL DEPLOYMENT

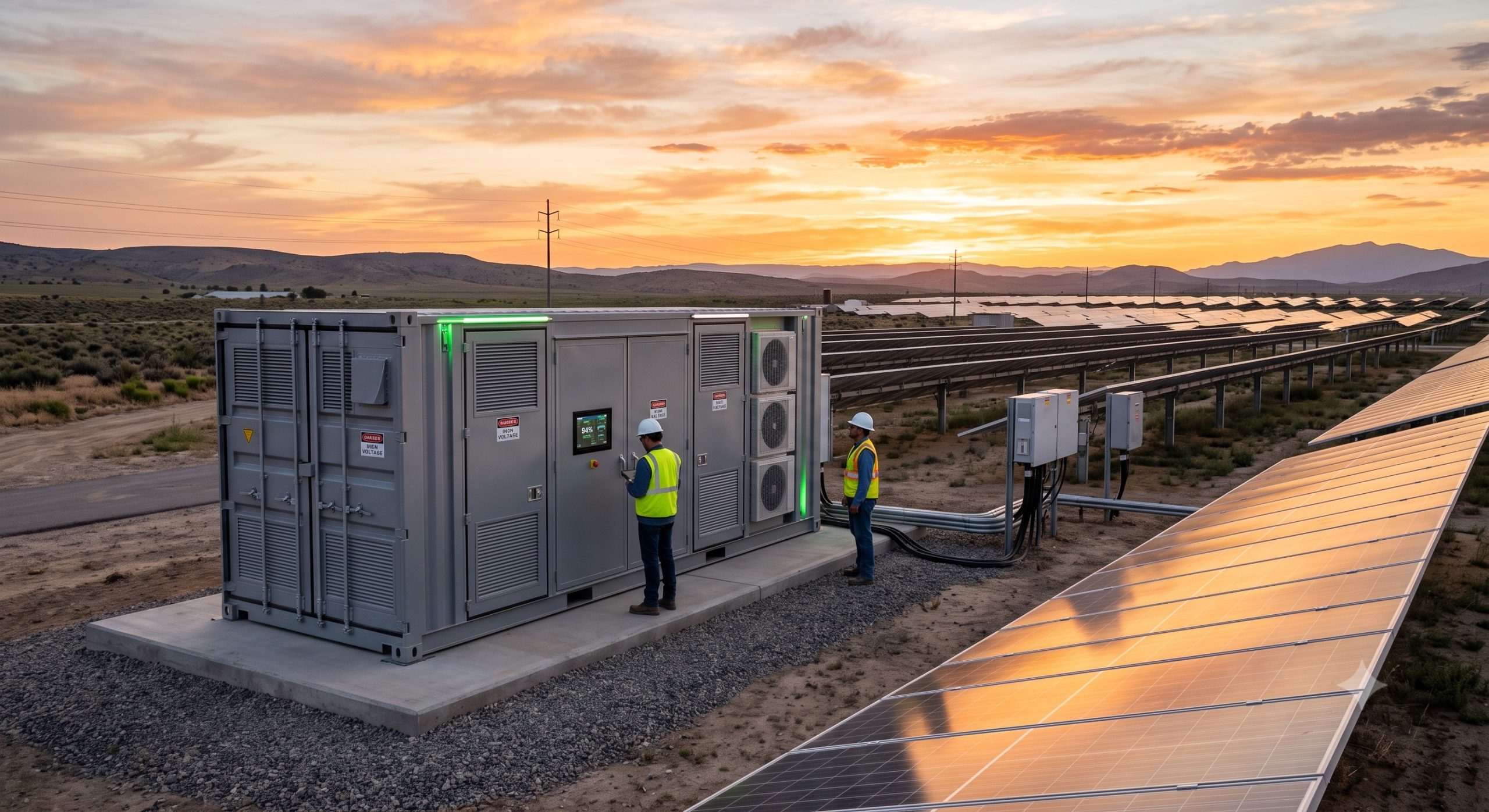

Deploying the Hybrid inverter BESS is streamlined for industrial environments. The system is housed in a robust, weatherproof outdoor cabinet, suitable for pad or rooftop installation. Key considerations for site planning include:

– Environmental: Ambient operating temperature range of -30°C to +55°C (with derating above 45°C), and a relative humidity of up to 95% (non-condensing).
– Grid Connection: The PCS supports a bi-directional grid interface for 208V, 400V, and 480V AC at 50/60Hz. A dedicated transformer may be required for medium-voltage interconnection.
– Communication: Standard communication interfaces include Ethernet, RS485, and optional 4G/5G cellular modem for cloud-based remote monitoring and over-the-air (OTA) firmware updates.
– Installation: The cabinet is designed for front-access maintenance, minimizing the required footprint and simplifying cable routing.
