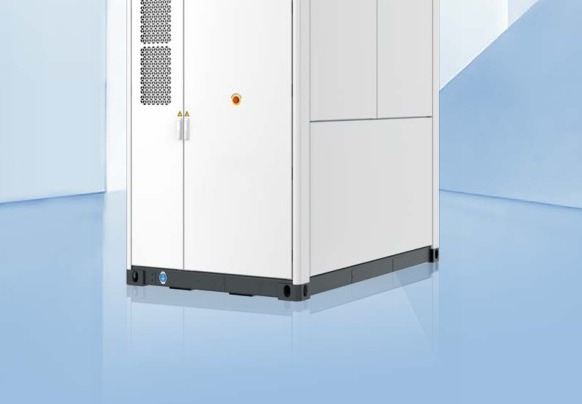

836kWh Liquid-Cooled C&I Energy Storage System
A liquid-cooled commercial and industrial energy storage system with 836kWh battery capacity and dual 210kW power channels.
- 836kWhBattery capacity
- 210kW × 2Rated power
- Full liquid coolingThermal system
- IP55Ingress protection
- -30°C ~ +50°COperating temperature
- 416S1P×2Battery configuration
System overview
System at a glance
Energy, power, battery window, grid connection, cooling, and enclosure protection in one view.
Battery architecture
Battery configuration
LFP cells arranged for this cabinet’s rated energy and voltage window.
LFP 3.2V / 314Ah
Lithium iron phosphate cell
416S1P×2
System configuration
836kWh
1123.2V ~ 1497.6V window
Thermal system
Liquid-cooling architecture
The cabinet uses liquid cooling across an outdoor-rated operating envelope.
Cooling method
Operating temperature
Electrical interface
Grid and electrical
AC connection and efficiency for project engineering.
Grid connection
| Rated grid voltage | 690V |
|---|---|
| Grid voltage range | 586.5V ~ 759V |
| Rated grid frequency | 50Hz |
| Grid frequency range | 45Hz ~ 55Hz |
Protection
Safety and protection
Enclosure, corrosion class, altitude, and certification standards for this cabinet.
Certification standards
| Standards | GB/T 36276, GB/T 34131, GB/T 34120, GB/T 34133 |
|---|
Integration
Communication
Plant-level connectivity for monitoring and control.
Engineering data
Engineering specifications
Battery & power
| Cell type | LFP 3.2V / 314Ah |
|---|---|
| System configuration | 416S1P×2 |
| Battery capacity | 836kWh |
| Battery voltage range | 1123.2V ~ 1497.6V |
| Rated power | 210kW×2 |
| Max efficiency | 90.5% |
Mechanics & environment
| Dimensions (W×H×D) | 1545 × 2900 × 2438 mm |
|---|---|
| Weight | ≤10500 kg |
| Cooling | Full liquid cooling |
| Ingress protection | IP55 |
| Operating temperature | -30°C ~ +50°C |
| Relative humidity | 0% ~ 100% |
| Max operating altitude | 3000 m |
