High-voltage stackable battery

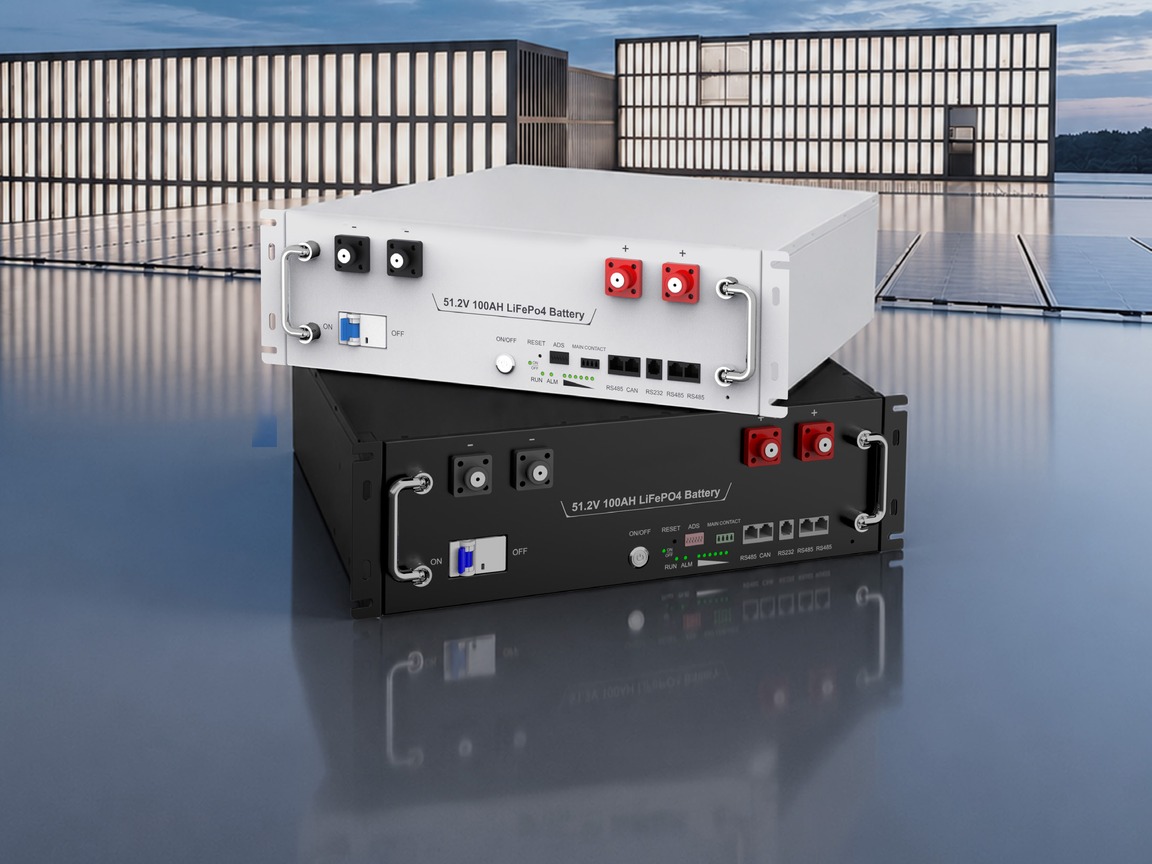

5.12kWh 51.2V Stackable LiFePO4 Energy Storage Battery
A rack-mount 51.2V / 100Ah LiFePO4 module built for stacked capacity expansion — up to 15 modules in parallel for UPS backup, PV inverter pairing, and site energy storage.
- 5.12kWhNominal energy
- 51.2VRated voltage
- 100AhNominal capacity
- ≤15Max parallel modules
Module capacity
Fixed 5.12kWh LiFePO4 module
Each rack module is a complete 5.12kWh / 100Ah energy block. Larger systems are built by paralleling identical modules.
Voltage architecture
51.2V operating window
Charge, operating, and cut-off voltages for inverter and UPS matching.
Stack / parallel configuration
From one rack module to 15 in parallel
Start with a single module, expand as a parallel bank, and scale to the documented maximum of 15 modules.
Schematic only — not product photography. Final parallel count is confirmed against inverter/UPS limits and site wiring.
Communication
Front-panel protocol ports
Documented communication interfaces on the module faceplate.
Charge / discharge limits
Current and temperature envelope
Continuous current limits and charge/discharge temperature windows from the module datasheet.
Charge current
Discharge current
Charge temperature
Discharge temperature
Installation scenarios
Documented application roles
Use cases stated in the product source — UPS rooms, PV inverter pairing, and site backup.
UPS / server rooms
Backup supply for servers and computer rooms during outages.
PV inverter pairing
Matched with photovoltaic inverters for household and small commercial storage.
Sites & security rooms
Stores, communication base stations, and security machine rooms.
Technical specifications
Module specification summary
Energy & voltage
| Nominal energy | 5.12kWh |
|---|---|
| Usable energy | 5.12kWh |
| Nominal capacity | 100Ah |
| Rated voltage | 51.2V |
| Operating voltage | 40.5–54.75V |
| Charge voltage | 58.4V |
| Low voltage cut-off | 40.0V |
Current, parallel & communication
| Standard charge current | ≤50A |
|---|---|
| Max charge current | 100A |
| Max discharge current | 100A (initial temp. ≤35°C) |
| Max parallel number | 15 pcs |
| Communication | RS485 / CAN / RS232 |
Environment & mechanics
| Charge temperature | 0–55°C |
|---|---|
| Discharge temperature | −20–55°C |
| Dimensions | 561 × 483 × 133 mm |
| Weight | 43 kg |
Related products
Adjacent real storage products

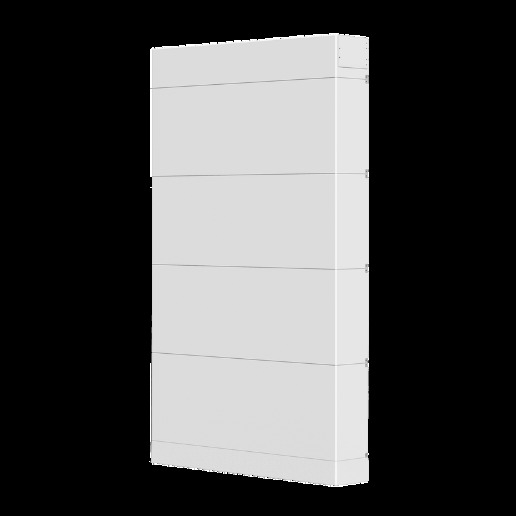

10–20kWh High-Voltage LiFePO4 Battery
Higher-voltage residential/commercial stack class — not this 51.2V rack module.

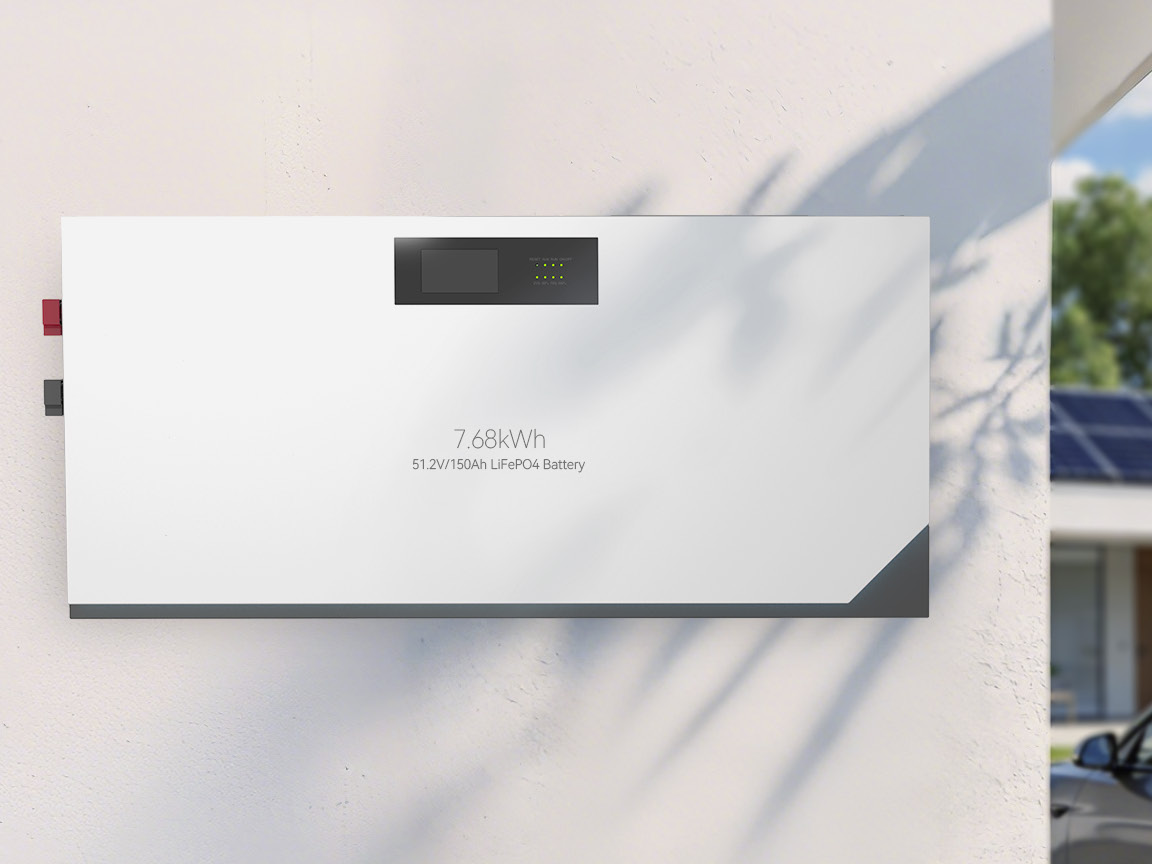

7.68kWh Ultra-Thin Wall-Mounted Home Battery
Wall-pack residential form factor — not rack-mount stack expansion.

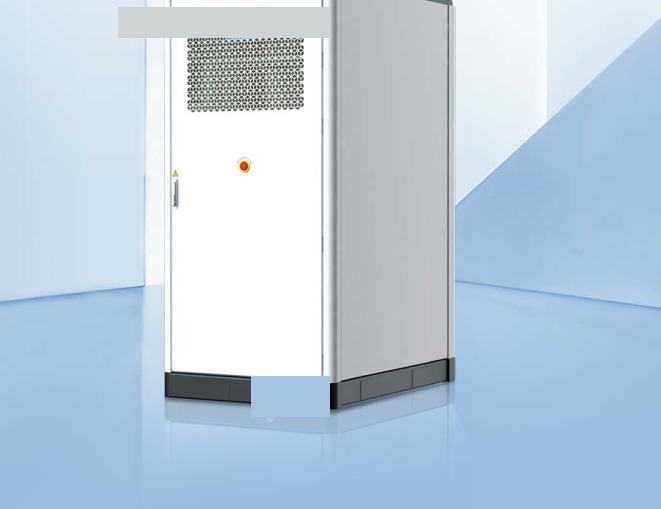

257kWh 125kW Liquid-Cooled C&I ESS
