Mobile EV charging

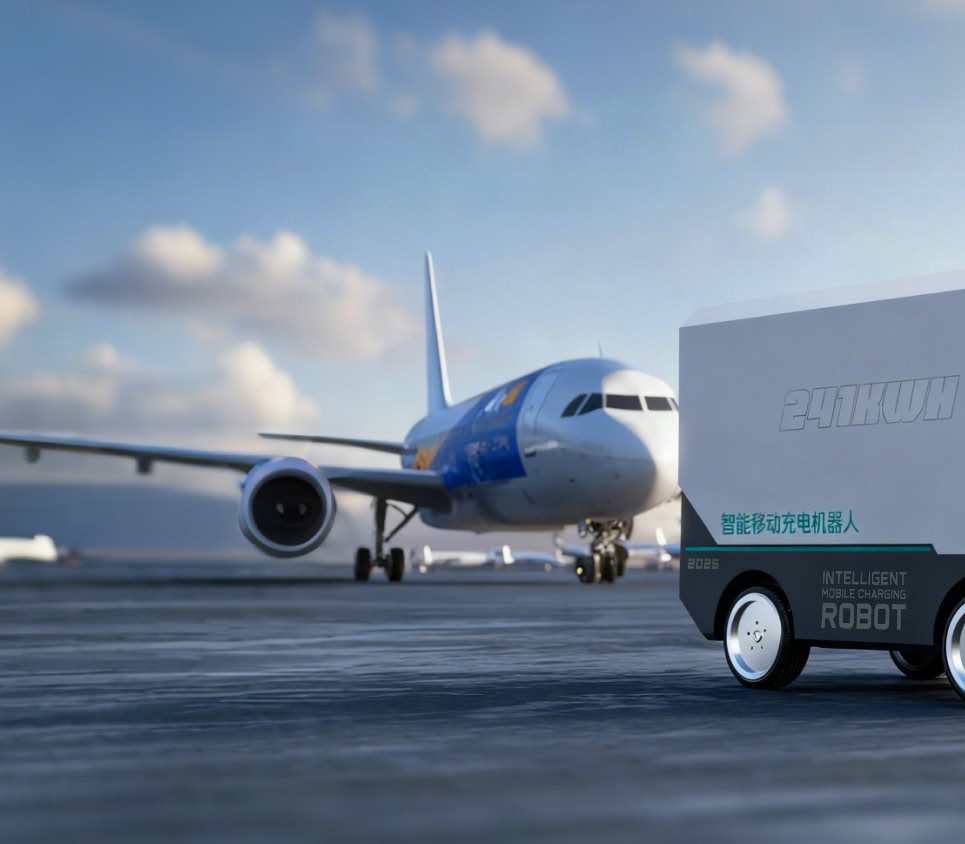

241kWh 120kW Mobile EV Charging System
A mobile charging platform with 241kWh LiFePO4 capacity and 120kW charging power for flexible-site vehicle charging.
- 241kWhBattery capacity
- 120kWRated charging power
- 150–750VCharging output voltage
- DC 250AMax charging current
Energy + power
241kWh onboard · 120kW charging
241kWhLiFePO4 capacity
120kWRated power
300–750VConstant-power window
IPX4IP grade
Deployment
Mobile deployment modes
Move charging capacity to the vehicle — low-speed autopilot or manual remote control.
Low-speed autopilotMobility mode
Manual remoteOperator control
21.5″ LCD1920×1080 display
Charging window
Voltage and current
150VOutput voltage750V
Constant-power window 300–750V · Max charging current DC 250A · Input DC 200–1000V / AC 380V optional
Control
Communications and payment
4G / 5GCommunication
APPPayment / control
QR codePayment method
OCPP 1.6Protocol
System package
Vehicle / system dimensions
2320×1325×1831L×W×H mm
≤1600kgWeight
5–50°COperating temperature
6000+Life cycles
Use cases
Flexible-site charging
Bring DC charging to locations without a fixed charger footprint — events, depots, temporary lanes, or off-grid replenishment.
Off-grid capableOnboard energy buffer
Mobile lanesMove capacity to demand
Remote ops4G/5G + app control
Technical data
Technical specifications
Charging & battery
| Rated power | 120kW |
|---|---|
| Capacity | 241kWh |
| Battery type | LiFePO4 |
| Charging output voltage | 150–750V |
| Constant power output voltage | 300–750V |
| Max charging output current | DC 250A |
| Input voltage | DC 200–1000V / AC 380V (optional) |
System
| Mobility mode | Low-speed autopilot / manual remote control |
|---|---|
| Communication | 4G / 5G |
| Payment methods | APP / QR code / OCPP 1.6 |
| Display | 21.5-inch LCD, 1920×1080 |
| IP grade | IPX4 |
| Dimensions | 2320 × 1325 × 1831 mm |
| Weight | ≤1600 kg |
